4 120Plus Digital Weight Indicator Technical Manual

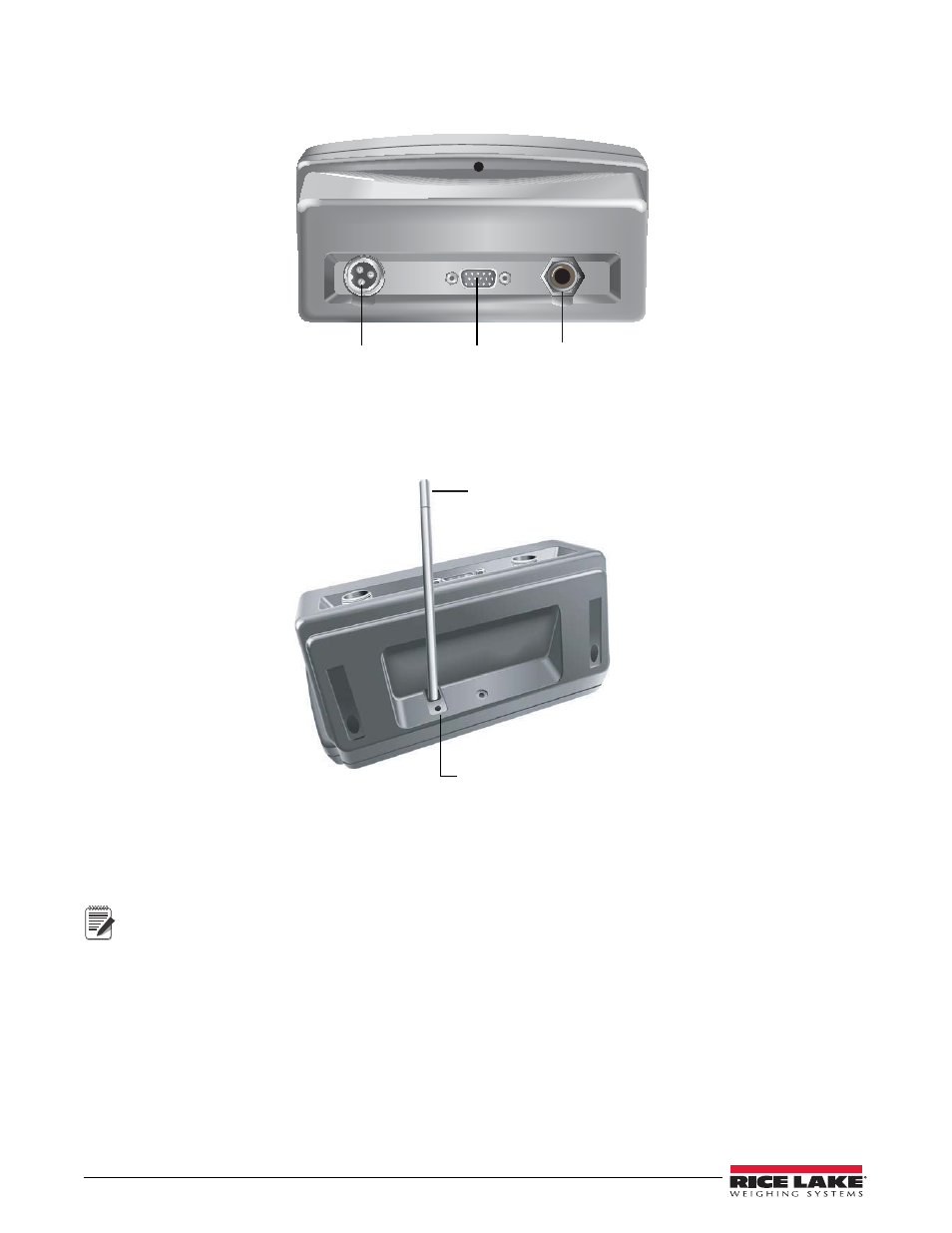

1.6 Rear View
Figure 1-3 shows the rear view of the 120 Plus.
Figure 1-3. Rear View of the 120 Plus Indicator
1.7 Setup Switch
Figure 1-4 shows the location of the setup switch.
Figure 1-4. Setup Switch Location
The setup switch can only be activated by using a thin object to press it as shown in Figure 1-4.
The setup switch is used for entering configuration and calibration modes. In this mode, different parameters of the
weight indicator can be configured and calibrated.
This operation should be performed only by a qualified technician; calibration of the indicator may be
disqualified if performed by anyone else. The indicator should always be sealed after initial configuration.
Sealing materials can be non-reversible lead seals or stickers.
Load Cell COVI Load Cell COVI Load Cell COVI
Power Communication
Port
Load Cell
The setup switch is activated by
pressing it with a thin object
Recessed setup switch
120 Plus Indicator bottom
Note
