4 serial menu, Figure 3-7. serial menu, Table 3-5. serial menu – Rice Lake 120 Plus Digital Weight Indicator User Manual
Page 24

20
120Plus Digital Weight Indicator Technical Manual
3.4
Serial Menu
The items in this menu are used to configure the serial port used for transferring data between the indicator and a
PC or printer. To configure items in this menu, press the setup switch and then the right arrow key three times.
The Serial menu is shown below:

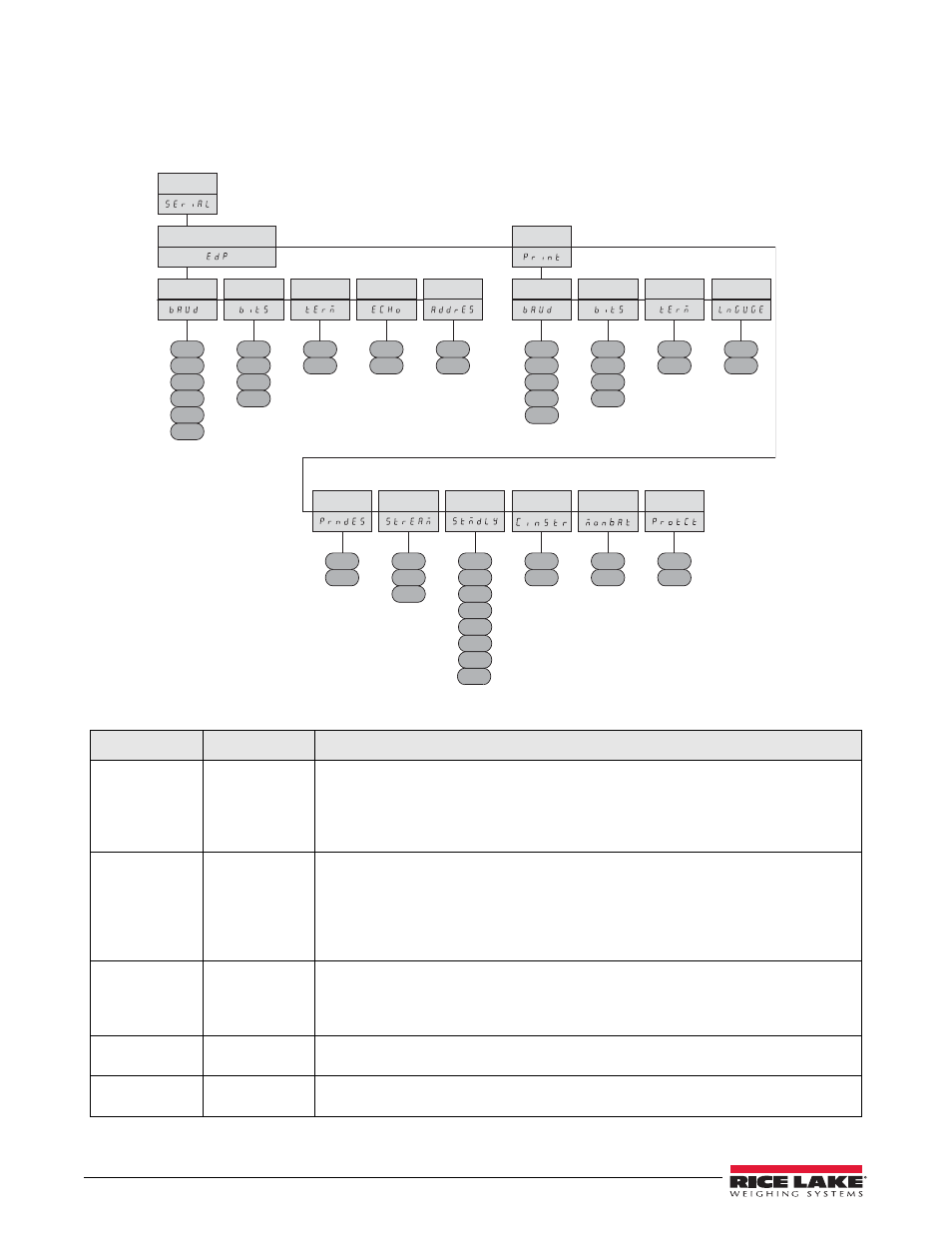

Figure 3-7. Serial Menu
Parameter
Options
Description
Electronic Data
Processing
(EDP)
Baud
Bits
Term
Echo
Addres
Specifies port settings for baud rate, data bits, termination characters, and end- of-line
delay used by the EDP port.
Baud
9600
1200
2400
4800
19200
38400
Baud Rate. Selects the transmission speed for the EDP port.
Bits
8NONE
7ODD
7EVEN
7SPACE
Selects number of data bits and parity of data transmitted from the EDP port.
Termination
CR/LF
CR
Selects the termination character for data sent from the EDP port.
Echo
ON
OFF
Specifies whether commands sent to the indicator are echoed.
Table 3-5. Serial Menu
CR
CR/LF
TERMINATION
SERIAL
1200
BAUD
38400
4800
19200
9600
2400
BITS
8NONE
70DD
7EVEN
7SPACE
TERMINATION
CR
CR/LF
ECHO
ON
OFF
1200
9600
4800
2400
BAUD
8NONE
70DD
7EVEN
7SPACE
BITS
GERMAN
ENGLIS
LANGUAGE
ELECTRONIC DATA PROCESSING
STREAM
OFF
EDP
PRN
STREAM DELAY
250MS
2SEC
1SEC
8SEC
4SEC
500MS
15SEC
ADDRESS
00
number
PROTECT
Enable
Disable
EDP
PRN
MONBAT
ON
OFF
CINSTR
ON
OFF
DATA TRANSMISSION
PORT
19200
NONE
