X To open: pull cover : outwards in the
direction of the arrow and remove it.
X To close: clip in cover : at the front of the
dashboard.
X Fold cover : inwards until it engages.

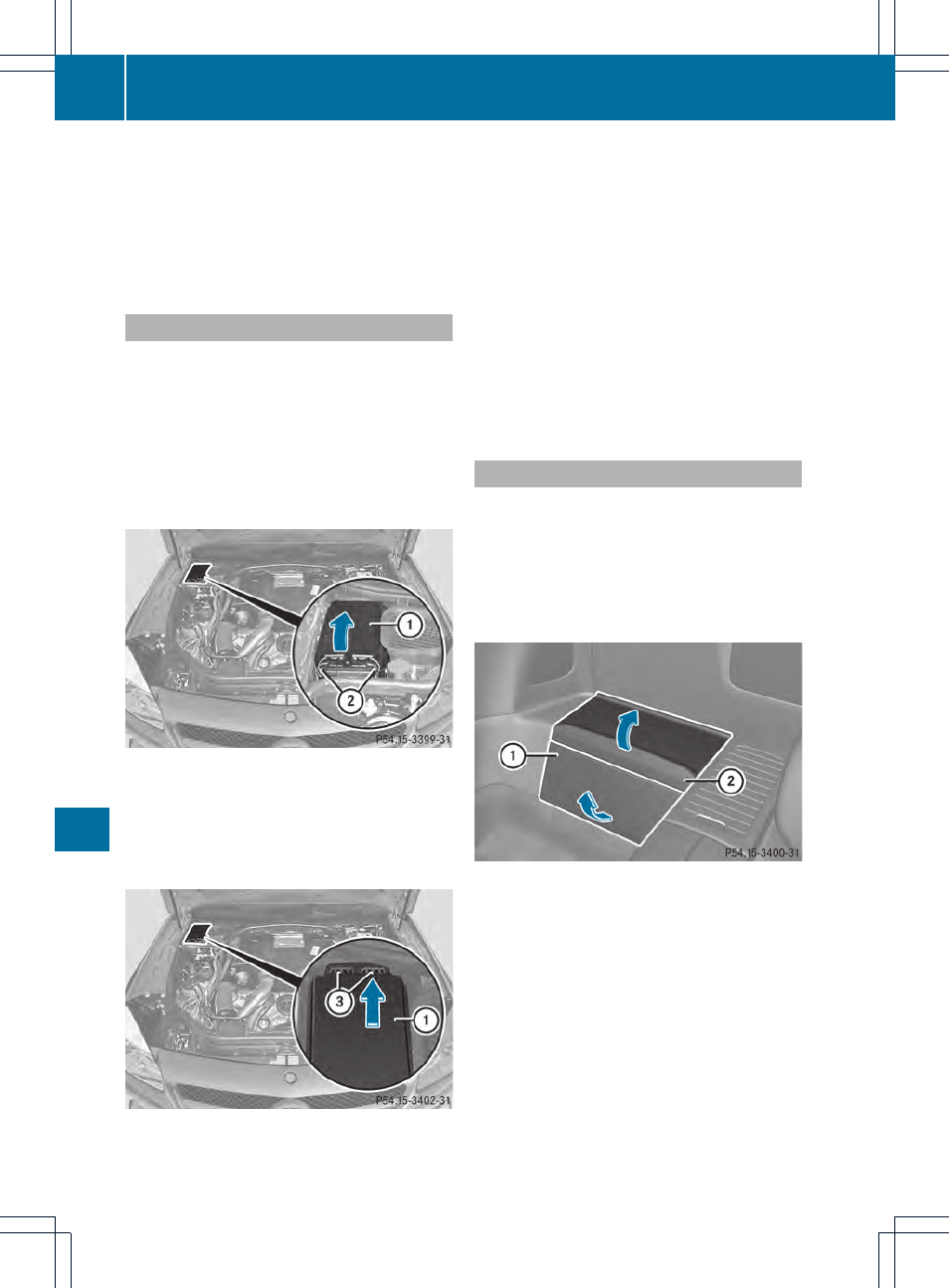

Fuse box in the engine compartment
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses.
X Open the hood.
X Remove any existing moisture from the
fuse box using a dry cloth.
X To open: open clamps ;.
X Fold cover : of the fuse box up in the
direction of the arrow and remove it.
X To close: check whether the seal is seated
correctly in cover :.
X
Insert both openings = at the rear of
cover : into the brackets on the fuse box.
The brackets on the fuse box must be
completely visible in the two openings =
on the fuse box.
X
Fold down cover :.
X Hook clamps ; into the fuse box and
close.
X Close the hood.
Fuse box in the rear
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses.
The fuse box in the rear is located on the right-hand
side when viewed in the direction of travel.
X
To open: open the seat belt guide on the
right-hand seat and remove the seat belt
(
Y
page 117).
X
Move the right-hand front seat as far
forward as possible (
Y
page 118).
X Insert your fingers at the bottom of front
cover : between the cover and floor
covering.
