A

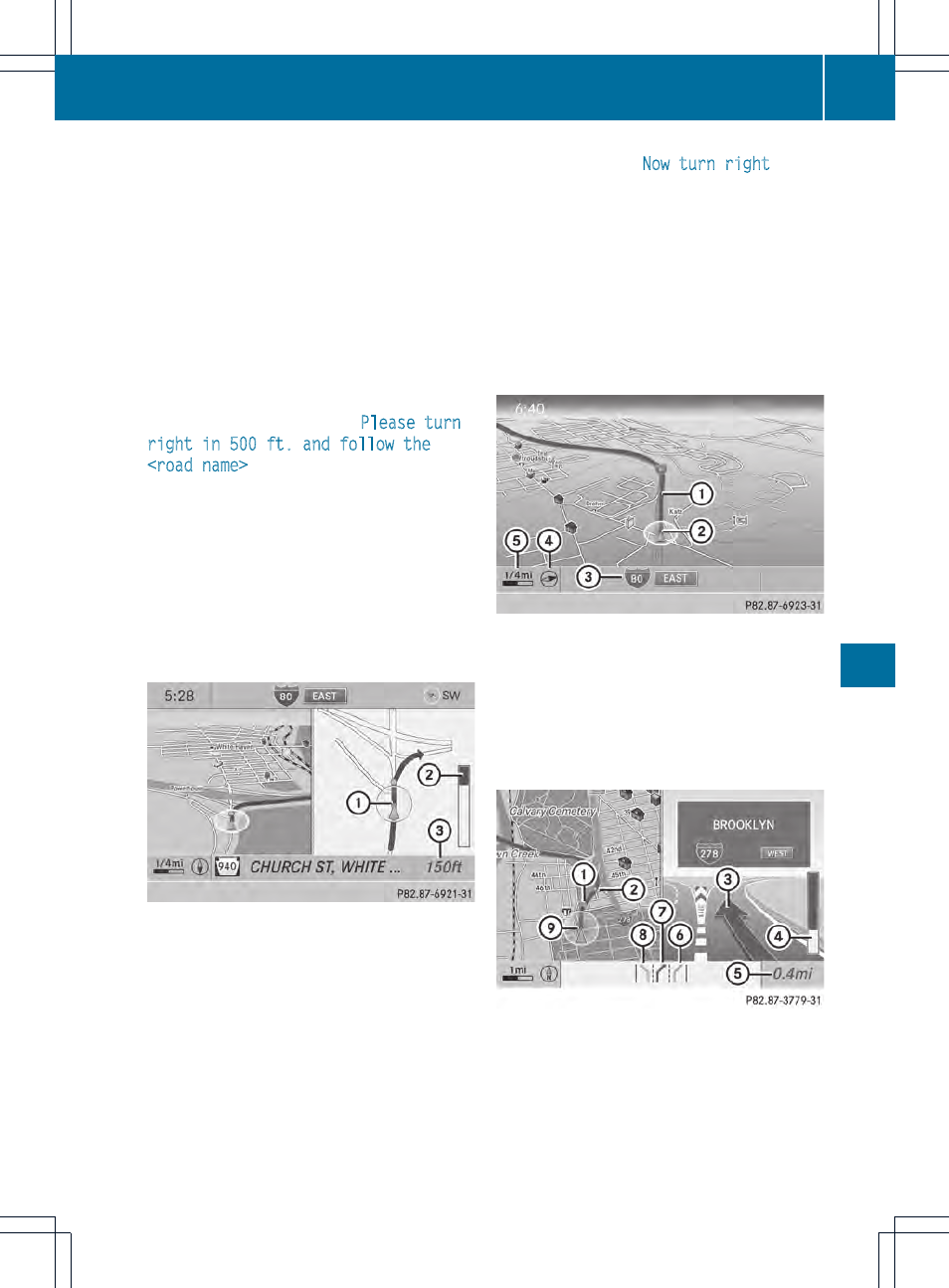

Route (highlighted in blue, shown in both

the left and right displays)

B

Point at which the change of direction

takes place (light blue dot, shown in both

the left and right displays)

i

The filled-in section of visual display for

distance = gets shorter the nearer you get

to the announced change of direction.

COMAND announces the imminent change of

direction. Based on the example display

below, the change of direction is announced

beforehand by the message:

Please turn

right in 500 ft. and follow the

.

The distance announced before the next

change of direction depends on the type of

road and its permissible maximum speed.
The display is now split into two sectors. In

the left half, you see the normal map view.

The right half shows an enlarged section of

the area around the intersection (Crossing

Zoom) or a 3D image of the road's course with

the route indicating the next maneuver.

Example: change-of-direction phase
:

Current vehicle position (the tip of the

triangle indicates the vehicle’s direction

of travel)

;

Graphic representation of the distance to

the next change of direction

=

Distance to the next change of direction

COMAND announces the imminent change of

direction.

In the example, the

Now turn right

announcement is made 150 ft. before the

change of direction.
The display is split into two halves, as in the

announcement phase.
Once the change of direction is completed,

COMAND automatically switches back to full-

screen display.
Example of a display without changes of

direction

:

Route (highlighted in blue)

;

Current vehicle position

=

Current road

?

Map orientation selected

A

Map scale selected

Lane recommendations

Example: lane recommendations
:

Point of the next change of direction

;

Point of the change of direction after next

=

Next change of direction (in this case, turn

off to the right)

Navigation

343
