The distance announced before the next
change of direction depends on the type of
road and its permissible maximum speed.
The display is now split into two sectors. In
the left half, you see the normal map view.
The right-hand half shows:
R an enlarged section of the area around the
intersection (crossing zoom) or
R a 3D image of the road's course with the
route indicating the next change of
direction

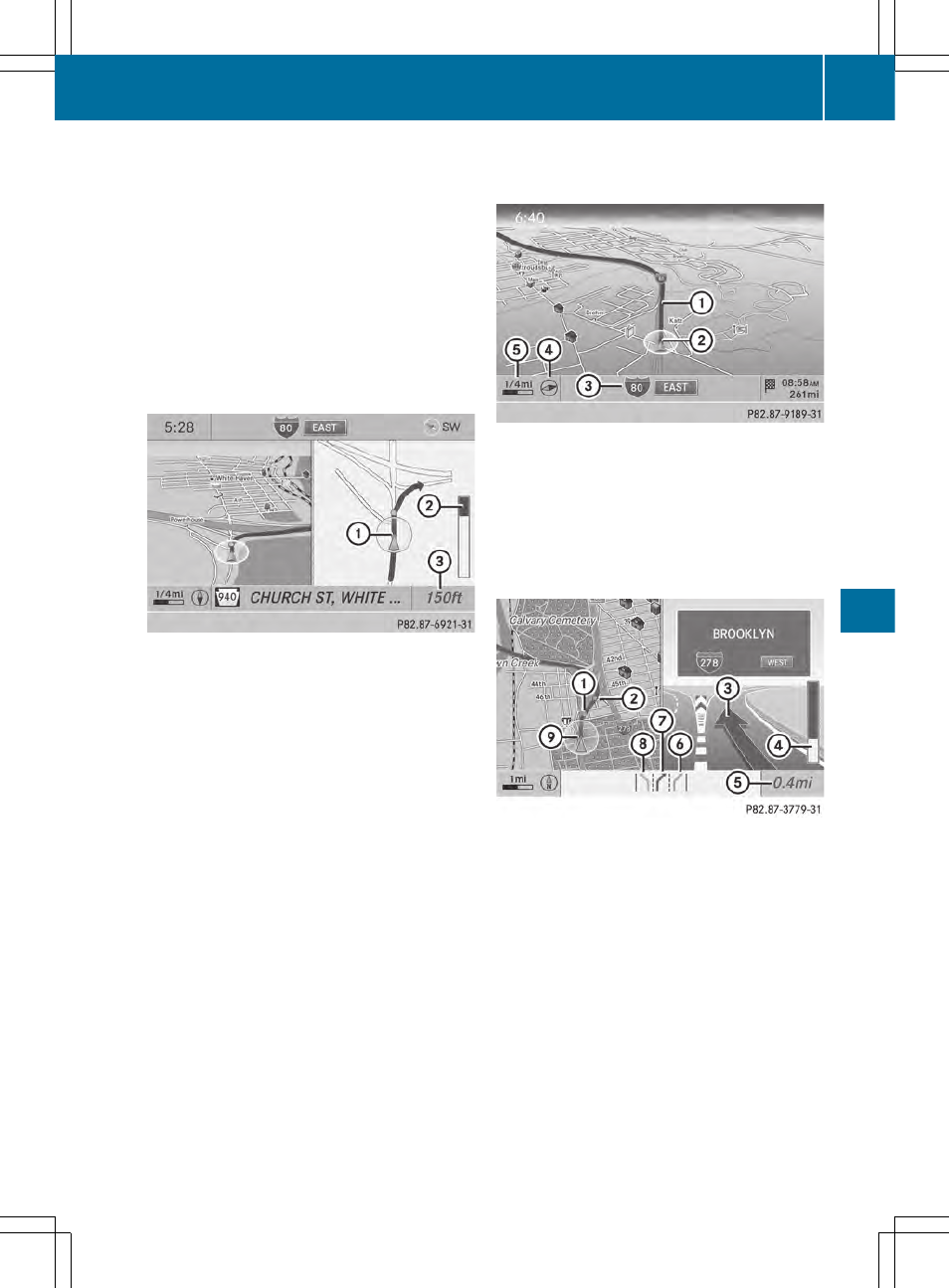

Example: change-of-direction phase
:
Current vehicle position (the tip of the
triangle indicates the vehicle’s direction
of travel)
; Graphic representation of the distance to
the next change of direction
= Distance to the next change of direction
COMAND announces the imminent change of
direction.
Based on the example display below, the
change of direction is announced 150 ft.
before the change of direction with the Now Now
turn right turn right message.
The display is split into two halves, as in the
announcement phase.
Once the change of direction is completed,
COMAND automatically switches back to full-
screen display.
Example of a display without changes of
direction
: Route (highlighted in blue)
; Current vehicle position
= Current road
? Map orientation selected
A Map scale selected
Lane recommendations
Example: lane recommendations
:
Point of the next change of direction
; Point of the change of direction after next
= Next change of direction (in this case, turn
off to the right)
? Graphic representation of the distance to
the next change of direction
A Distance to the next change of direction
B Possible lane (light blue)
C Recommended lane (dark blue)
D Lane not recommended (gray)
E Current vehicle position, the tip of the
triangle indicating the vehicle’s direction
of travel
