Operational Process
Non-Balance Method:
1. Connect the charger to a 12V car battery or DC hobby grade power supply
(DC11-18V). Use reference item “B” from physical overview for location.
2. Connect the battery to be charged. Use reference items “I” and “J” from
physical overview for location.

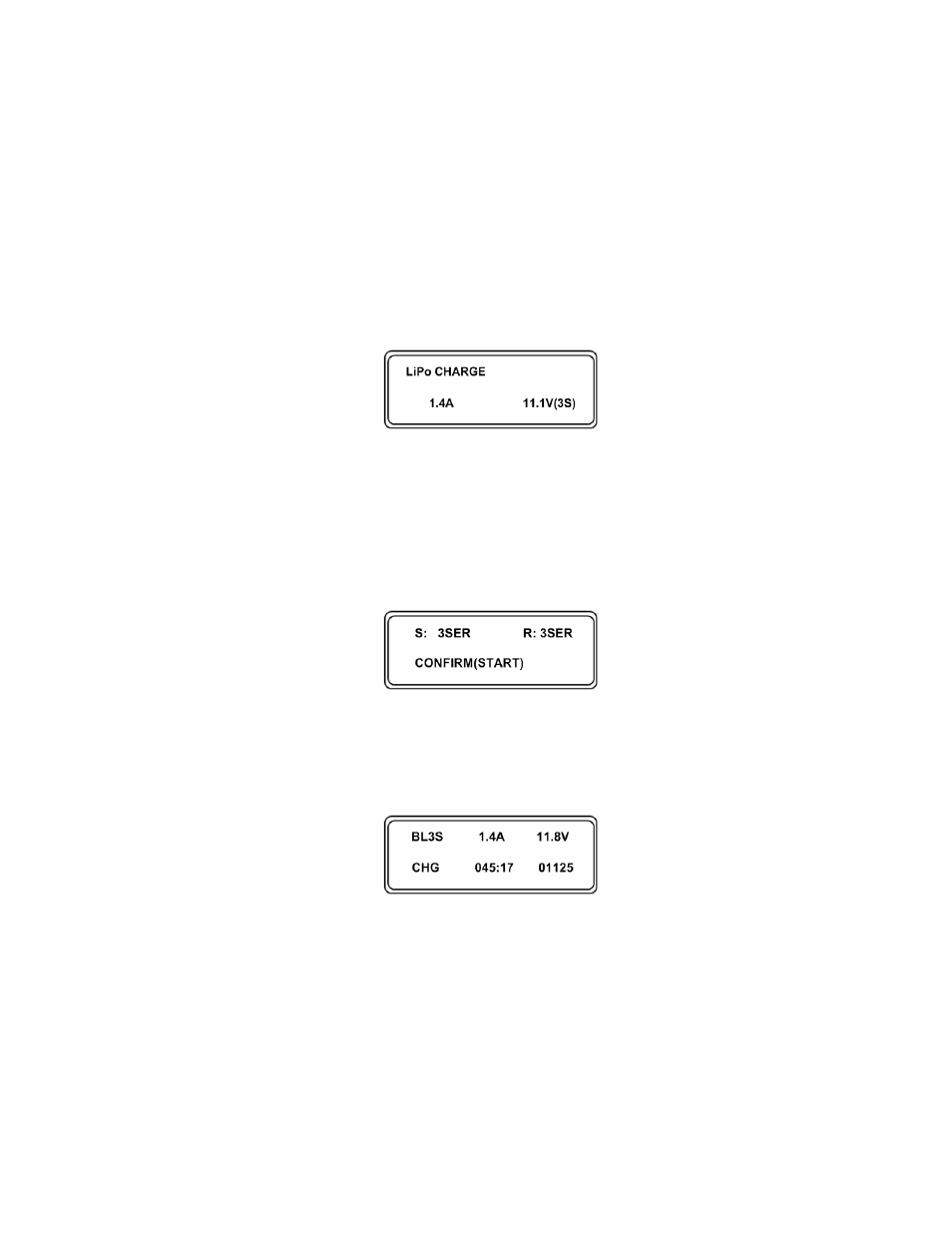

3. The following display will be shown. Confirm the Charging Current.
Press “START” and the ‘A’ value being displayed will blink.
Using the Increase and Decrease select buttons; adjust Charge Current to
desired value.
Press “START” when ready to proceed to select Voltage (number of cells).
Using the Increase and Decrease select buttons, set the Voltage (number of
cells).
4. Press and HOLD the “START” button for several seconds; the charger will
beep and the display will change to the following;
On the display, the “S” is the Cell count you selected on the previous screen,
“R” is the Cell count the charger determined. If both values are the same,
pressing “START” will begin the charge. If you need to change the Cell count
press the “STOP” button and return to the previous screen to make changes.
5. The following Display will show the charge status:
BL3S – LiPo 3-cell
1.4A – Charge current
11.8V – Battery pack voltage
45.17 – Charge time
1125 – Charge capacity in mAh
