Kontron IP Network Server NSC2U
December 2009 Product Guide, rev. 1.4
91
Optional Component Installations—NSC2U Server
4.7 Installing a SMART Embedded USB Solid-State Drive
The optional SMART Embedded USB Solid-State Drive (eUSB SSD) provides local
memory storage for various options such as system information, diagnostic partitions,
and configuration data. It is positioned on the SAS front panel board between the RAID
DIMM connector and the RAID key socket and behind the control panel LED light pipes.
Before you install an SSD, you must remove the chassis top cover, the front bezel, and
the processor air duct.
1. Remove the chassis top cover and the processor air duct. For instructions see
Section 3.2.1 and Section 3.2.5 .
2. Plug one end of the cable labeled “SysCon” into the rear of the interposer card as
shown (“A”). (The cable has identical connectors on both ends.)
3. Attach the interposer card to the SFP board by inserting and tightening the two
screws that come with the VSSD into the two threaded standoffs on the SFP board.
(“B”)
4. Plug the other end of the cable into the connector header on the SFP board. (“C”)

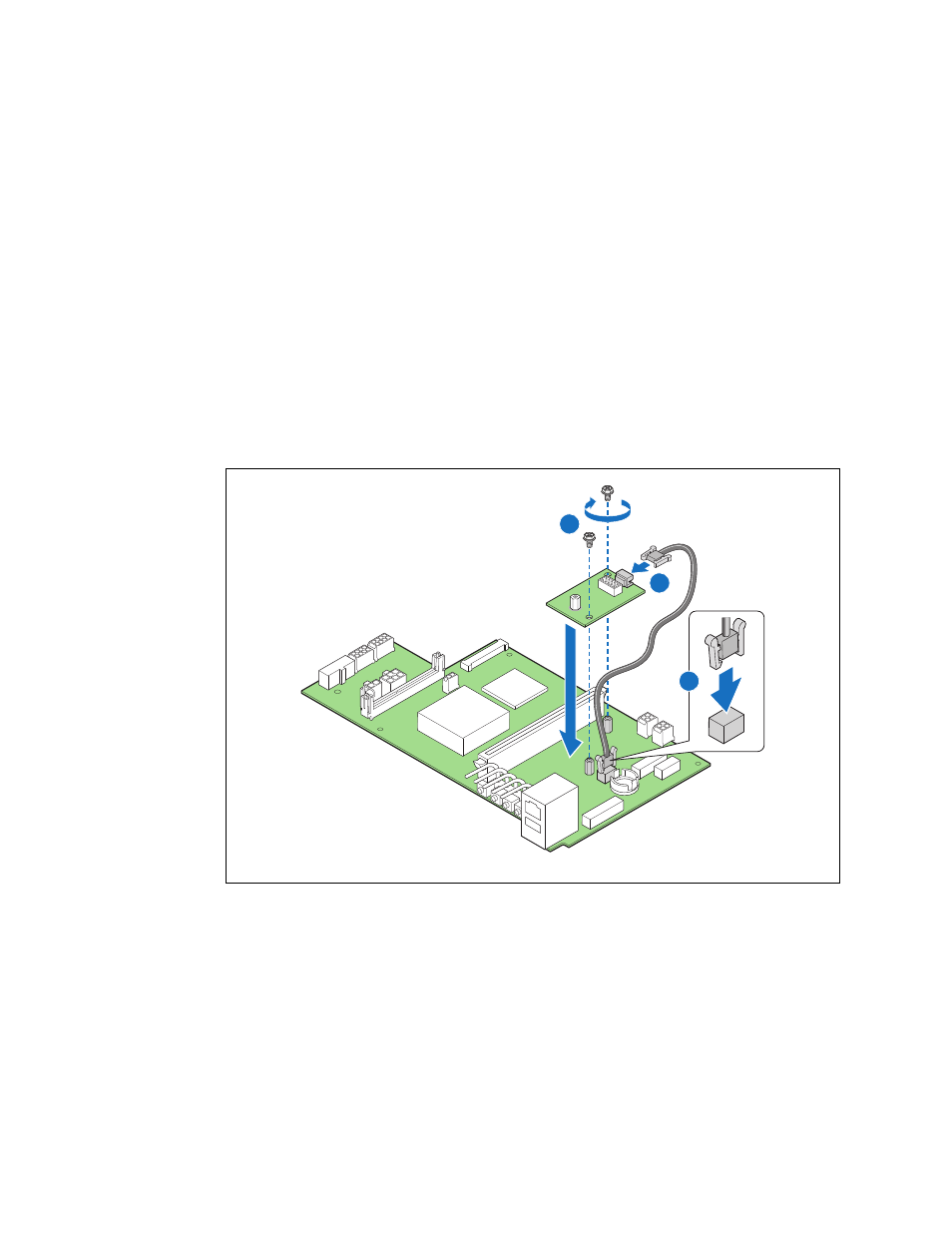

Figure 76. Installing the Interposer Card
A
B
C
TS000502
