Page 39
KTD-S0022-C
Page 34
Crisis Management
KTLX800/pITX User's Guide
16.1
Modifying para
bootable state. In
case this happens one jumper ex
ing steps:
❶
❷
❸
Power up the board and enter the BIOS Setup.
❹

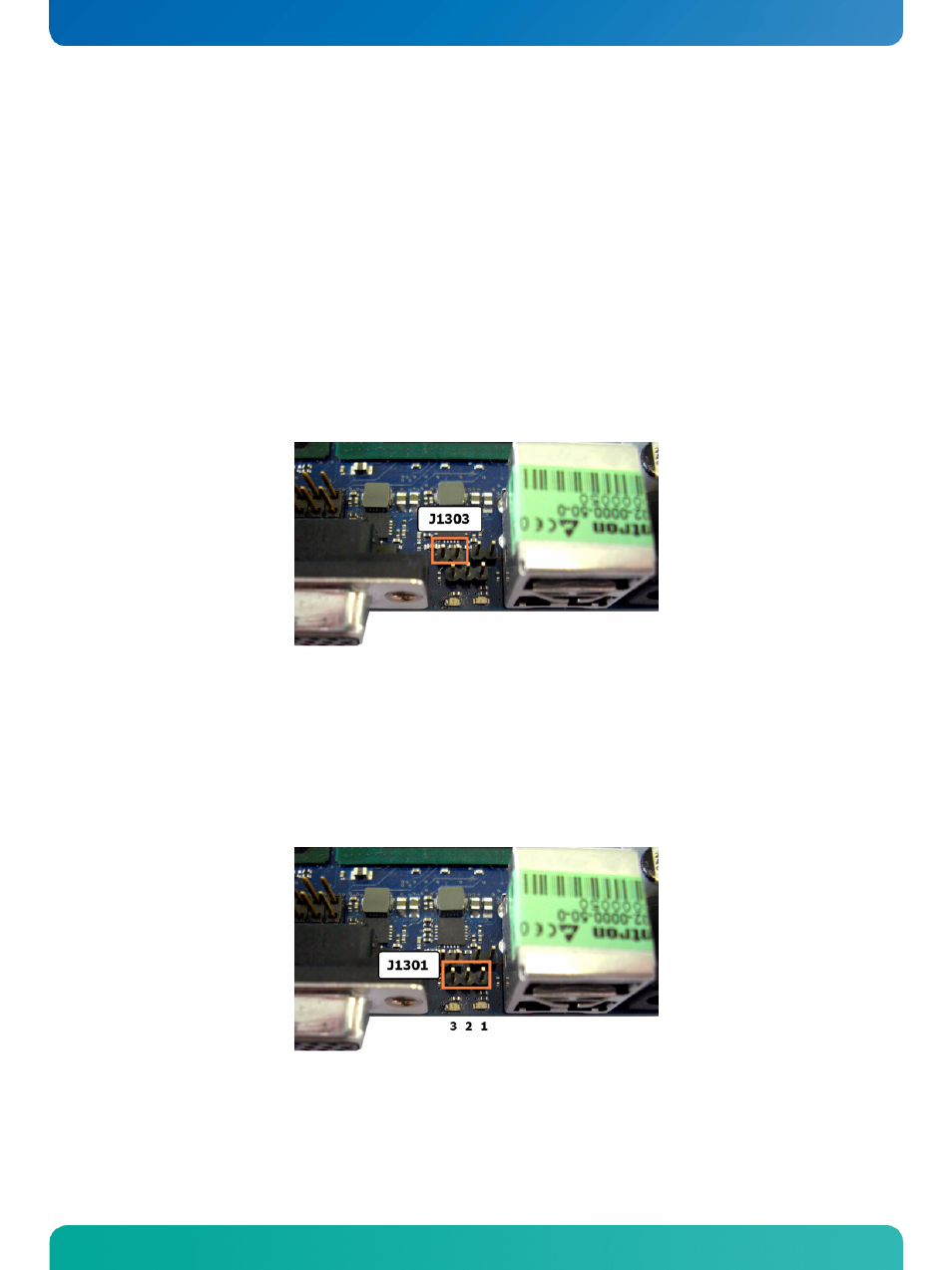

Remove the jumper on J1303.
❺
Saving your settings with 'Save & Exit Setup'. The board should be functional now.
16 Crisis Management
Wrong BIOS Settings
meters in the BIOS Setup implies the risk of leaving your system in a un
ists to reset the settings to 'Fail-Safe' values. Take the follow
Power down the system.
Put a jumper on J1303.
17 Autostart Function
When the KTLX800/pITX should start directly when the power is applied (without a power button signal)
the autostart jumper J1301 must be set.
Ö Position 1 - 2: autostart function enabled
Ö Position 2 - 3: park position for unused jumper
