KTD-S0022-C Page 32 Power Supply
KTLX800/pITX User's Guide

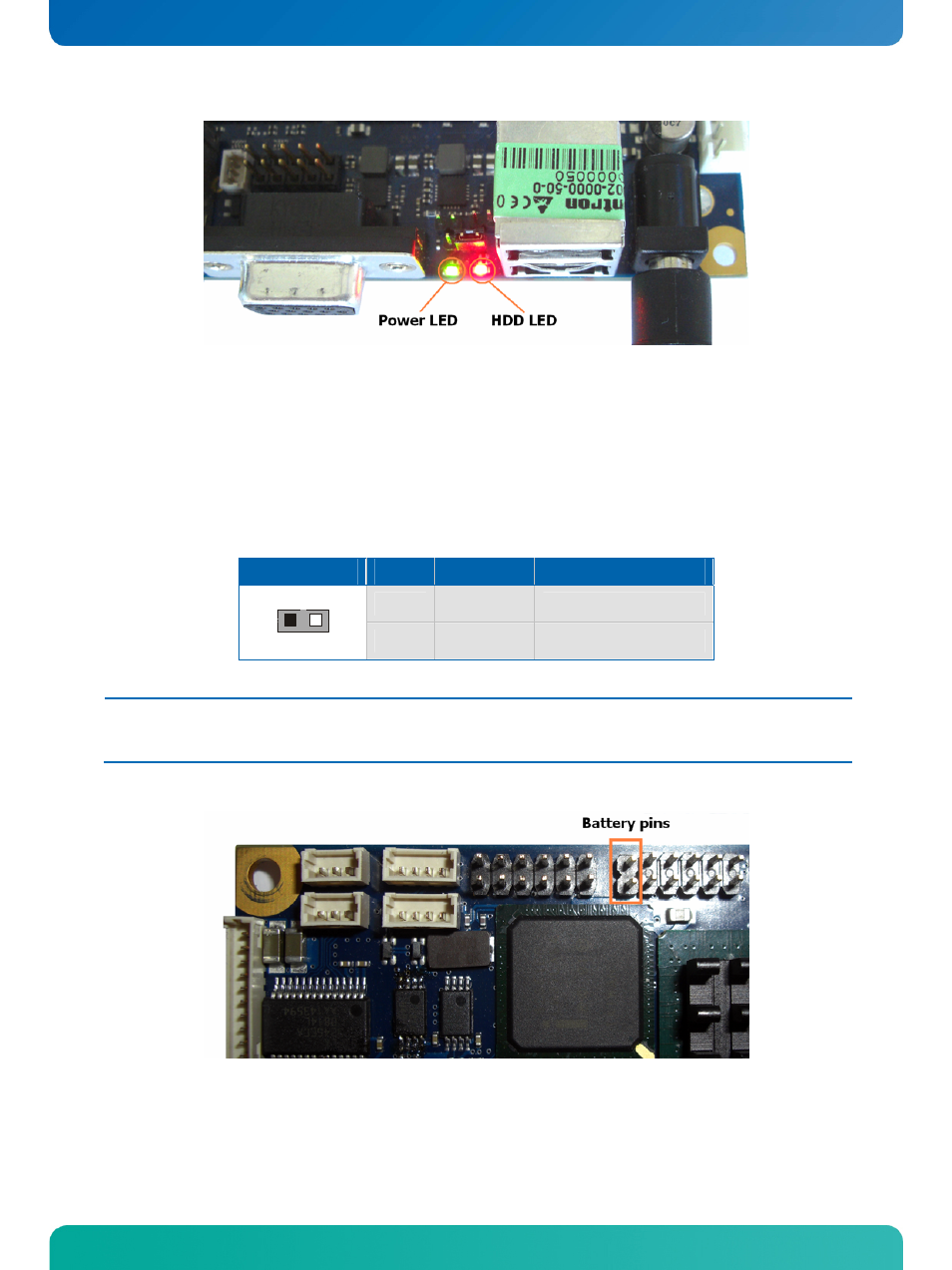

15.5 Battery Connector
An external battery is only necessary if time nd da e sa d is turned off. For the
gs no battery is needed as these settings are also stored in an EEPROM.
he battery interface is available through the pin header J1802 (2 pins).
a te should b ved when the boar
BIOS settin
T
Header Pin Signal Name Function
1 VBAT 1) Battery input voltage +3V
1 2
2 GND Ground
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
