Rear Panel Assembly
Locate the rear panel. The inside surface should be clean bare metal. It was taped to avoid overspray during
painting. Remove any tape still present. If a large area is taped, you can break it away near one corner using a
blunt tool that fits through a screw hole as shown in Figure 3 and then peel it off of the panel.

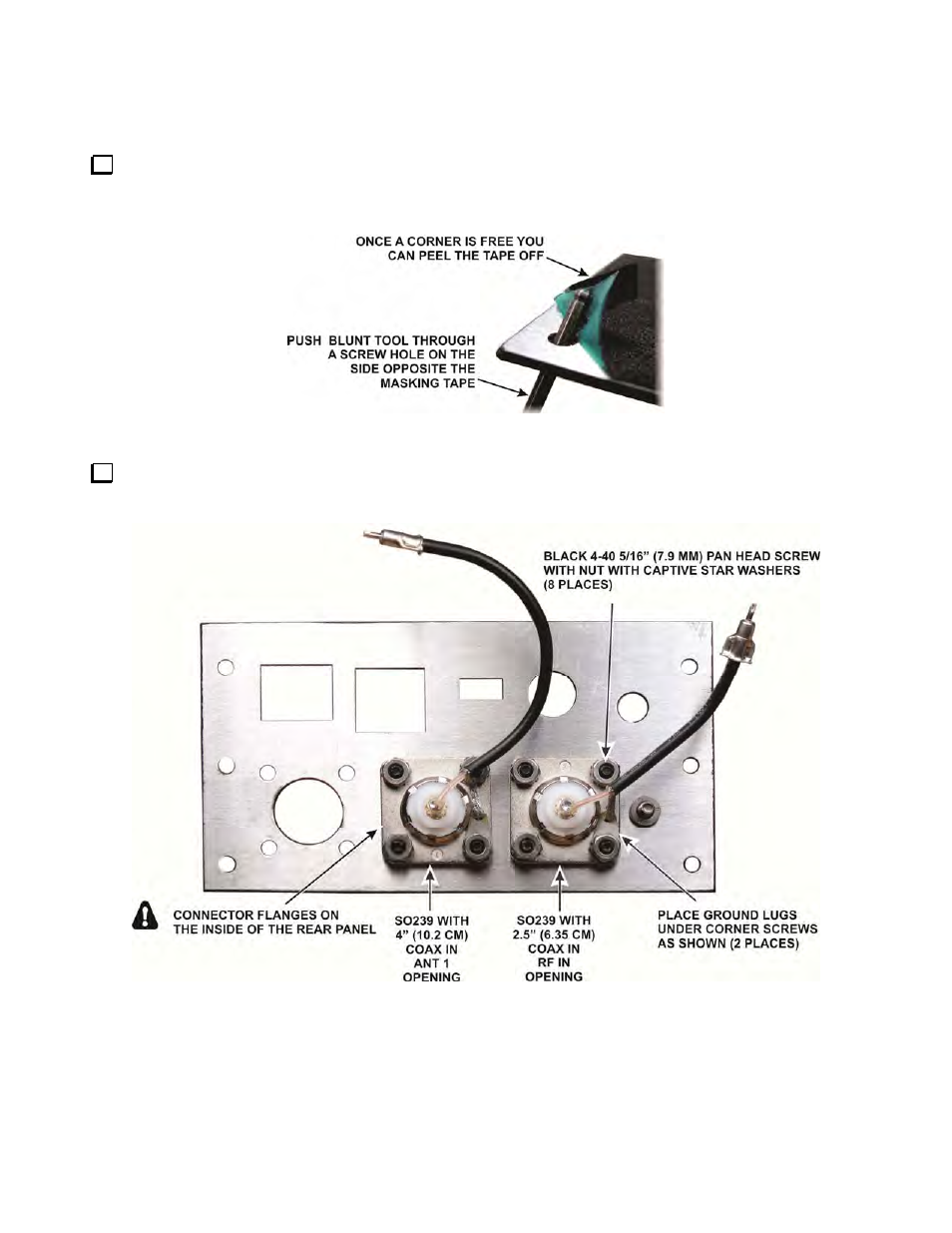

Figure 3. Removing Masking Tape from the Rear Panel.
Install SO239 connectors in the ANT1 and RF IN openings in the rear panel as shown in Figure 4. Be sure
you put the connector with the length of coax in each hole as shown or you won’t be able to plug them in later.
Figure 4. Installing the ANT1 and RF IN SO239 Connectors in the Rear Panel.
