A2

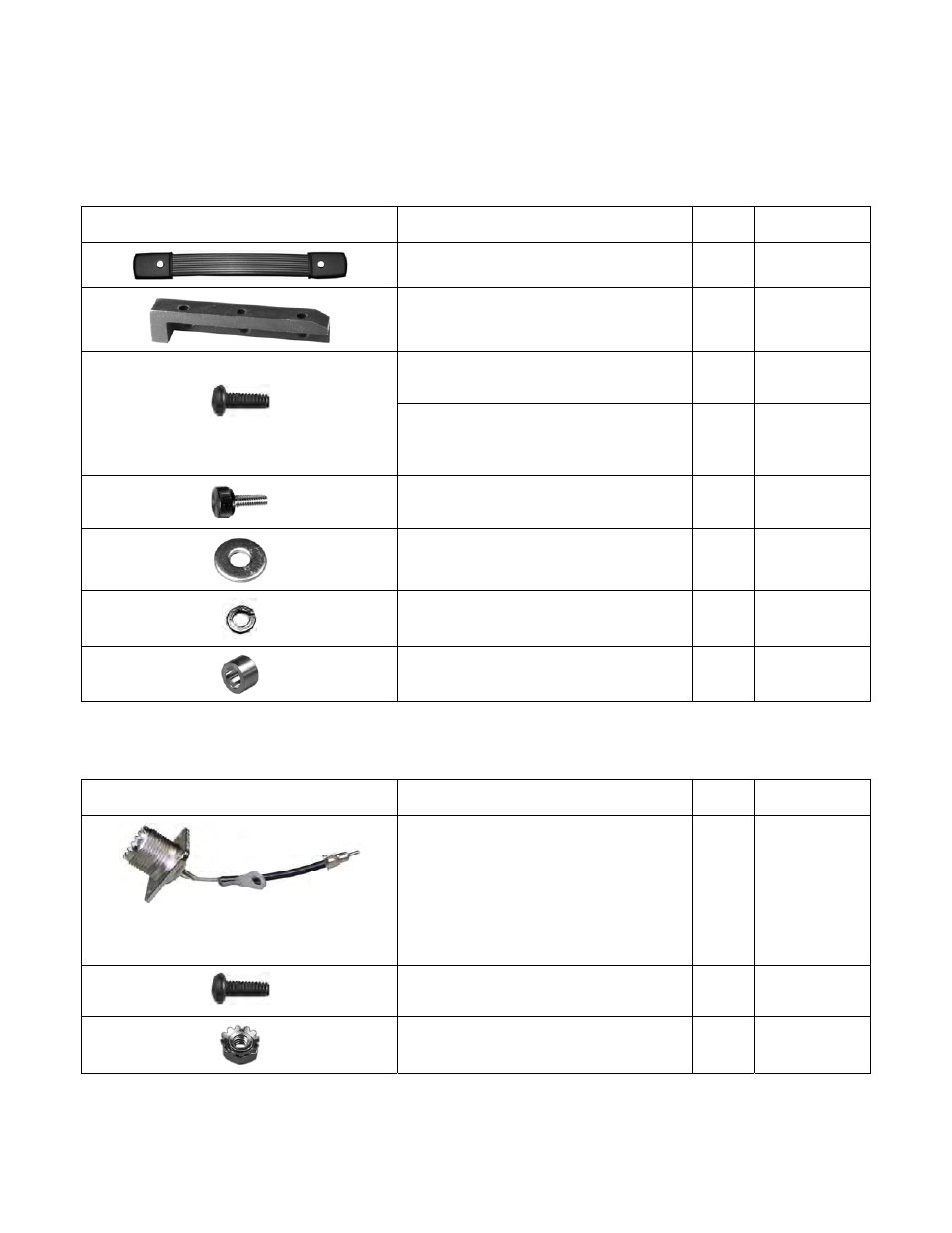

KXPA100-K Hardware Bag E850585

ILLUSTRATION DESCRIPTION

QTY.

ELECRAFT

PART NO.

Handle with 2 End Caps

1

E980115

Foot and Corner Bumper

4

E100456

Pan Head Screw (typical)

Screw, Pan Head, Black 4-40,
5/16” (7.9 mm)

32 E700294

Screw, Pan Head, Black 8-32
3/8” (9.5 mm)

2 E700250

Thumbscrew, 6-32

1

E700070

Washer, Flat, #6

2

E700067

Lock Washer, Split Ring, #4

28

E700010

Spacer, 1/8" (3.2 mm) long

24

E700290

KXPA100 SO239 TMP Cable 2.5” Envelope E850589

ILLUSTRATION DESCRIPTION

QTY.

ELECRAFT

PART NO.

SO259 – TMP Cable (typical)

SO259 Connector with 2.5” (6.35 cm)
cable and TMP connector

1 E850599

Screw, Pan Head, Black 4-40,
5/16” (7.9 mm)

4 E700294

Nut, 4-40 with captive star washer

4

E700191
