18

Installing the Enclosure

Unwrap the U-Cover and inspect the flanges at both ends to ensure they are clean metal. Remove any paint

overspray or masking tape that may have been left on them. If they are still taped, you can lift one corner of the
tape and it will peel off in one piece. Optionally you can push a blunt tool through one of the screw holes at the
end and the tape will pop loose, making it easy to pull off (see Figure 18).

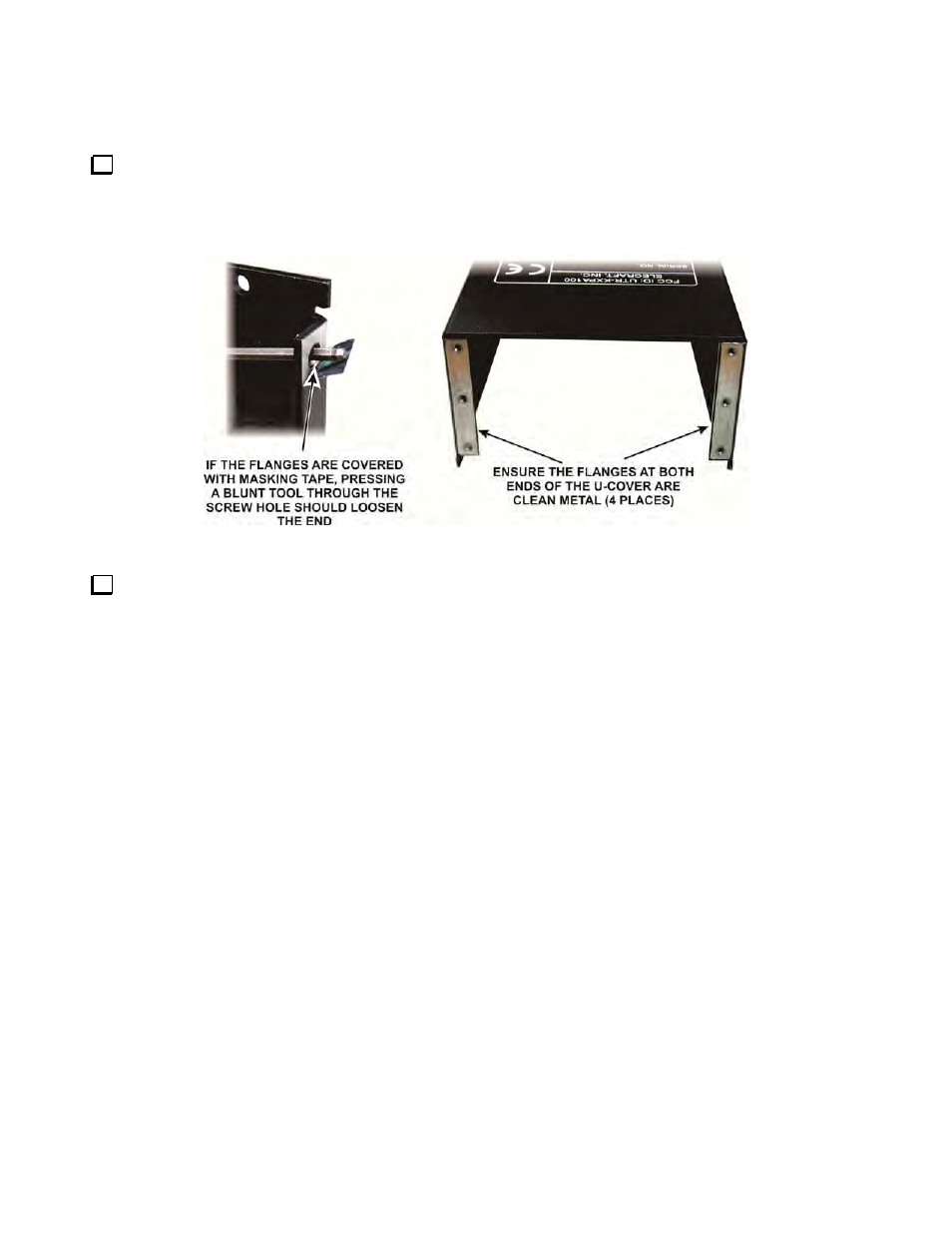

Figure 18. Removing Masking Tape from U-Cover Flanges.

Make a final check of the TMP connectors on the coaxial cables leading to the rear panel SO239

connectors to ensure each connector is fully inserted in the mating connectors.
