19

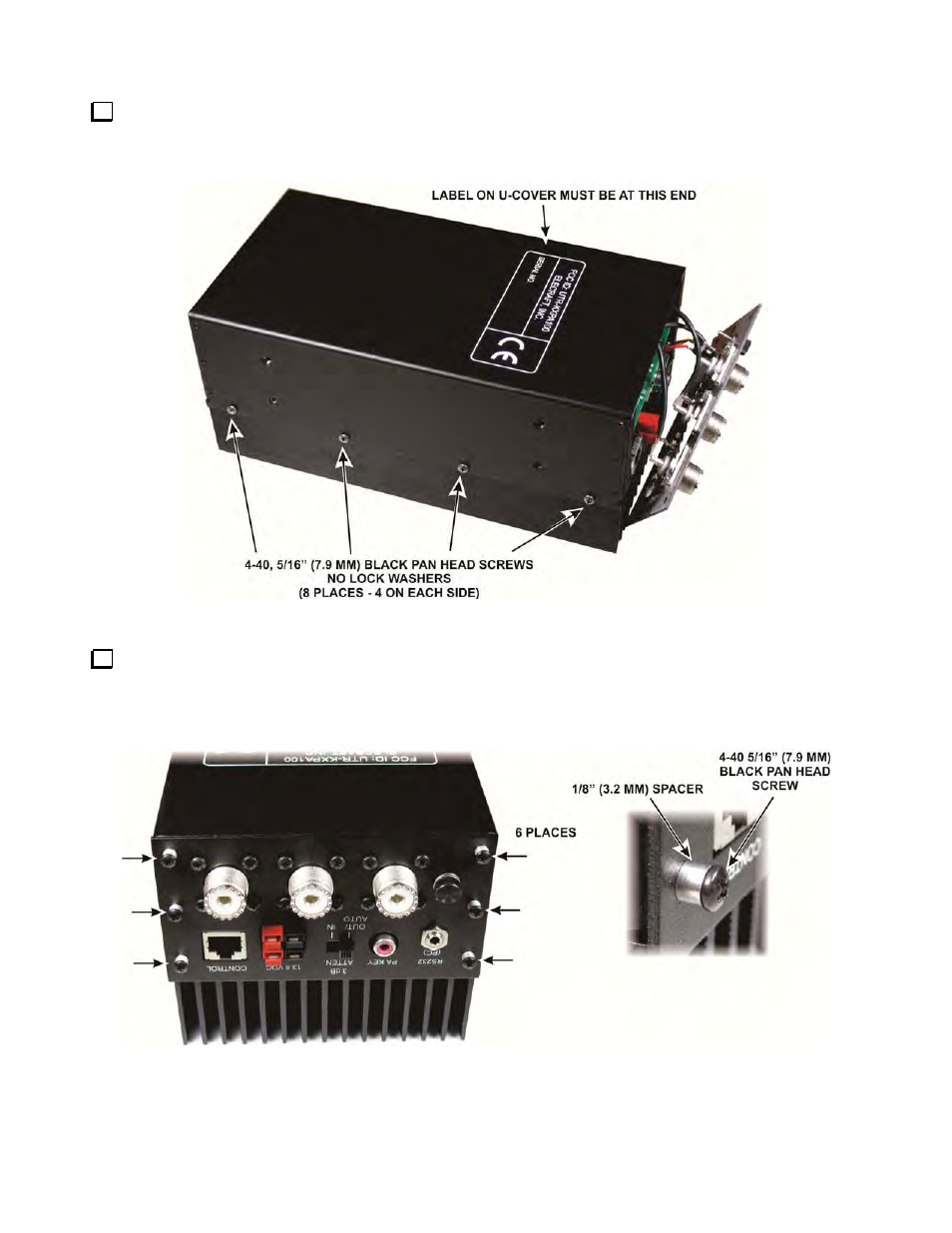

Place the U-Cover over the amplifier pc boards as shown in Figure 19. Be sure the lettering on the U-Cover
is nearest to the rear panel with the SO239 connectors as shown, otherwise two of the bushings mounted in the
side of the cover will strike the LPF module pc board.
Figure 19. Mounting the U-Cover.
Position the rear panel against the end of the U-Cover so that the Control, 13.8 VDC , PA KEY connectors
and the 3 dB ATTEN switch pass through the openings in the cover. Tuck the coaxial cables into the space
between the LPF board assembly and the U-cover as needed. Secure the rear panel with six screws and spacers
as shown in Figure 20.
Figure 20. Mounting the Rear Panel.
