Install the strap handle on the side of the KXPA100 as shown in Figure 23. Note that one side of the
enclosure has two threaded bushings and the other side has four. Place the handle on the side with four bushings
in the two closest to the heat sink. The other bushings are for mounting the amplifier to a bracket, if desired, as
described in your Owner’s Manual.
Do not over-tighten the screws. When properly tightened, the handle should lie flat
against the side of the enclosure, but pull away far enough to admit your fingers when
needed. Over tightening the screws may distort the end covers so they prevent movement.

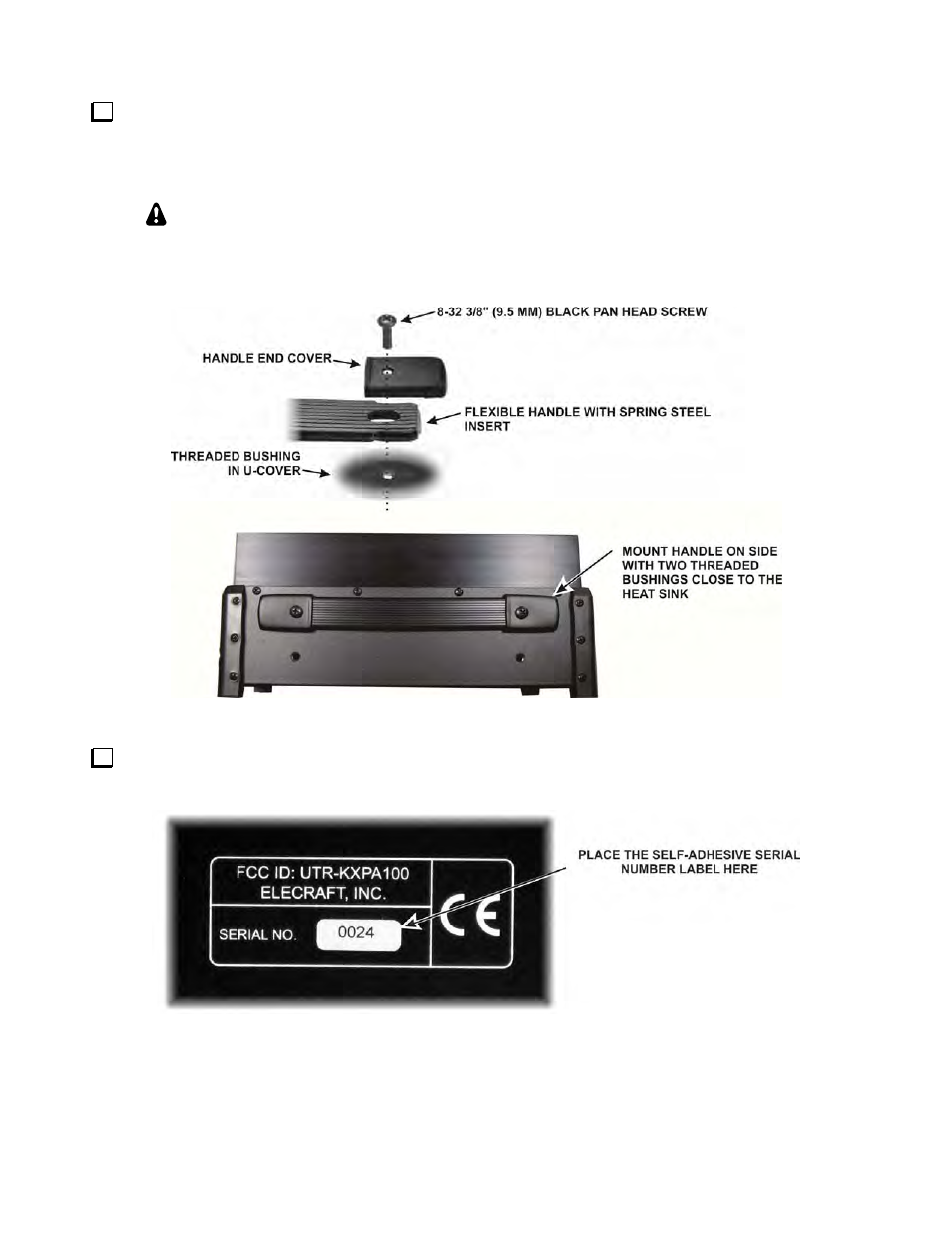

Figure 23. Mounting the Side Handle.
Set the KXPA100 on its heat sink and attach the self stick serial number in the place provided on the
bottom (see Figure 24).
Figure 24. Attaching the Serial Number.
