Install a foot at each corner of the enclosure as shown in Figure 22. When the foot is pressed over the
screws, lock washers and spacers you installed earlier and against the corner of the enclosure, the three
remaining holes in the foot will line up with threaded bushings in the U-Cover to receive the additional three
screws, lock washers and spacers.

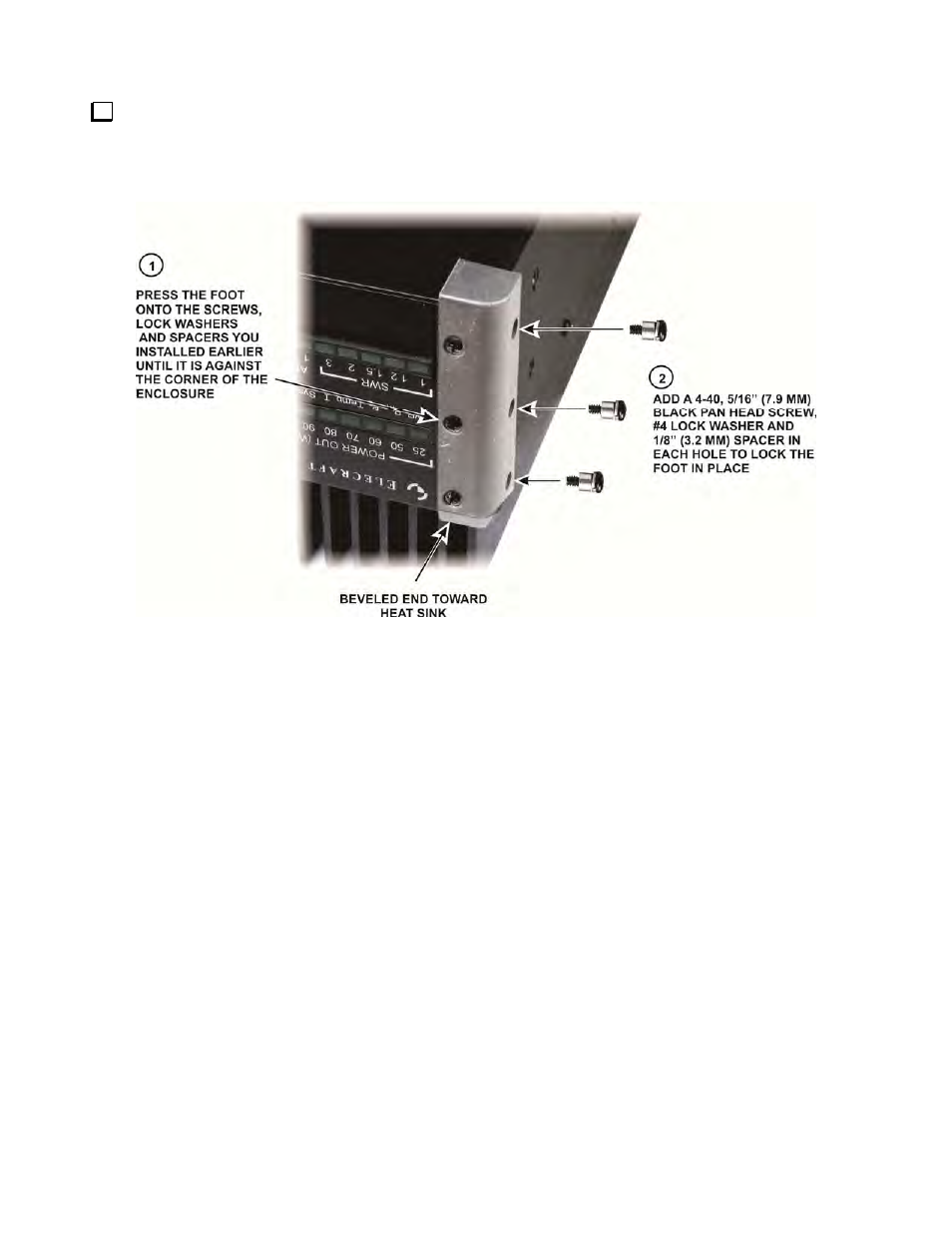

Figure 22. Installing the Feet.
