Position the front panel so the LEDs, OFF/ON , TUNE and MODE switches fit through the openings. Secure
the front panel with screws, lock washers and spacers just as you did on the rear panel (see Figure 21).
The front panel for a KXAT100 with the optional ATU is shown. The alignment of the
panel with the switches and LEDs requires more care when the ATU is installed. Start
securing the front panel with screws, lock washers and spacers in the opposite corners of
the front panel and check to ensure the
TUNE and MODE switches move freely. They only
move a small amount when pressed but you should feel a definite movement. If necessary,
loosen the hardware at one corner and adjust the front panel position slightly. When you
are satisfied, install the remaining screws, lock washers and spacers.

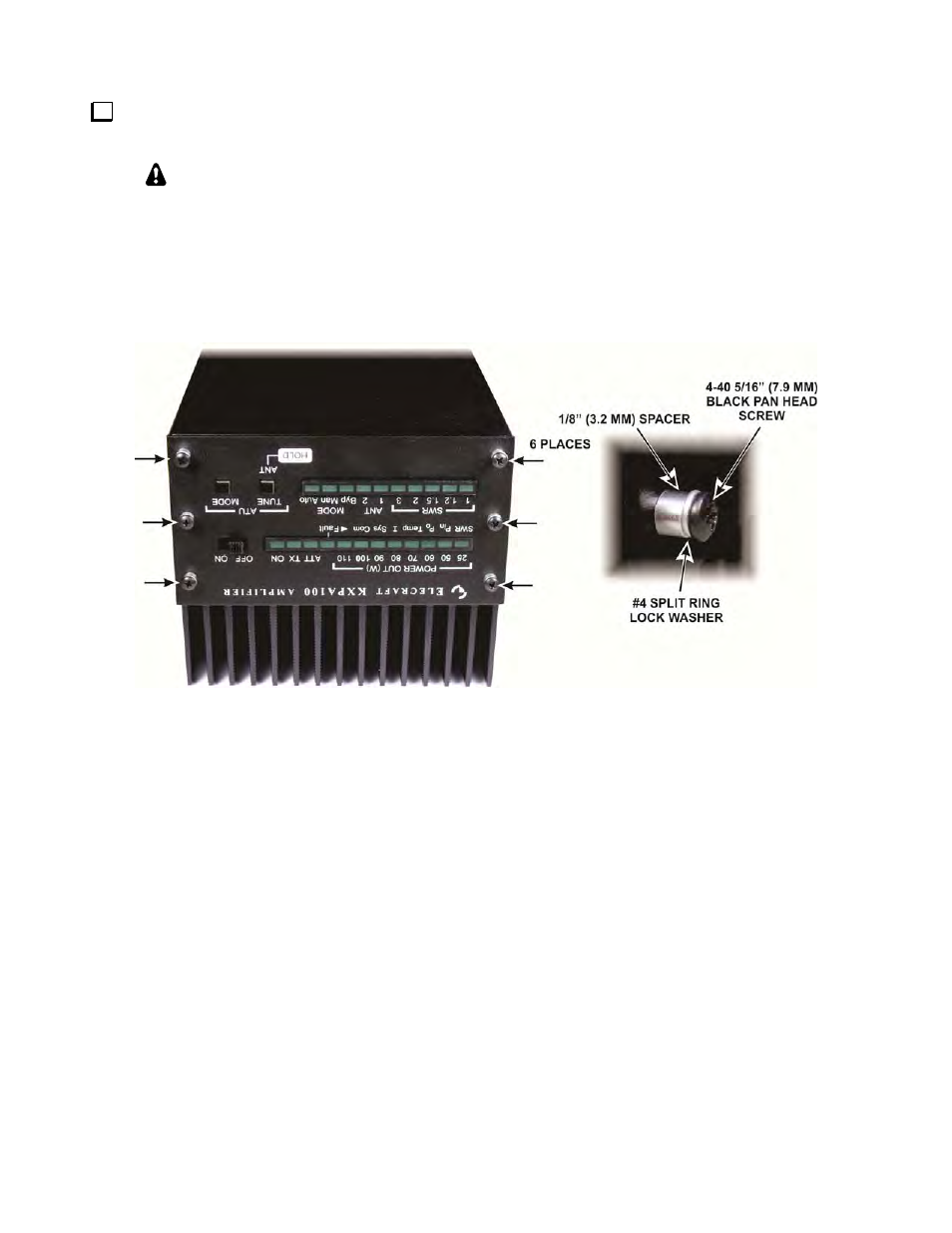

Figure 21. Mounting the Front Panel.
