Elecraft KXPA100 Assembly Manual User Manual
Page 11
11

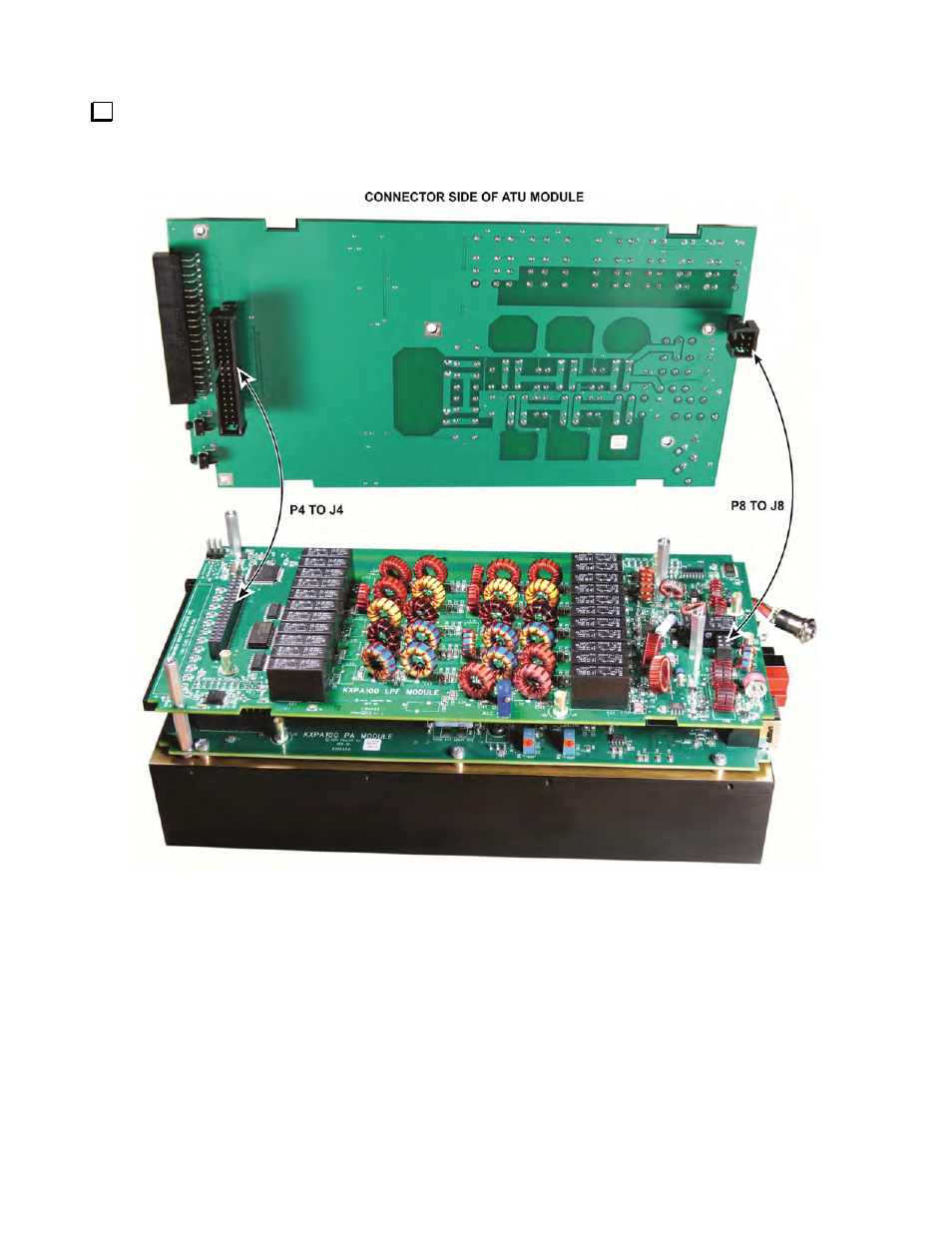

Taking ESD precautions, remove the ATU module pc board from its packaging. Place it on the standoffs
you just installed so that the two plugs on the ATU module mate with their corresponding sockets on the LPF
module as shown in Figure 7. Be sure that both connectors are properly aligned so all of their pins engage.
Figure 7. Mating the ATU Module with the LPF Module.
