Installing System Components 97

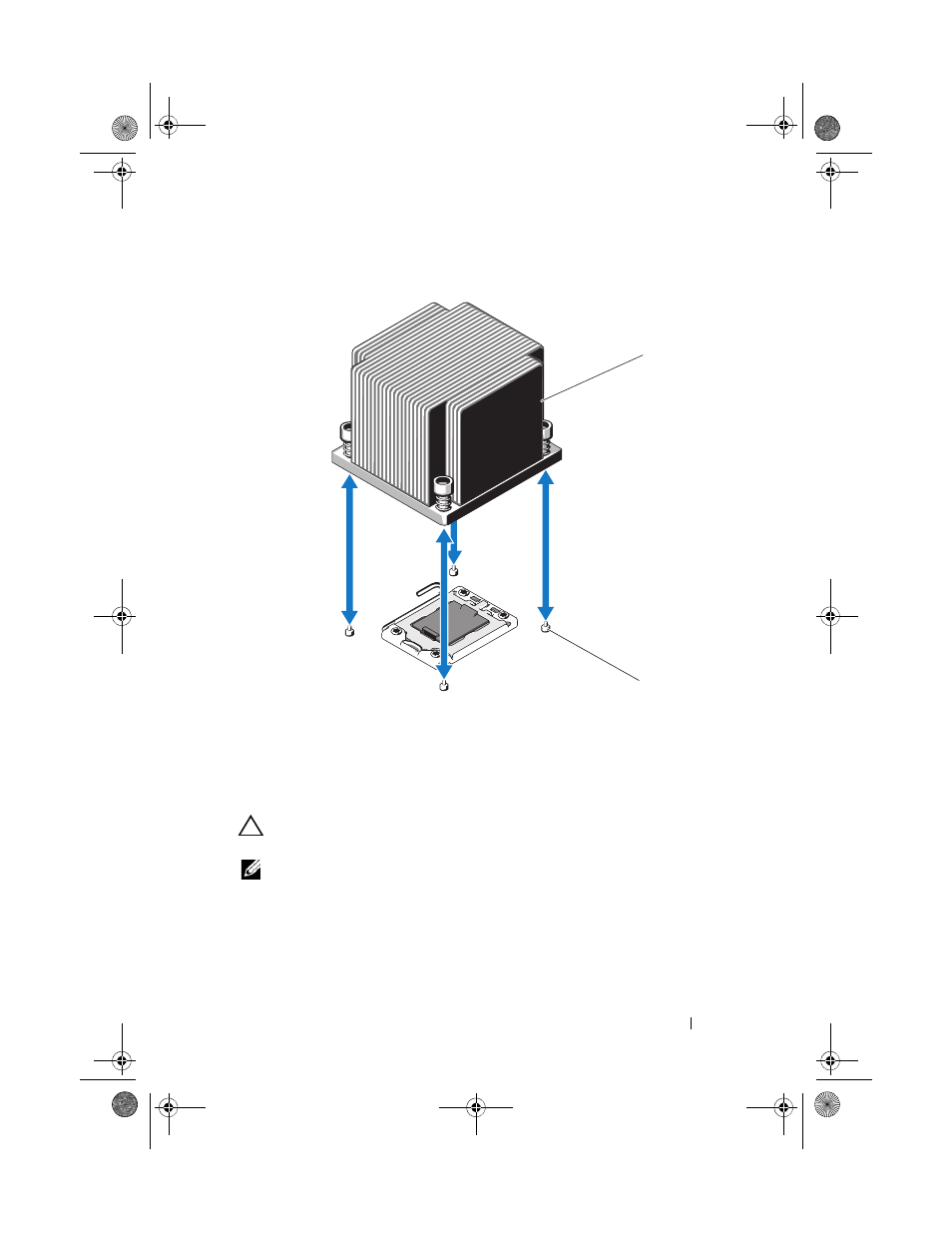

Figure 3-18. Installing and Removing the Heat Sink
10 Rotate the processor shield upward and out of the way. See Figure 3-19.
11 Lift the processor out of the socket and leave the release lever up so that
the socket is ready for the new processor.
CAUTION: Be careful not to bend any of the pins on the ZIF socket when removing
the processor. Bending the pins can permanently damage the system board.
NOTE: In single-processor configurations, the processor must be installed in
socket CPU1. Install the blank in socket CPU2 only.
1 heat sink 2 retention screws (4)
2
1
