Dell DR4000 User Manual
Page 117
Installing System Components
117
CAUTION:
Do not lift the system board assembly by grasping a memory module,
processor, or other components.
12 Grasp the system board assembly by the edges and lift the system board
assembly away from the chassis. See Figure 3-26.

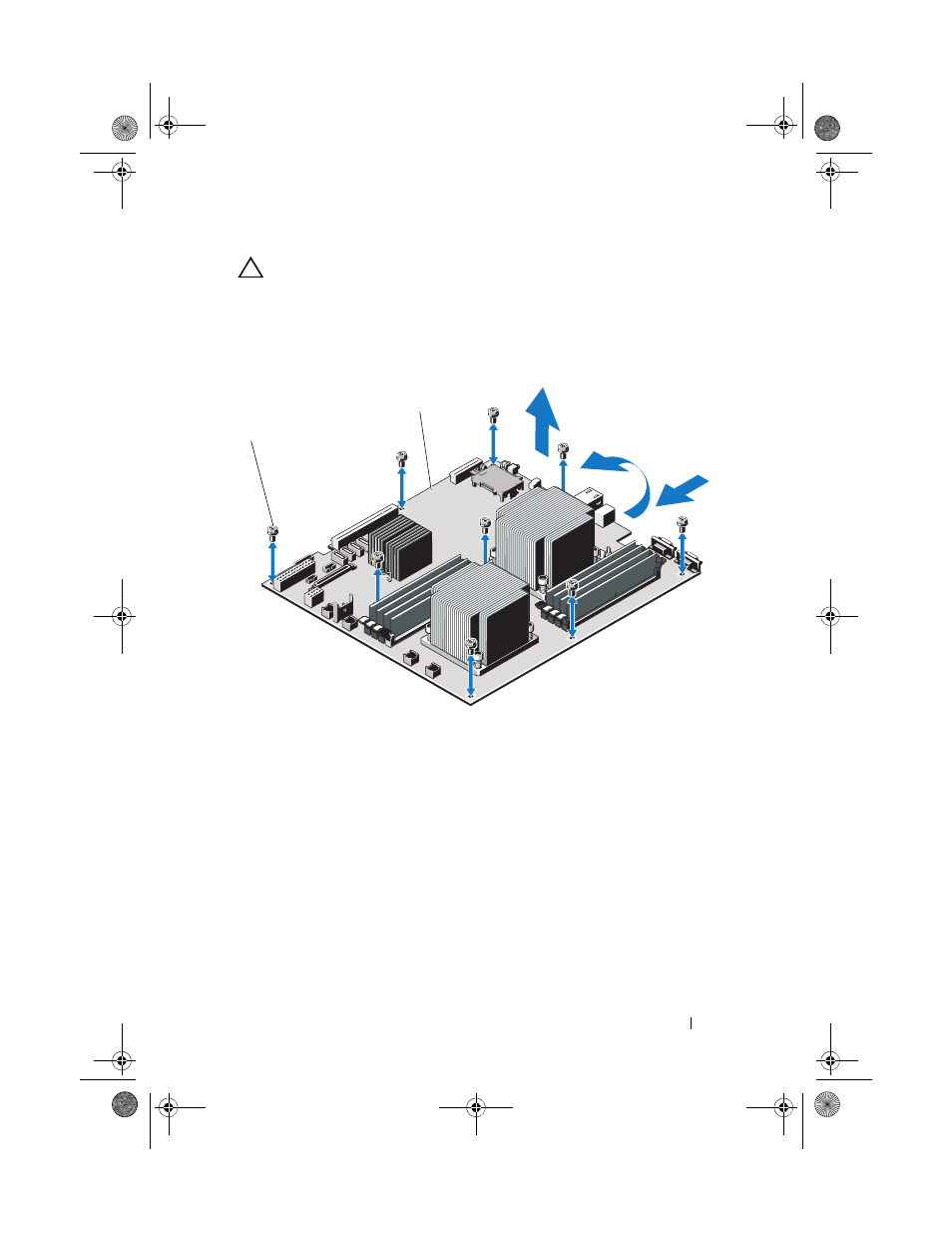

Figure 3-26. Removing and Installing the System Board
1
screws (9)
2
system board assembly
1
2
book.book Page 117 Friday, January 6, 2012 2:11 PM
