84 Installing System Components

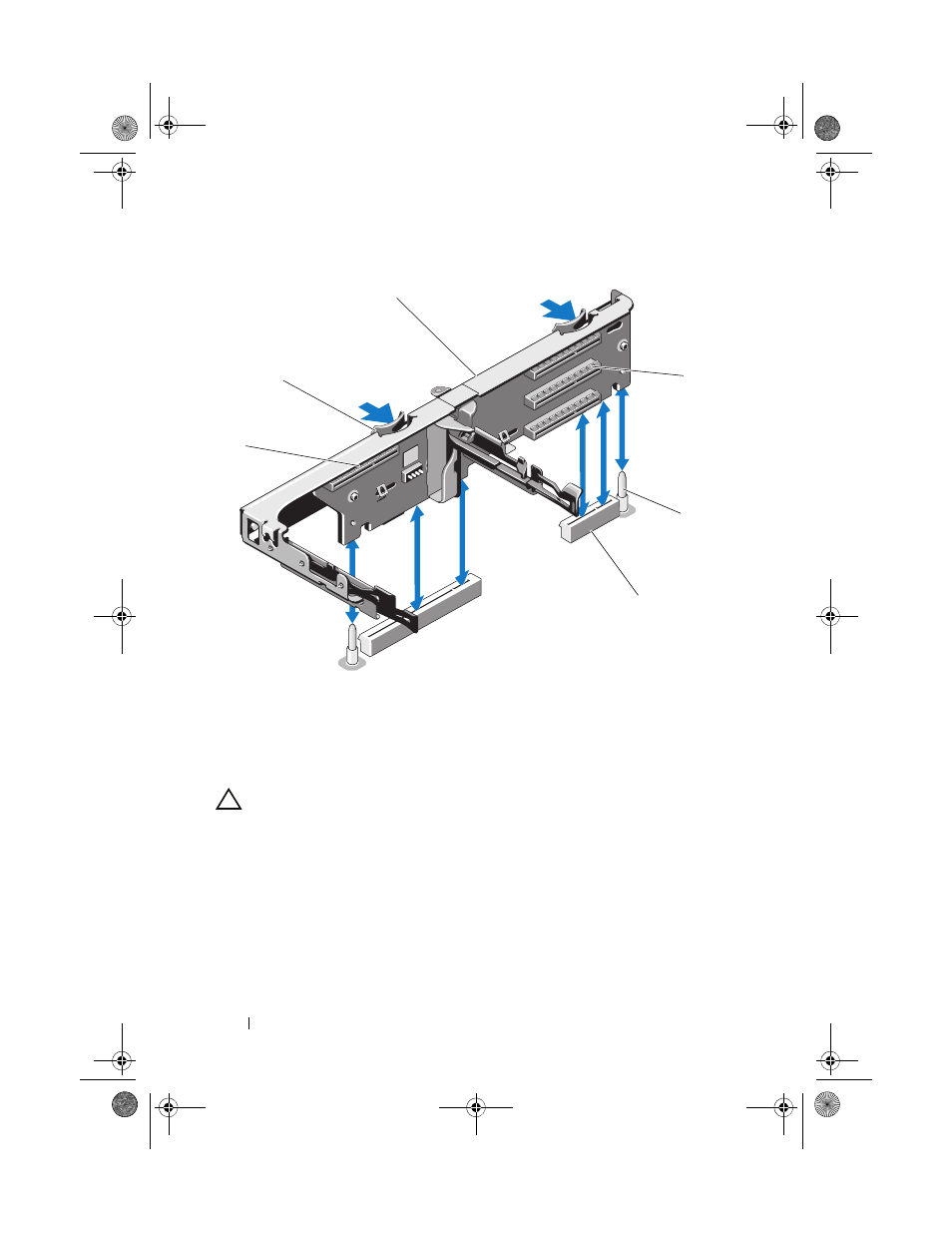

Figure 3-13. Removing and Installing an Expansion-Card Riser
Installing an Expansion Card
CAUTION: Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1 Unpack the expansion card and prepare it for installation.
For instructions, see the documentation accompanying the card.
2 Turn off the system, including any attached peripherals, and disconnect
the system from the electrical outlet.
1 integrated storage controller slot 2 riser guides (2)
3 expansion-card riser 4 expansion card slot
5 riser guide posts (2) 6 expansion-card riser slots (2)
6
1
2
3
5
4
