Installing System Components 85
3 Open the system. See "Opening the System" on page 60.
4 Remove the cooling shroud. See "Removing the Cooling Shroud" on
page 62.
5 Open the expansion-card latch and remove the filler bracket.
See Figure 3-14.
NOTE: Keep this bracket in case you need to remove the expansion card.
Filler brackets must be installed over empty expansion-card slots to maintain
FCC certification of the system. The brackets also keep dust and dirt out of the
system and aid in proper cooling and airflow inside the system.
6 Holding the card by its edges, position the card so that the card-edge
connector aligns with the expansion-card connector on the expansion-card
riser.
7 Insert the card-edge connector firmly into the expansion-card connector
until the card is fully seated.
8 Close the expansion-card latch. See Figure 3-14.

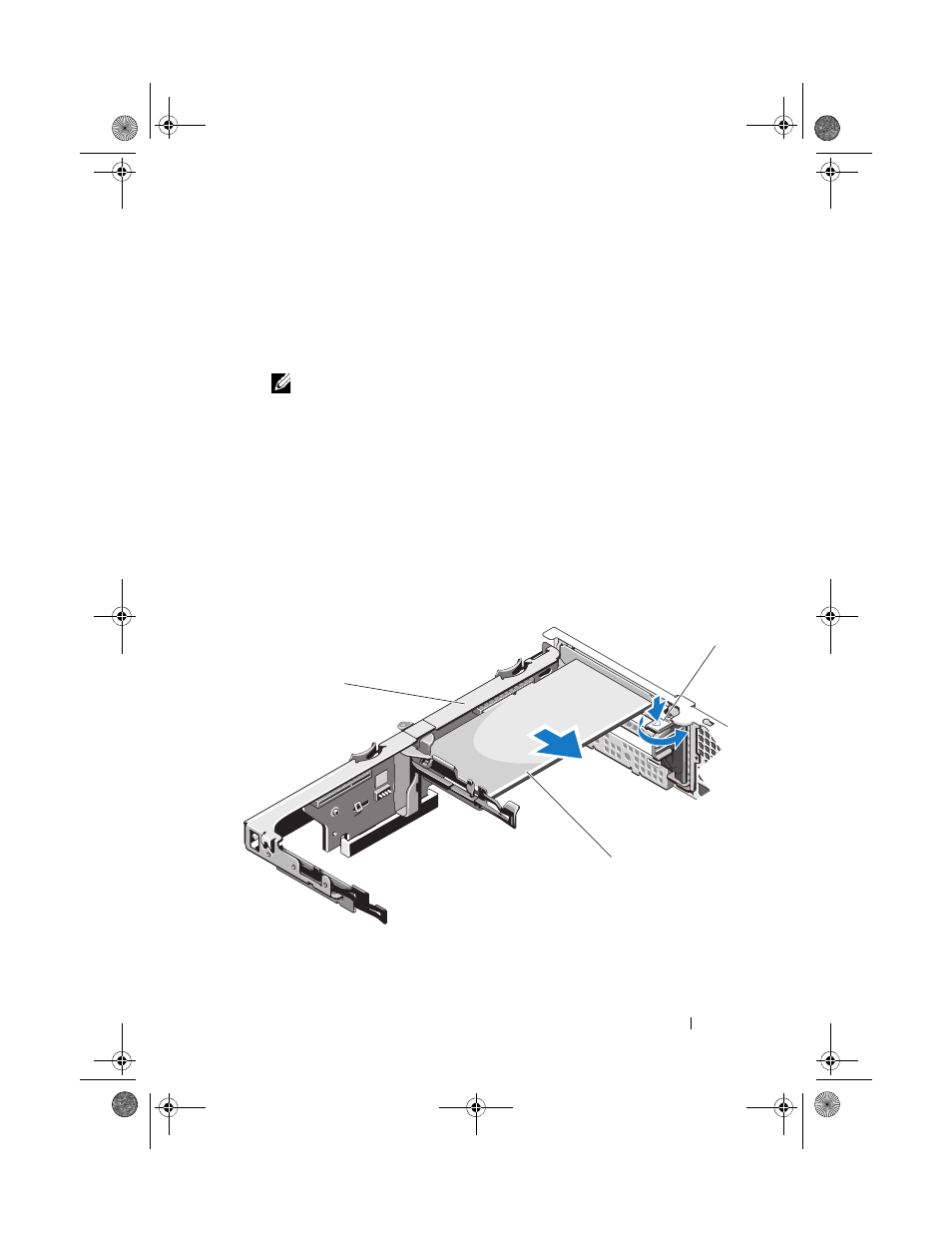

Figure 3-14. Removing and Installing an Expansion Card
1 expansion-card riser 2 expansion-card latch
3 expansion card
3
2
1
