Figure 1, Figure 2, Shows the sas in ports on the enclosure management – Dell PowerVault DR6000 User Manual

Page 30: Module (emm) on the rear of the dell md1200

Text mode
Original mode

If you install multiple enclosures and cable them as described here, make sure to set the enclosure mode switch on the
MD1200 front chassis to the top (unified mode) position. For more information, see

Dell PowerVault MD1200 and MD1220

Storage Enclosures Hardware Owner's Manual

at support.dell.com/manuals.

Figure 3. Dell PowerVault MD1200 Rear Chassis

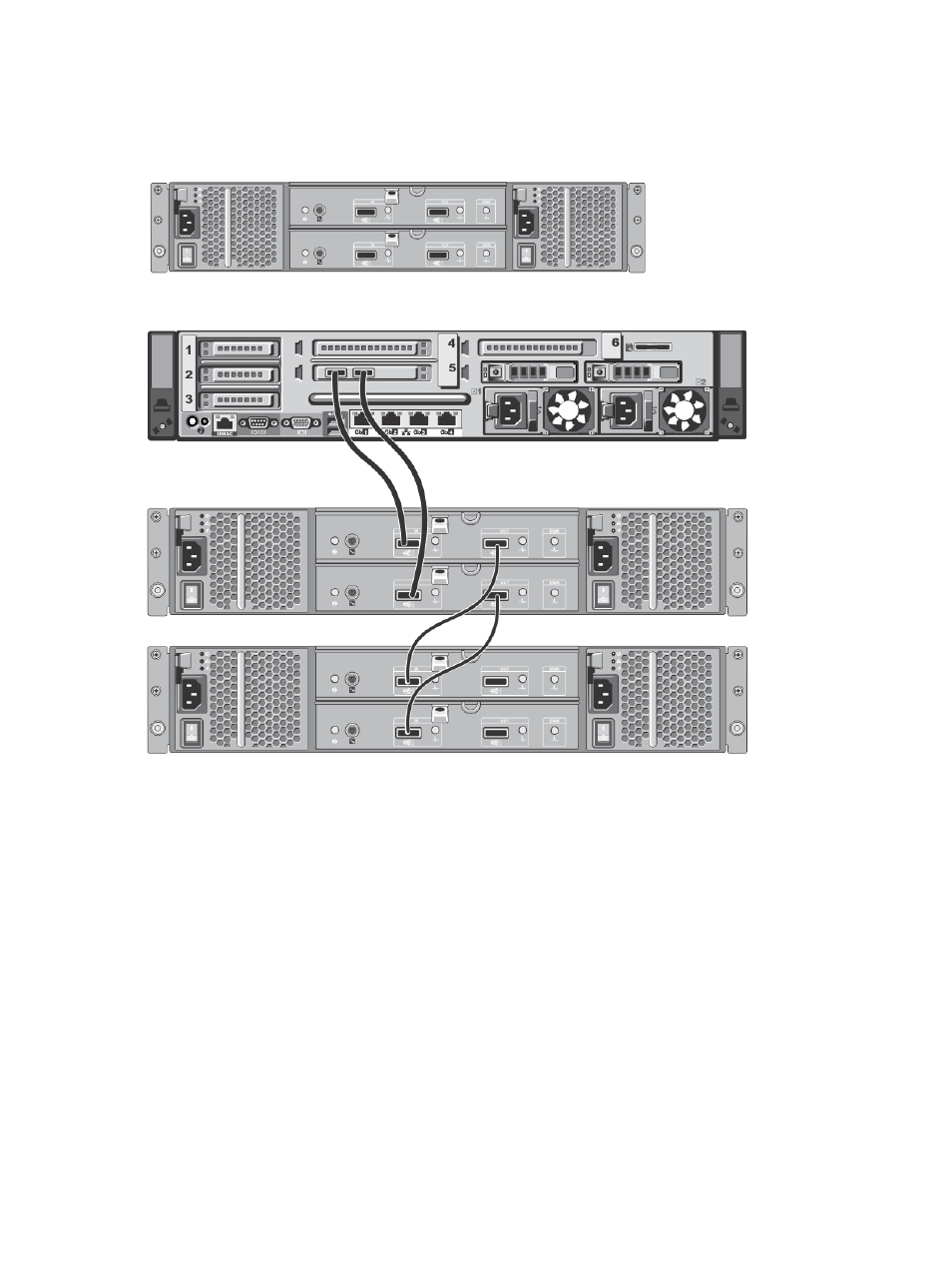

Figure 4. Unified Mode Daisy-Chained Redundant Path Dell PowerVault MD1200 Enclosures
