Installing System Components

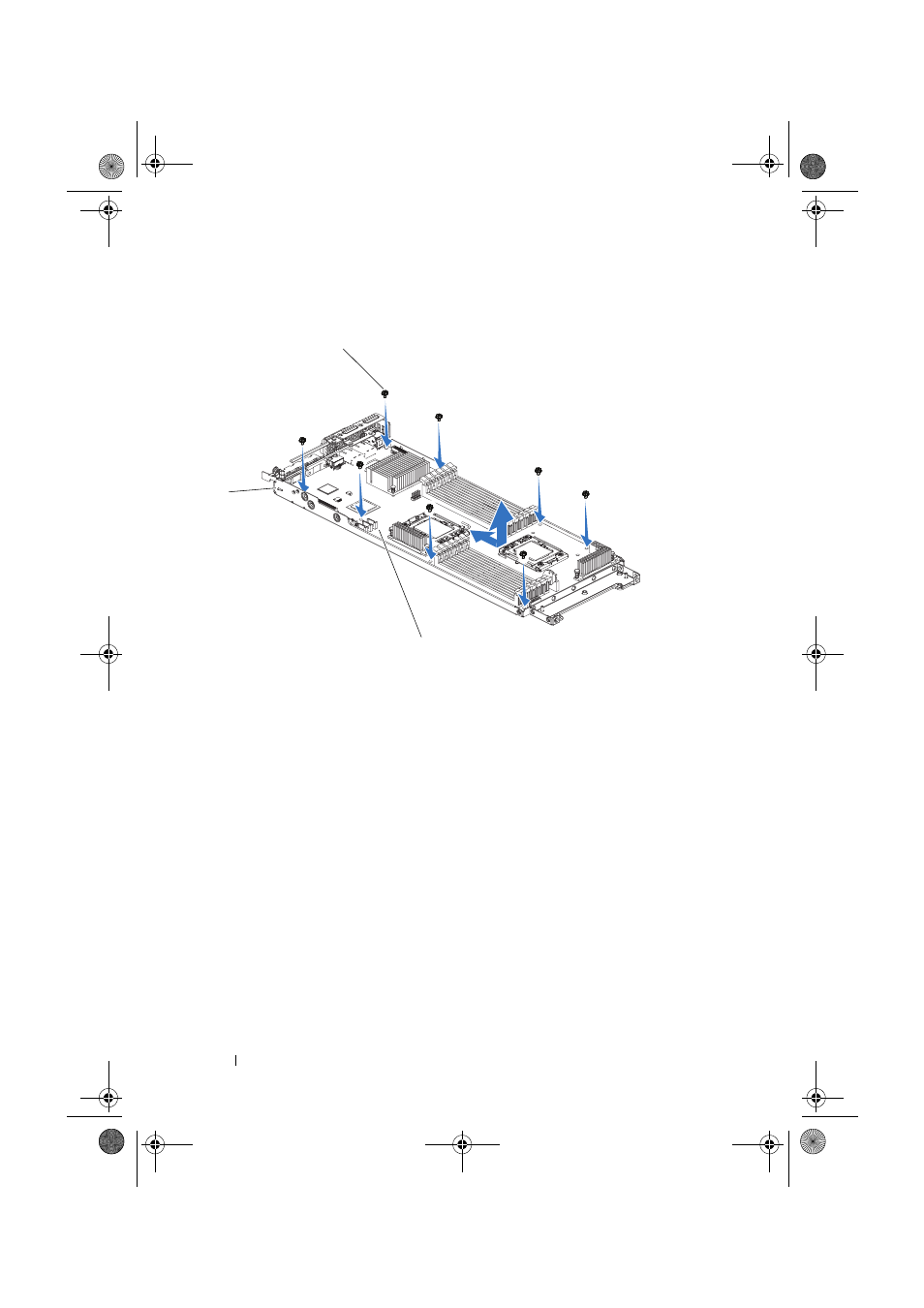

Figure 3-21. Removing and Installing System Board
Installing a System Board
1 Unpack the new system board.
2 Holding the system board by the edges, slide the system board into
the system-board assembly.
3 Replace the eight screws to secure the system board to the system-board
assembly.
4 Transfer the processors to the new system board. See "Removing a
Processor" on page 66 and "Installing a Processor" on page 68.
5 Remove the memory modules and transfer them to the same locations on
the new board. See "Interposer Extenders" on page 82 and "Installing
Memory Modules" on page 80.
6 Replace the cooling shroud, see "Installing the Cooling Shroud" on
page 64.
1 screw (8) 2 system board
