Installing System Components

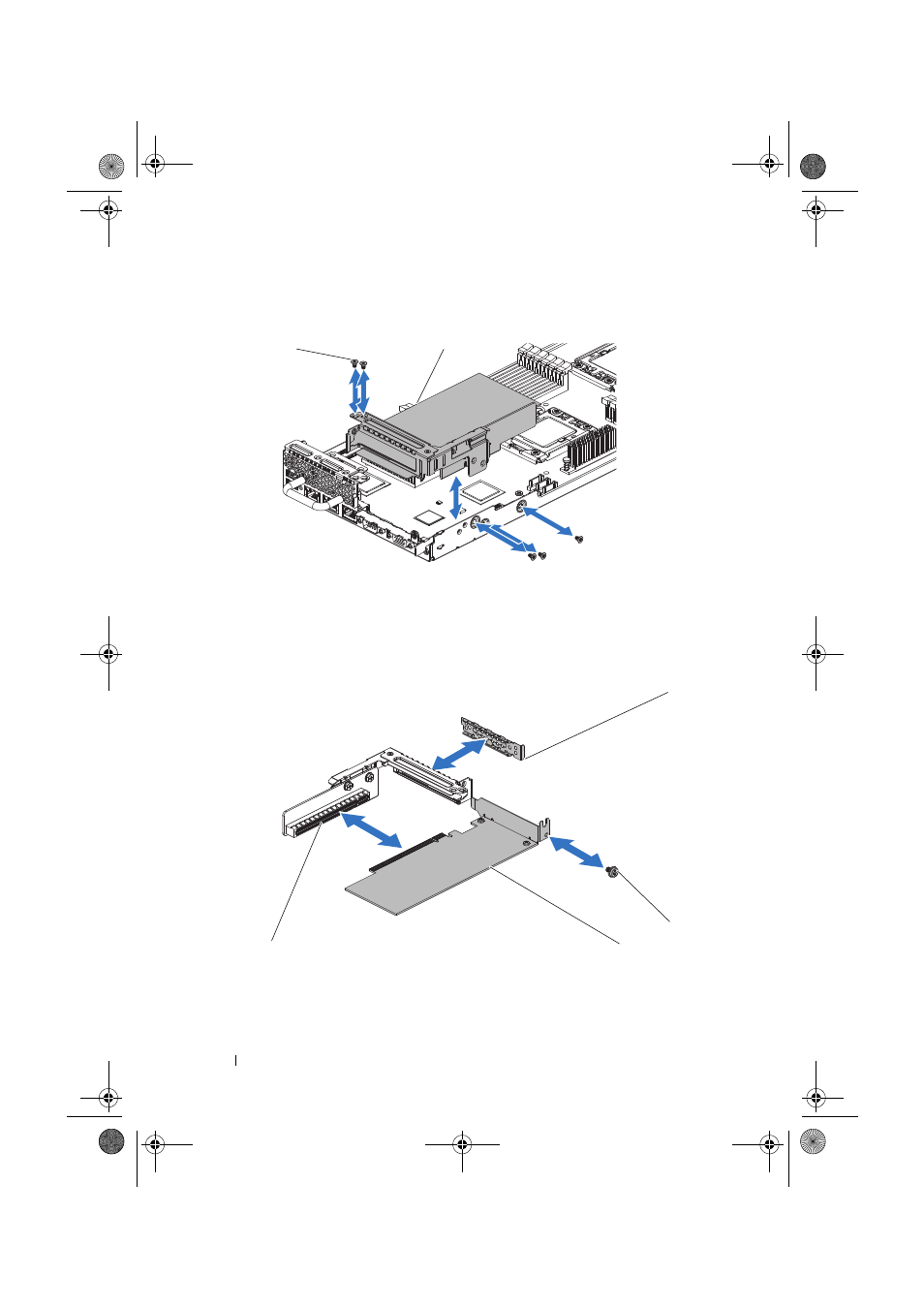

Figure 3-10. Removing the Expansion-Card Assembly
6 Remove the screw securing the expansion card.
Figure 3-11. Removing the Expansion Card
1 screw (5) 2 expansion-card assembly
1 expansion-card slot cover 2 screw
3 expansion card 4 expansion-card connector
1 2
4
1
2
3
