Installing System Components
107
7 Disconnect front panel cables from the fan controller board. See
Figure 5-12.
Note the routing of the cable underneath the tabs on the chassis as you
remove them from the system. You must route these cables properly when
you replace them to prevent the cables from being pinched or crimped.
8 Remove the hard-drive cage from the chassis. See Figure 3-32.

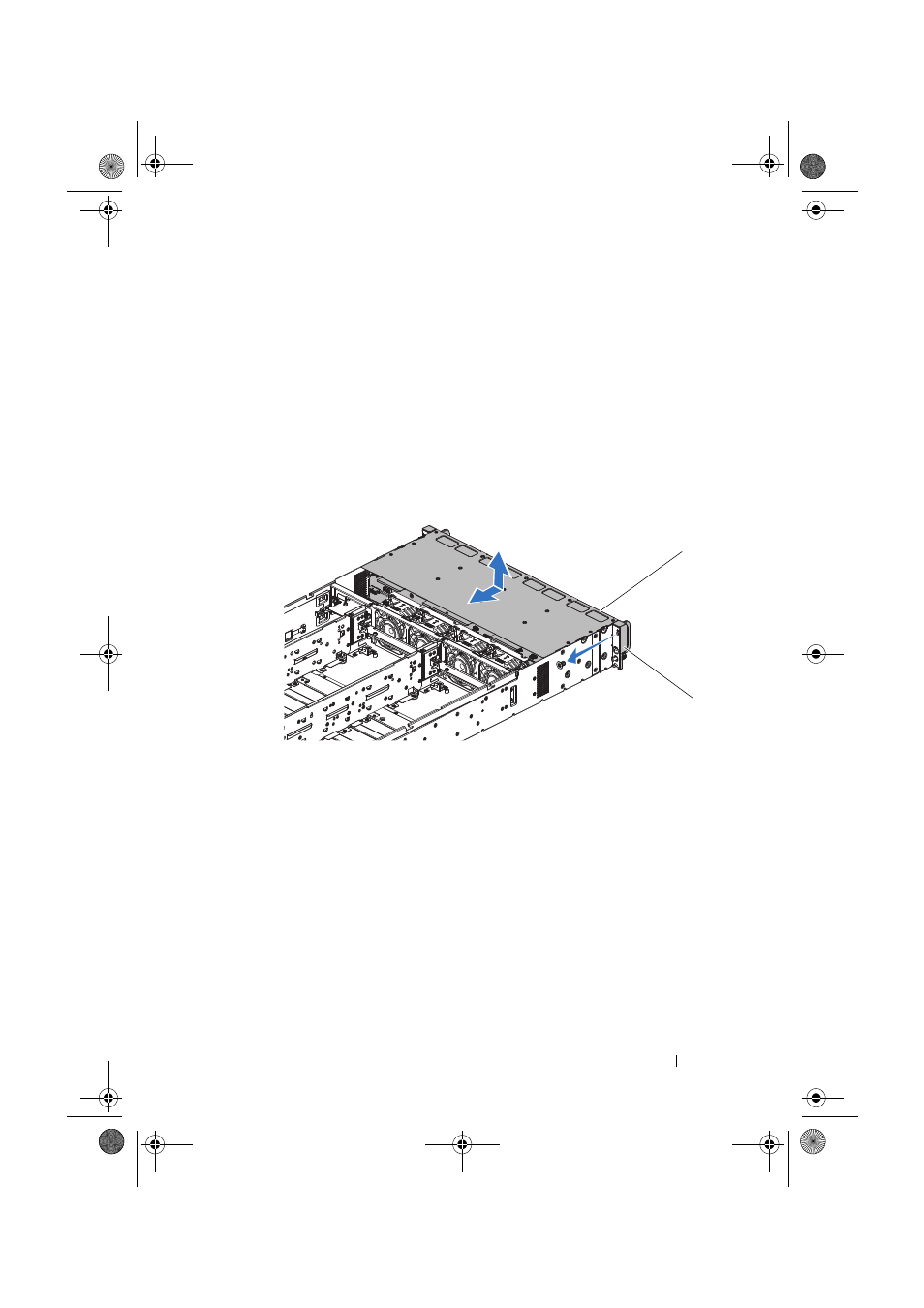

Figure 3-32. Removing and Installing the Hard-Drive Cage
9 Remove the screws that secure the backplane to the hard-drive cage. See
Figure 3-33.
10 Remove the backplane from the hard-drive cage. See Figure 3-33.
1 hard-drive cage 2 front-panel assembly (2)
2
1
