Jumpers and Connectors

135

Interposer Extender Connectors

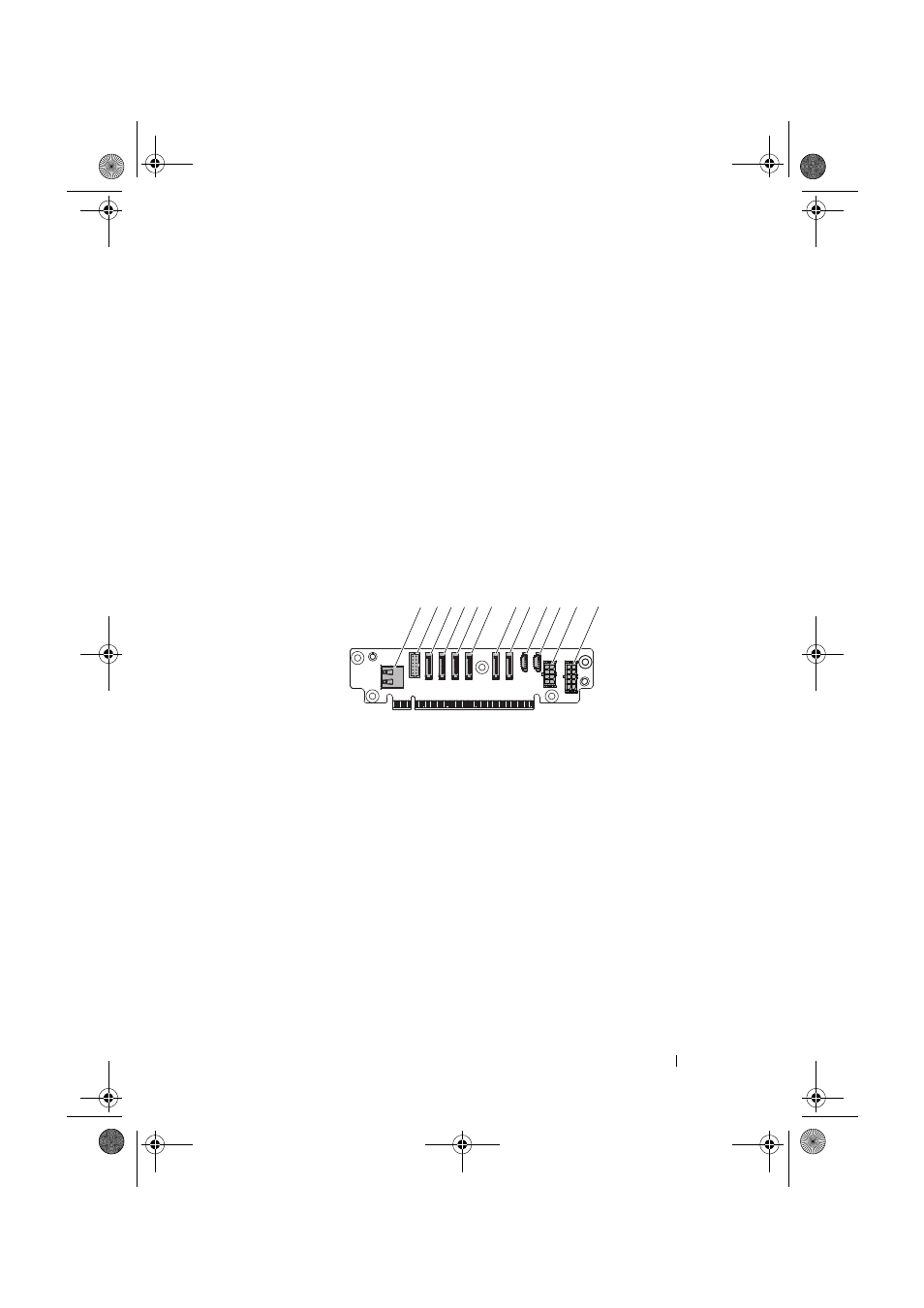

Figure 5-9.

Interposer Extender Connectors

1

UART connector

2

SEL connector

3

Mini-SAS 1 Ports 1-4

4

Mini-SAS 2 Ports 5-8

5

Mini-SAS 3 Ports 9-12

6

Mini-SAS 4 Ports 13-16

7

Mini-SAS 5 Ports 17-20

8

Mini-SAS 6 Ports 21-24

9

Motherboard 1 Mini-SAS connector

10

Motherboard 2 Mini-SAS connector

11

Motherboard 4 Mini-SAS connector

1

USB connector

2

front panel connector

3

onboard SATA2 connector 1

4

onboard SATA2 connector 2

5

onboard SATA2 connector 3

6

onboard SATA2 connector 4

7

onboard SATA2 connector 5

8

onboard SATA2 connector 6

9

SGPIO connector A

10

SGPIO connector B

11

2x4-pin power connector

12

2x5-pin power connector

1 2 3 4 5 6

7 8 9 10 11 12
