Installing System Components

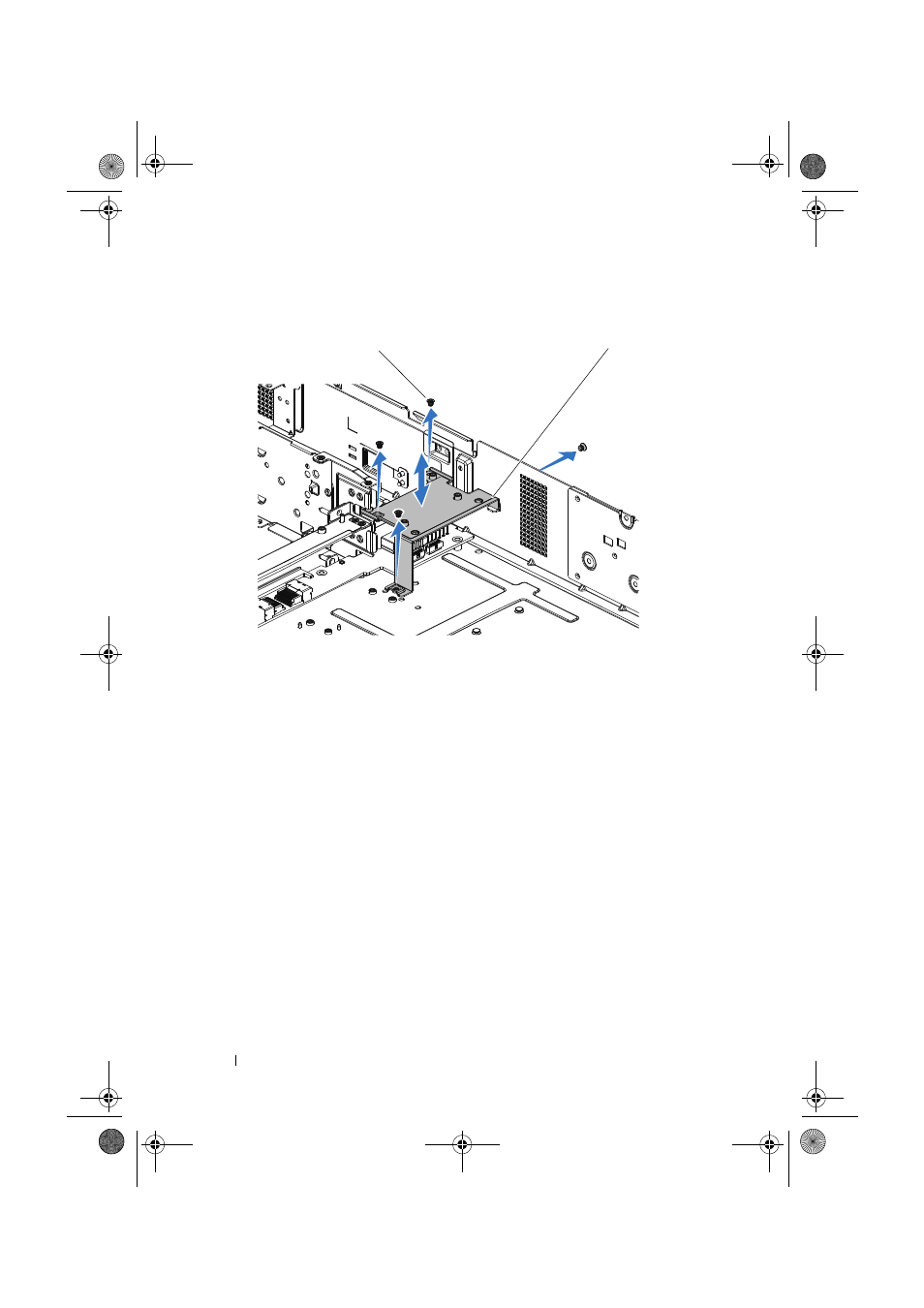

Figure 3-28. Removing and Installing the Mid-Plane Holder Support
12 Remove the screws that secure the mid-plane holder to the chassis.
Figure 3-29.
13 Lift the mid-plane holder out of the chassis. See Figure 3-29.
1 screw (4) 2 mid-plane holder support
1 2
