Installing System Components
101

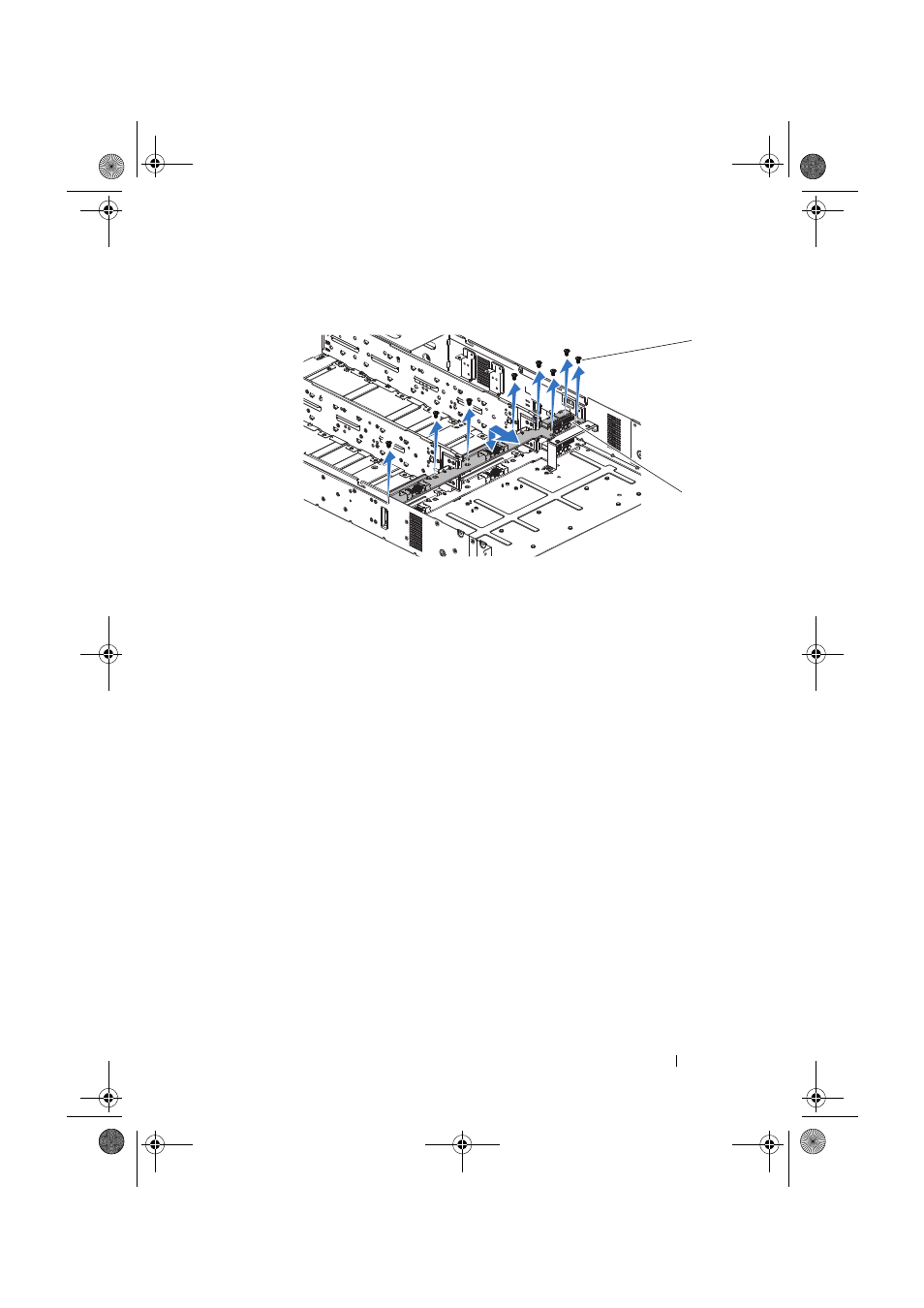

Figure 3-27. Removing and Installing the Upper Midplane
10 Remove the screws that secure the mid-plane holder support to the
chassis. See Figure 3-28.
11 Lift the mid-plane holder support out of the chassis. Figure 3-28.
1 screw (9) 2 upper midplane
