Installing System Components

83

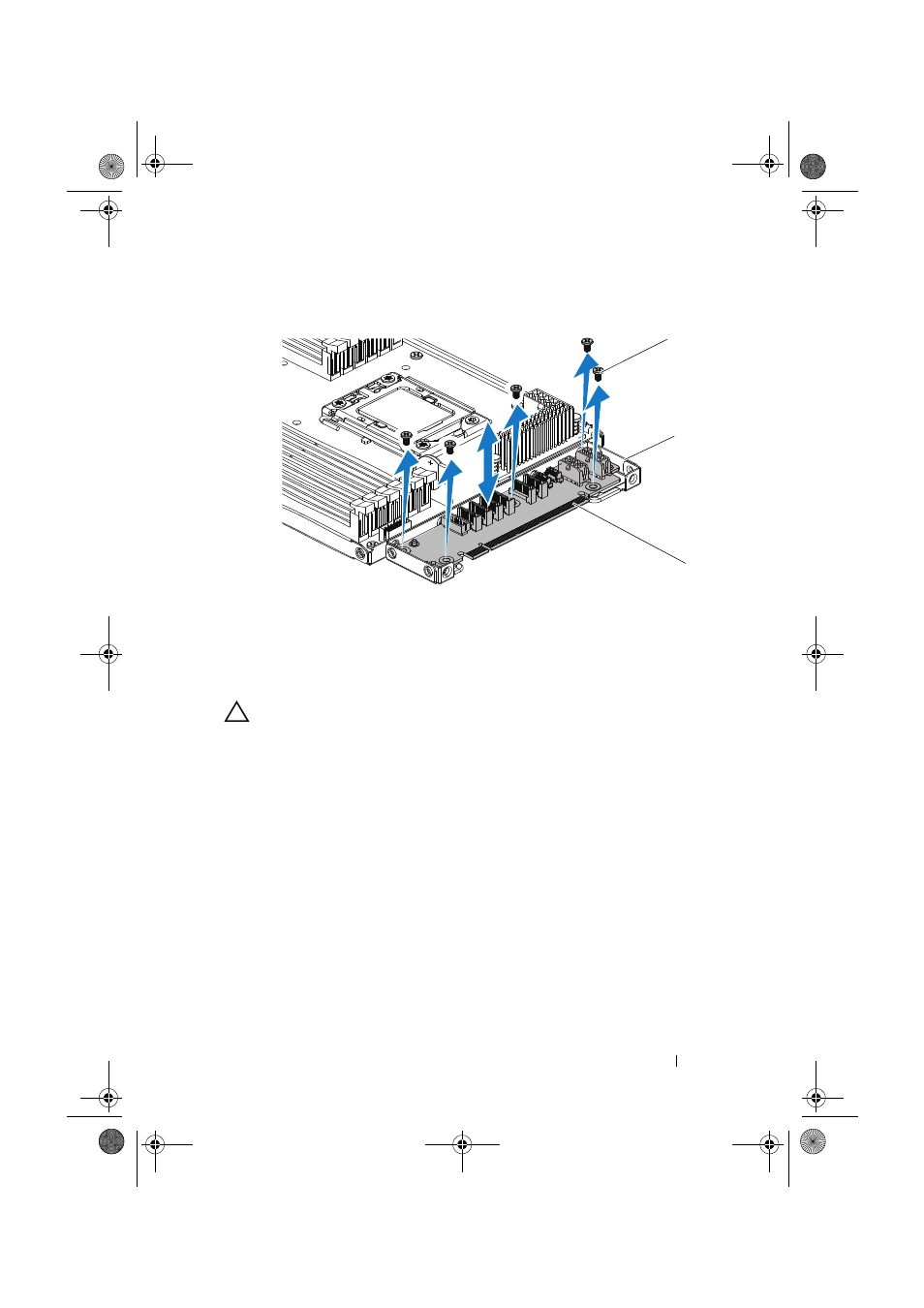

Figure 3-17.

Removing and Installing the Interposer Extender

Installing the Interposer Extender

CAUTION:

Many repairs may only be done by a certified service technician.

You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.

1 Place the interposer extender into the interposer-extender tray.
2 Replace the five screws that secure the interposer extender to the

interposer-extender tray.

3 Connect all the cables to the interposer extender. See Figure 5-9.
4 Replace the system-board assembly. See "Installing a System-Board

Assembly" on page 62.

5 Reconnect the system to its electrical outlet and turn on the system,

including any attached peripherals.

1

screw (5)

2

interposer-extender tray

3

interposer extender

1

2

3
