86
Installing System Components
3 To disconnect the RAID battery cable from the connector on the
PERC card, press the tab on the RAID battery cable connector, and gently
pull the cable connector out of the connector on the PERC card.
4 Press the RAID battery latch and lift the RAID battery to release it from
the RAID battery carrier. See Figure 3-19.
5 Slide and lift the RAID battery away from the RAID battery carrier.
See Figure 3-19.

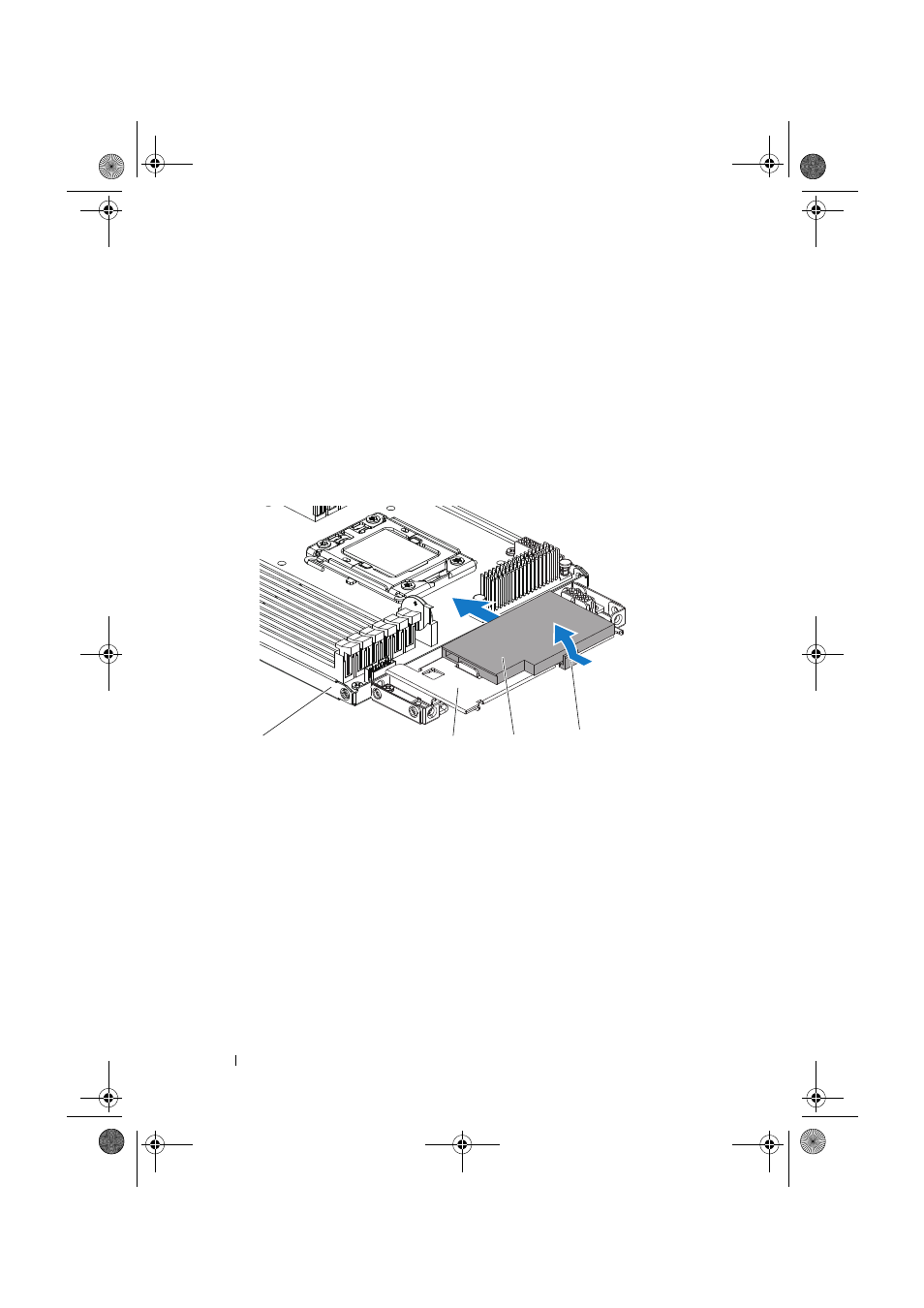

Figure 3-19. Removing and Installing the RAID Battery
Installing the RAID Battery
1 Insert the RAID battery into the battery carrier until the RAID battery
latch locks into place. See Figure 3-19.
2 Connect the RAID battery cable to the connector on the PERC card.
1 RAID battery latch 2 RAID battery
3 RAID battery carrier 4 system-board assembly
2 3 4
1
