88
Installing System Components

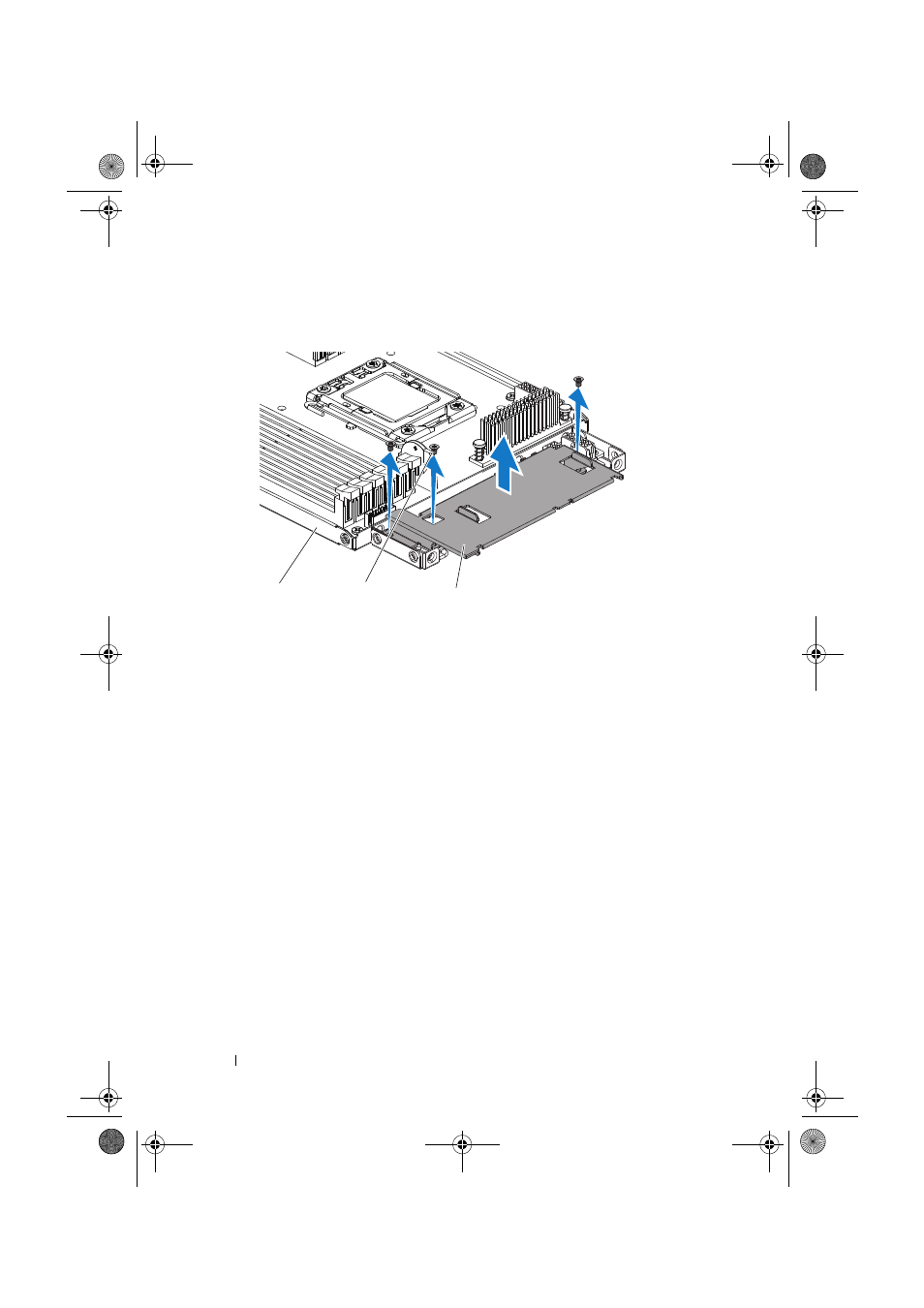

Figure 3-20. Removing and Installing the RAID Battery Carrier
Installing the RAID Battery Carrier
1 Place the RAID battery carrier in position on the interposer extender.
See Figure 3-20.
2 Replace the screws securing the RAID battery carrier to the interposer
extender. See Figure 3-20.
3 Install the RAID battery into the RAID battery carrier. See "Installing the
RAID Battery" on page 86.
4 Replace the system-board assembly. See "Installing a System-Board
Assembly" on page 62.
5 Reconnect the system to the electrical outlet and turn the system on,
including any attached peripherals.
1 RAID battery carrier 2 screws (3)
3 system-board assembly
1
3 2
