• Reserve Space – Indicates how much reserve space is available on the ioMemory device.
100% means the maximum reserve allocated at format time is available; 0% means no
reserve space is available.

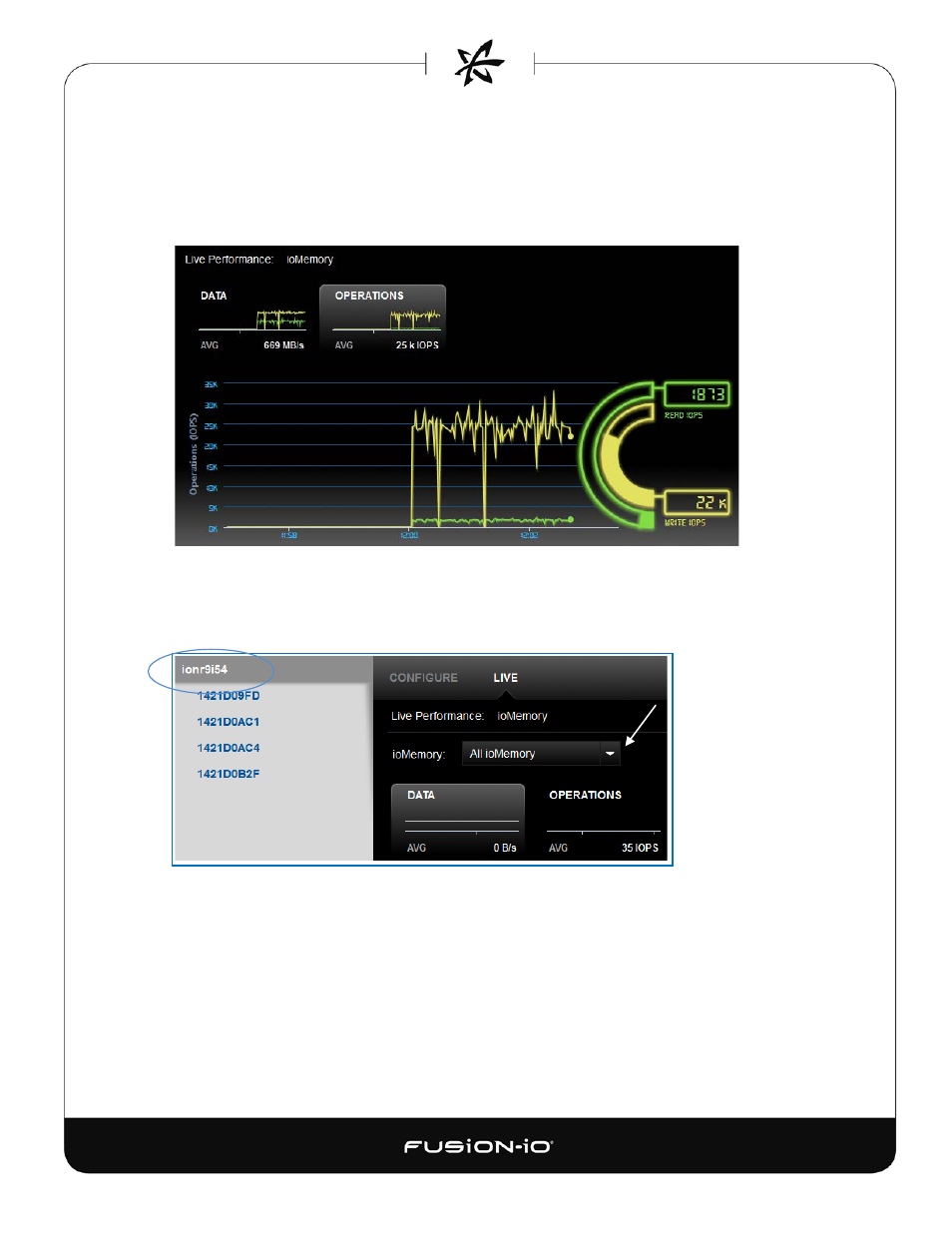

To switch to IOPS monitoring, click the Operations box. An Operations (IOPS) view is shown below:
Viewing Performance for Multiple Devices
You can view aggregated performance statistics for ION Accelerator by selecting a host at the left
of the window (circled below).
An ioMemory selection drop-down appears in the main window. When you click it, you can a) select
“All ioMemory” for the host (default); or b) clear the “All ioMemory” checkbox and select just the
modules you want to monitor. In the example below, two of the ioMemory devices are selected
(green).
