NE131 NE131
www.baumer.com 17
English

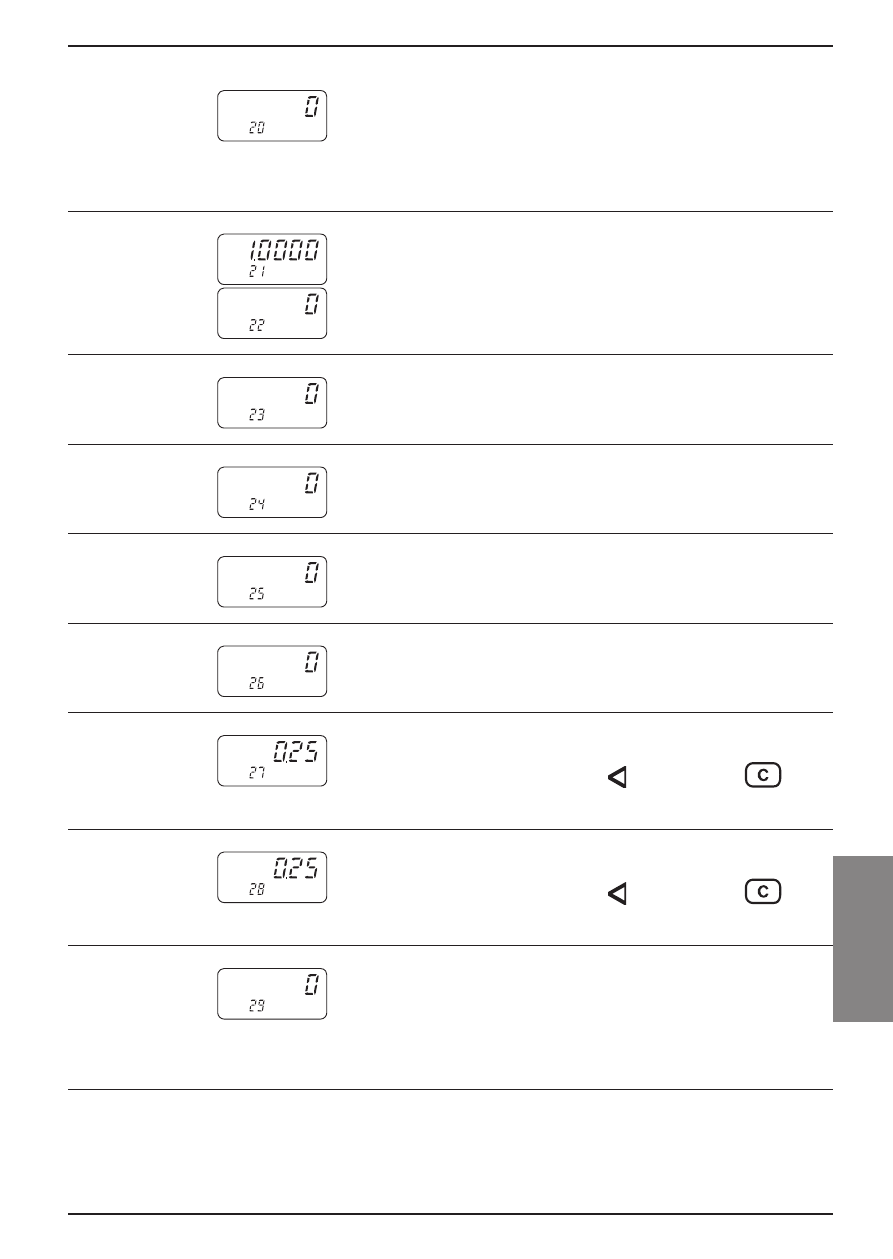

Configuration menu
Multifunction 0 Impulse meter
1 Impulse meter with totalisator ∑
2 Time measurement
3 Time measurement with time totalizer ∑
Scaling factor 0.0001
9999.99 (max.)
Mode 0 adding 0,1,2,3...P1...P2*
1 subtracting P2*...P1...3.2.1,0
Preset 0 Progr. preselection P1 followed by P2
mode* 1 Trailing preselection P1 = differ. prior to P2
Automatic 0 yes At end contact
reset 1 no
C-key 0 released Count
clearing 1 locked
Preset 0 with reset
confirmation 1 without reset
Sign. duration 0.01 (s) to enter briefly press
end contact 99.99 (s) then press .
Latch (permanent signal)
Sign. duration 0.01 (s) to enter briefly press
Leader cont.* 99.99 (s) then press .
Latch (permanent signal)
Signal logic 0 Normally open
with preset is 1 Normally closed
reached 2 P1 normally closed, P2 normally open*
3 P1 normally open, P2 normally closed*
