Baumer CombiTemp - Manual

Page 1 Design and specifi cations subject to change without notice
Installation Manual 5850-008 www.baumerprocess.com
CombiTemp comprises a series of basic elements which can be
combined to various temperature sensors and transmitters. Being a
building block system CombiTemp offers a great fl exibility in respect to
modifi cation, service and maintenance.
The basic components in the system are:
Housing: DIN-formB or Ø80mm stainless steel
Process connection: Refer to the data sheet
FlexTop transmitters: 2201, 2211, 2221, 2231
FlexView 4...20 mA LC-display
BattTemp, Battery operated Pt100 LC-display
The parts can be assembled by the user or delivered assembled and
calibrated, if relevant. However, an Ex ia or Ex n approved product will
always be assembled at the factory.
All documentation can be found at www.baumerprocess.com
Please refer to the relevant data sheets and installation manuals for
each product:
Product Data Sheet Manual
CombiTemp 2000-1 This manual
FlexTop2201 2201-1 2201-8906
FlexTop2211 2211-1 2211-8900
FlexTop2221 2221-1 2221-8900
FlexTop2231 2231-1 2231-8900
FlexView 9401-1 9401-8904
BattTemp 2400-1 2400-8900
CombiTemp Temperature Measuring System
Description
This Ex-approved product is manufactured by:
Baumer A/S
Jacob Knudsens Vej 14
DK-8230 Aabyhoej
Denmark

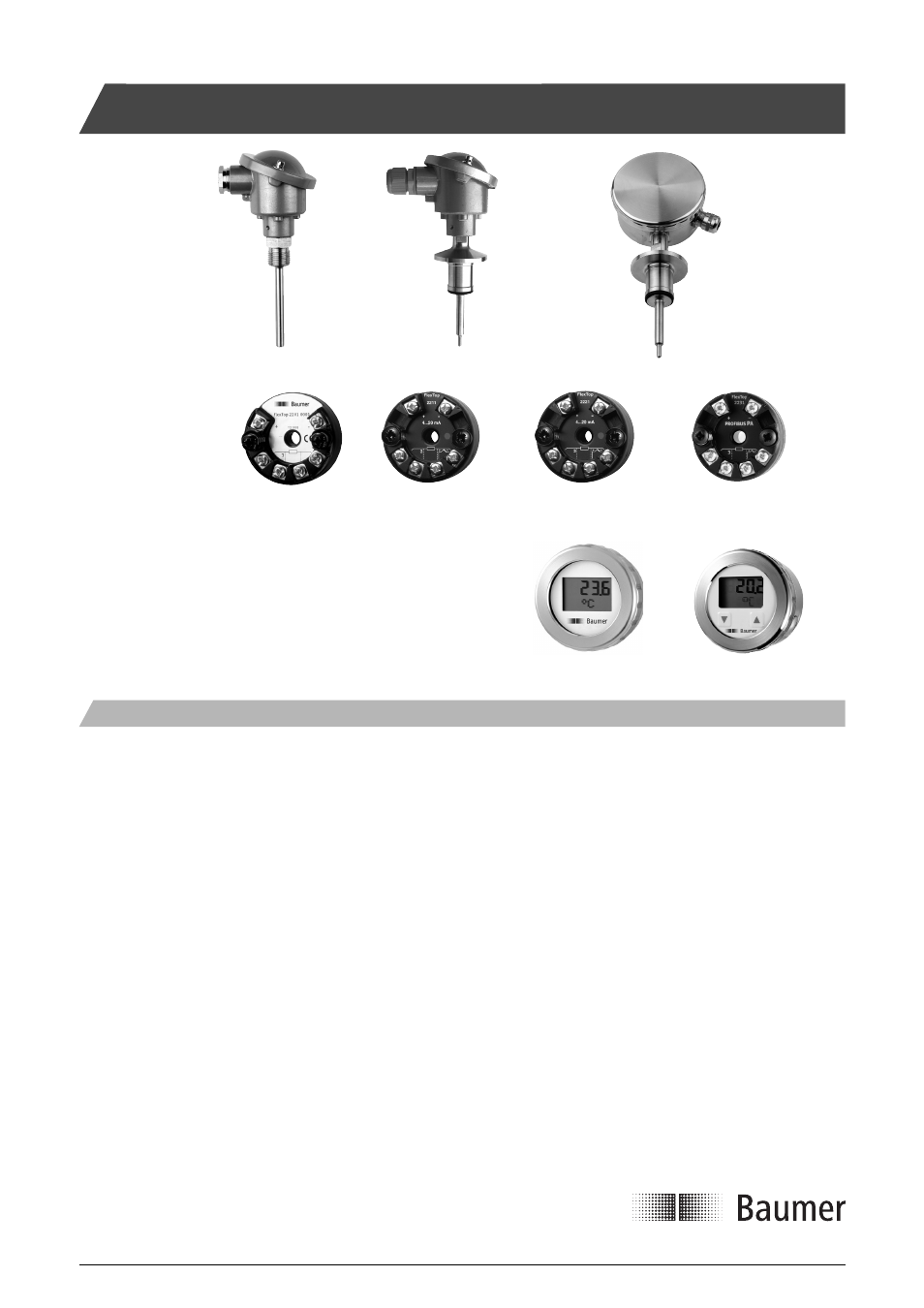

Housing
Transmitters
Displays
The process connections shown
are examples.
FlexView BattTemp
DIN-B
Standard or
Ex ia safety
Ø80 mm
stainless steel
FlexTop 2201 FlexTop 2211 FlexTop 2221 FlexTop 2231
DIN-B
Ex n safety
