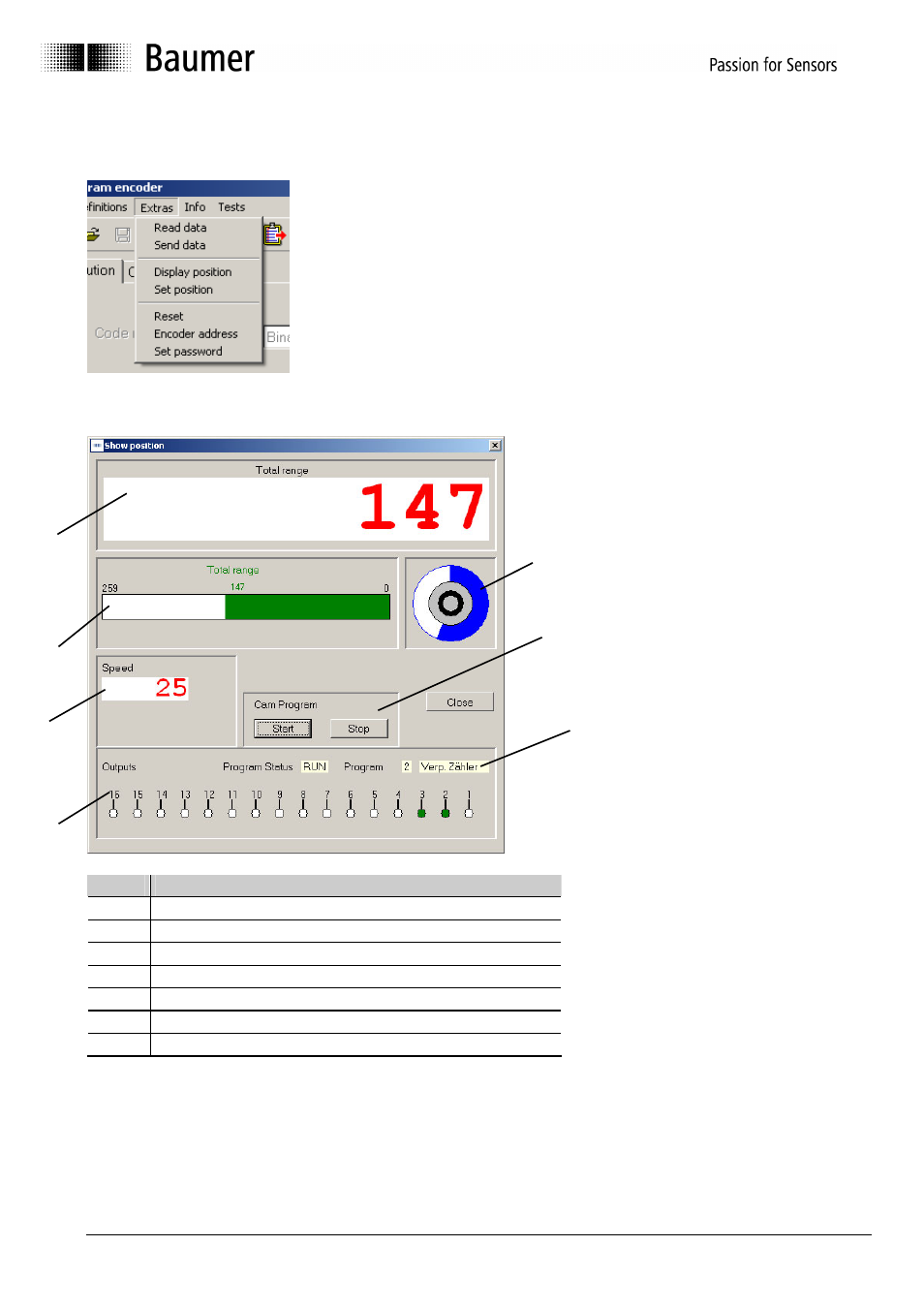

4.6 "Display position" and "Activate cam program" mask
The display module can display the position and the special outputs
of the connected encoder.
This can be selected under "Extras
⇒ Display position".
After the display module starts, the following mask appears.
No. Field
1 Total range
2 Total resolution bar display
3 Display of mechanical shaft position
4 Display of speed (scaled)
5 Display of switching state of outputs
6 Display of active program
7 Start or stop cam program
1
4
6
5
3
2
7
