4.4 "Program encoder" programming mask
The programmable cam-operated switchgroup permits the execution of switching processes.
Here a total of 1,024 cam switching points distributed over a maximum of 16 cam programs
can be set. Each of the 1,024 cams can be assigned to one of the 16 switching outputs.

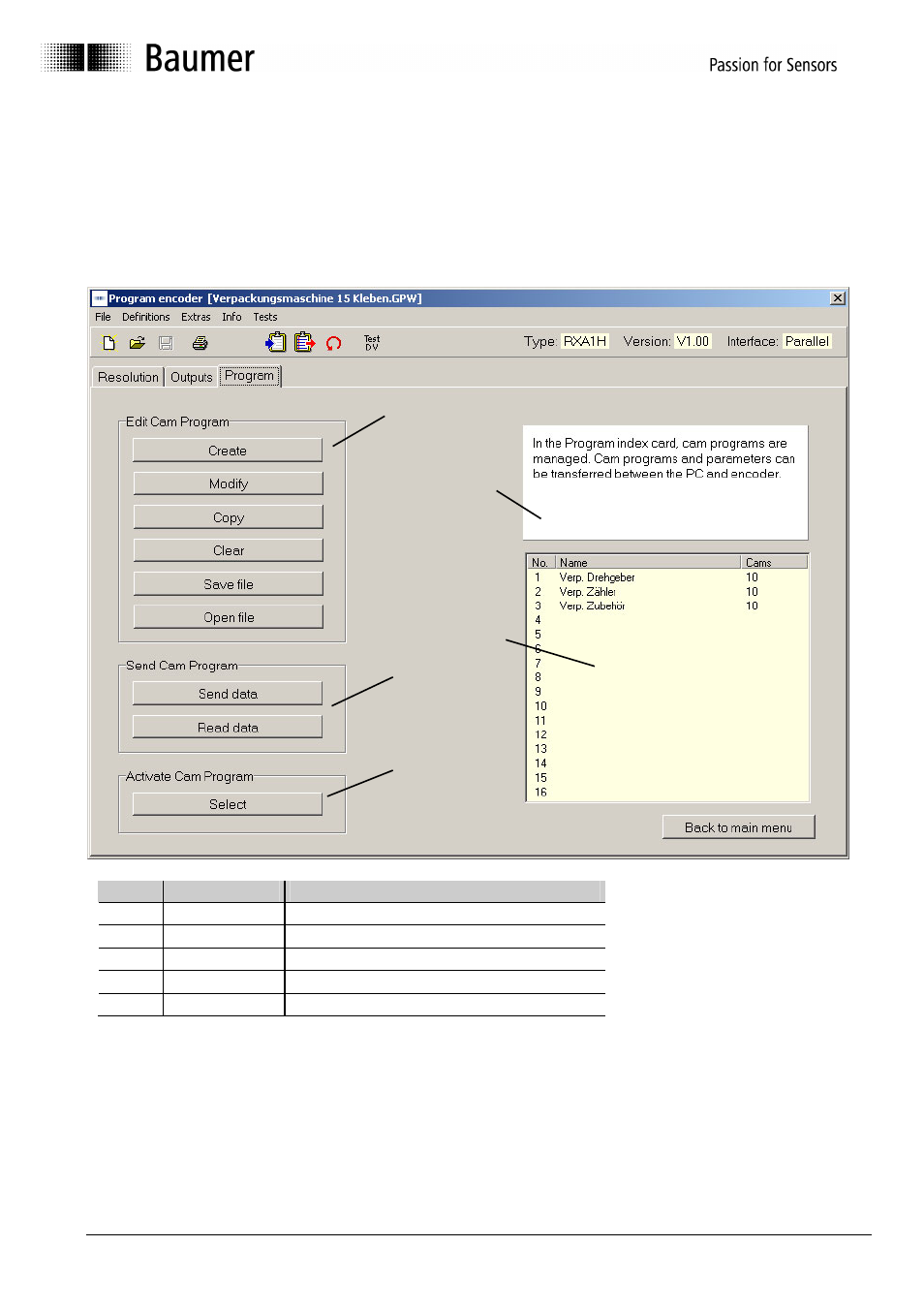

After the "Program encoder" tab is selected, the following window appears:
No. Chapter Field
1 4.4.1 Edit cam program
2 4.4.2 Send cam program
3 4.4.3 Activate cam program
4 4.4.4 Dialog window
5 4.4.5 Program status
1
4
3
2
5
