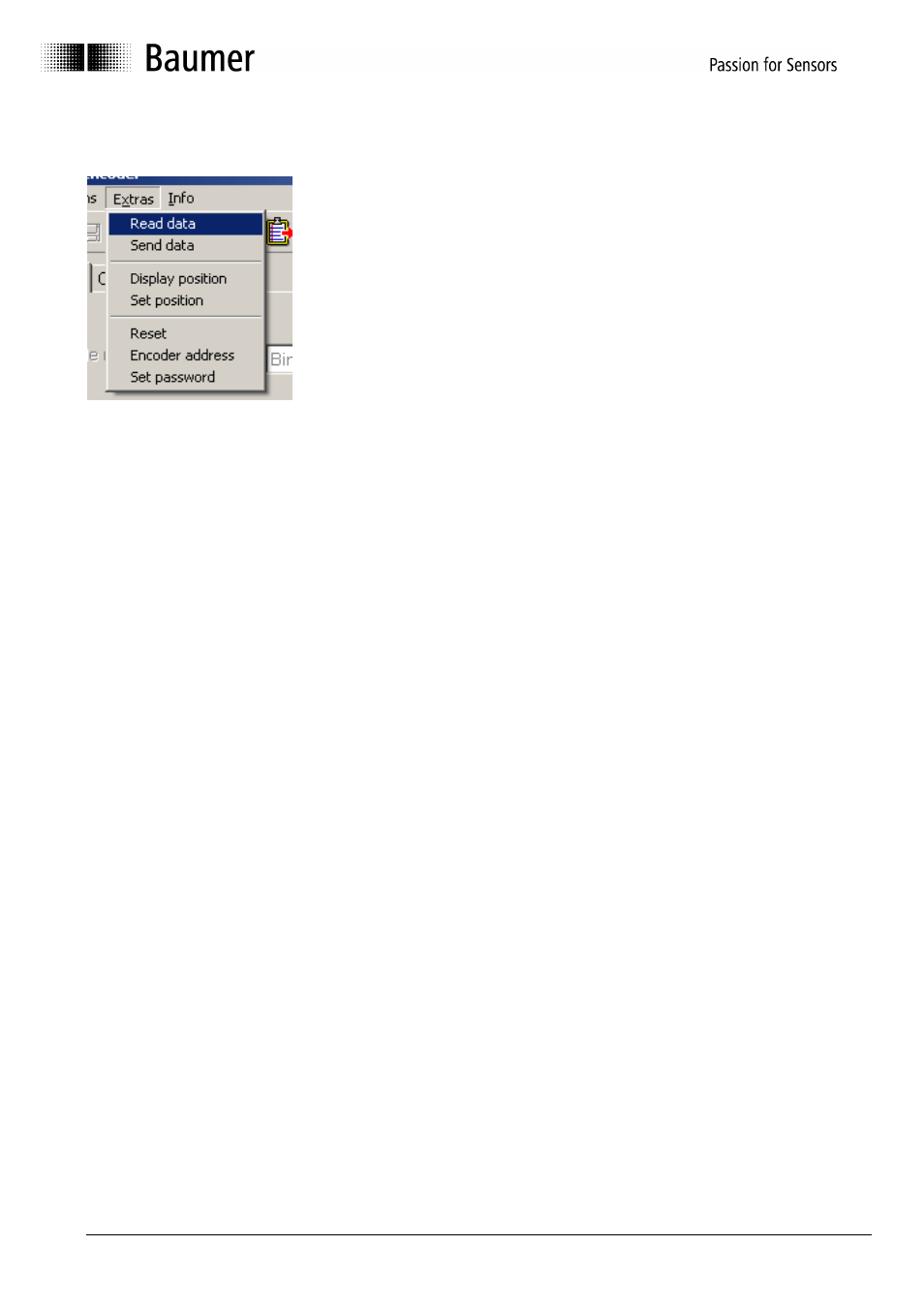

4.1.3 Extras
Read data:
The data are requested from the connected encoder
Send data: The current programming is saved in the encoder
Display position: The "Display position" screen mask is opened (see Chapter 4.6)
Set position: The mask for assigning a position value is opened (see Chapter 4.7)
Reset: The encoder receives a reset command. The effect is identical to
switching the supply voltage off and then on again. No cam programs or
stored settings are deleted or changed.
Encoder address: The address set for the connected encoder can be requested or set.
Set password: A four-place password can be saved in the encoder. ProCam requests
the password during certain actions and compares it with the password
stored in the encoder. Among other things, this concerns the "locked
outputs" and prevents accidental changes. The default password on
delivery is "0000". Permissible characters are 0 - 9 and A - Z, as well as
blank spaces. It must especially be noted that a password can only be
deleted or changed when the password used up until that point is known.
