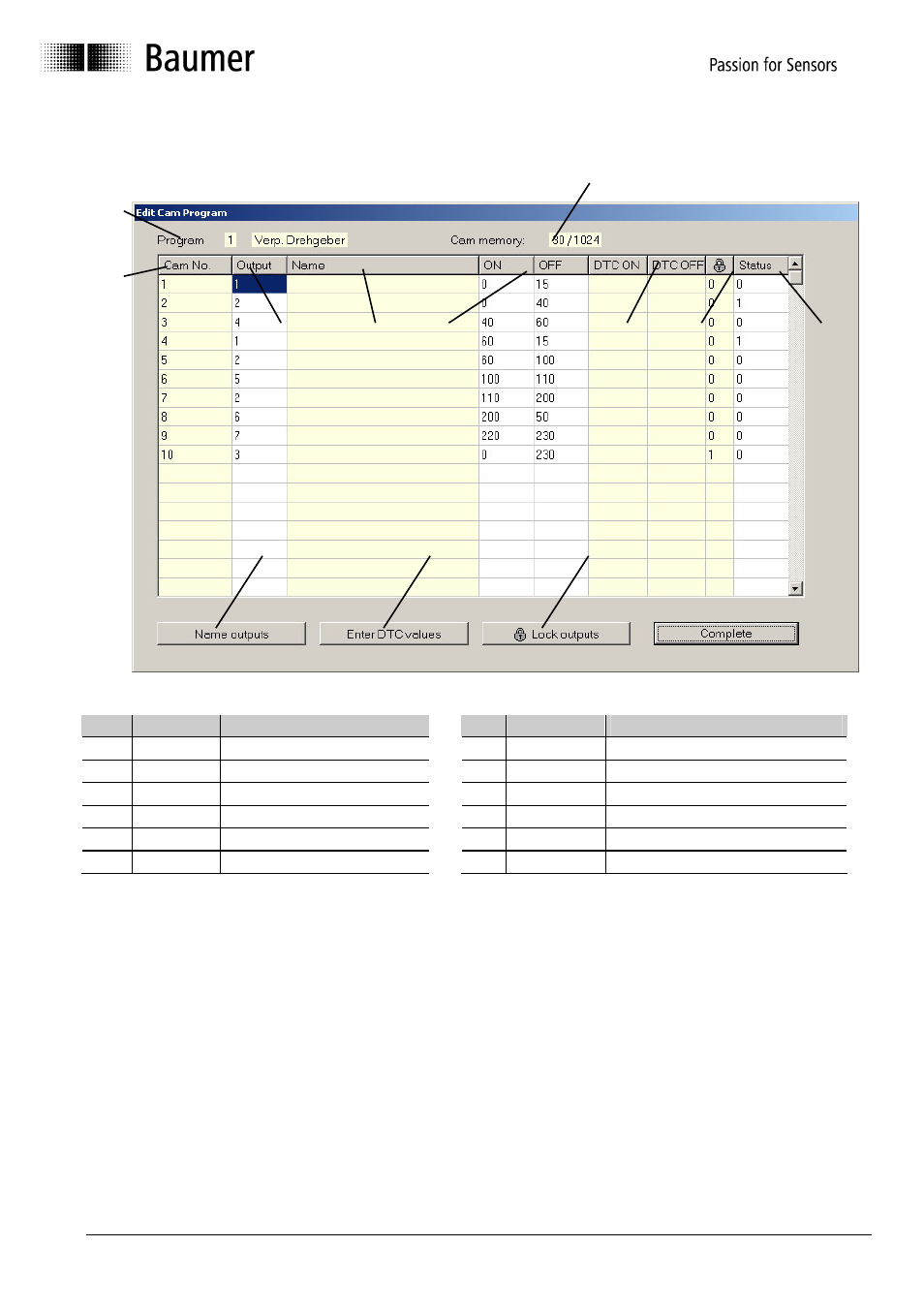

4.5 "Cam" programming mask
After selection the following window appears:
No. Chapter Buttons No. Chapter Buttons
1 4.5.1 Program 7 4.5.7 DTC ON/DTC OFF
2 4.5.2 Cam memory 8 4.5.8 Lock
3 4.5.3 Cam No. 9 4.5.9 Status
4 4.5.4 Output 10 4.5.10 Name outputs
5 4.5.5 Name 11 4.5.11 Enter DTC values
6 4.5.6 ON/OFF 12 4.5.12 Lock outputs
Context messages appear on the mouse pointer which refer to the respective permissible
value range in the table column.
The fields with a colored background cannot be changed directly here. These fields are
automatically displayed depending on the programming of the outputs.
4.5.1 Program
The program number and, if set, the related program name is displayed via the cam table in
the "Program" information line.
1
4 6
3
5 7 8 9
10 11 12
2
