Left end, Right end – Edge Lighting Reveal, 24VDC Plaster-In LED System User Manual
Page 4

SOFT STRIP MALE END
FEMALE POWER
CONNECTOR
LEFT END
(BACK OF SOFT STRIP)
+
-
27
4

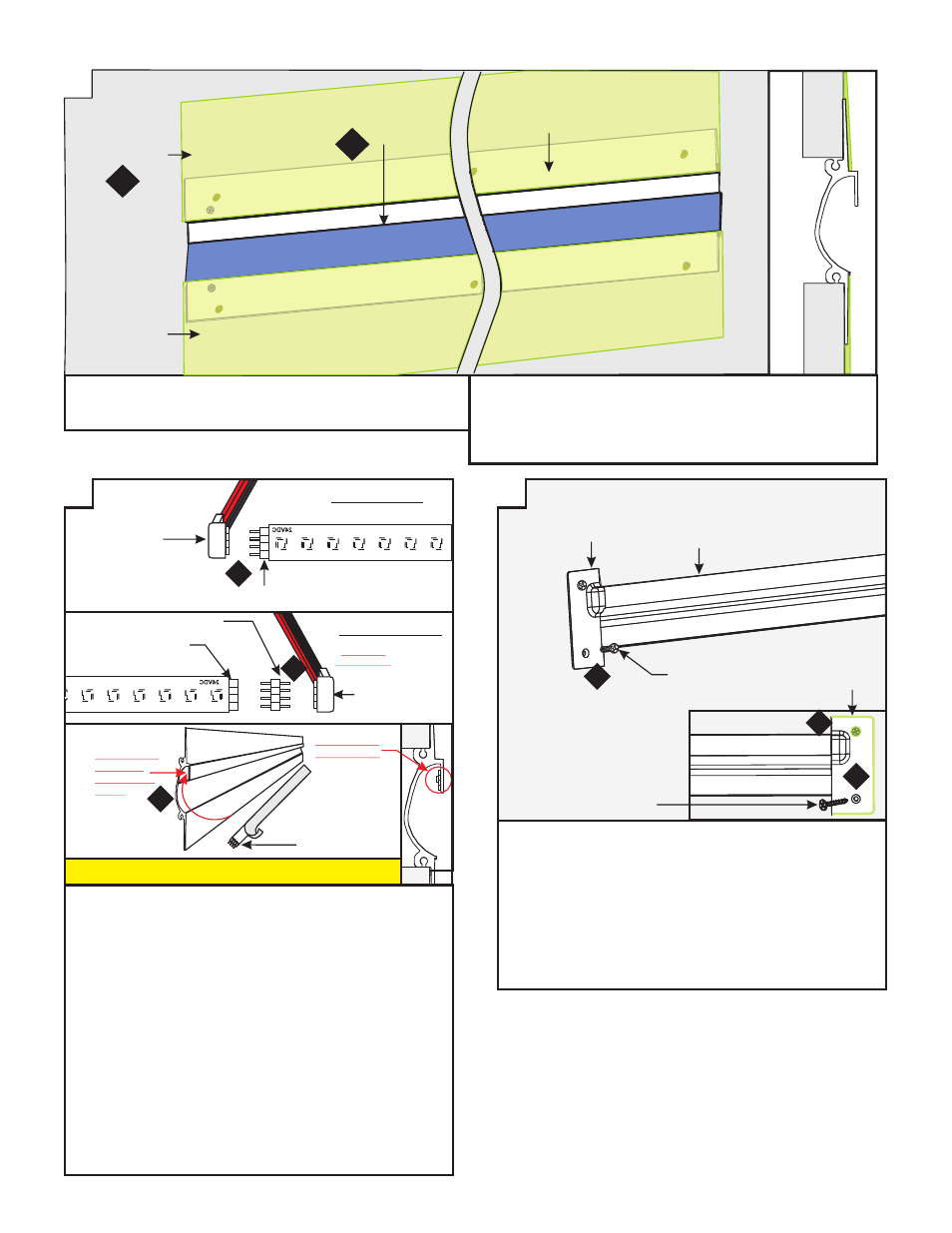

27: If the male end of the soft strip is facing the power
electrical box, then connect the female power connector
to the male soft strip connector so that the red wires of
the power connector are inline with the "+24VDC"
marking of the soft strip.
28: If the female end of the soft strip is facing the power
electrical box, then connect the male adapter to the
female soft strip and power connector so that the black
wires of the power connector are inline with the
"+24VDC" marking of the soft strip.
29: Remove the backing from the soft strip and installed it
inside the channel. Make sure that the soft strip is firmly
attached to the channel.
30: After trimming the soft strip on cuttable section, place
the excess soft strip behind the drywall
N
31: Make sure all wire connections are inside the junction
box and install the electrical box cover with the provided
two screws.
32: OPTIONAL: For the other side of the channel, extra
cover is included that can be mounted to the drywall
using drywall screws to secure in place.
33: OPTIONAL: For cleaner finished look apply plaster over
screw holes and end cap edges.
O
SOFT STRIP
FEMALE END
MALE ADAPTER
FEMALE POWER
CONNECTOR
RIGHT END
SOFT STRIP
MUST BE
INSTALLED
HERE
SOFT STRIP
TEST LED & CONNECTOR, PRIOR TO POWER!!!
SOFT STRIP
GOES HERE
+
-
(BACK OF SOFT STRIP)
REVERSE
POLARITIES
28
29
CHANNEL
COVER
PHILLIPS SCREW
SCREW
31
32
33
PLASTER
22: Cover up the opening section of the Reveal channel with
contractors blue tape to prevent plaster and dust
entering inside the channel.
25: Plaster the channel flange edge to the wall & fill screw holes
(highlighted in green). Finish the wall properly.
26: Remove the blue contractor tape & clean the inside of
the channel.
24: Cover up the opening section of the Reveal channel with
contractors blue tape to prevent plaster and dust
entering inside the channel.
M
WALL
BLUE
CONTRACTORS
TAPE
25
CHANNEL
PLASTER
PLASTER
24
SIDE
VIEW
