Edge Lighting Reveal, 24VDC Plaster-In LED System User Manual
Page 2

2

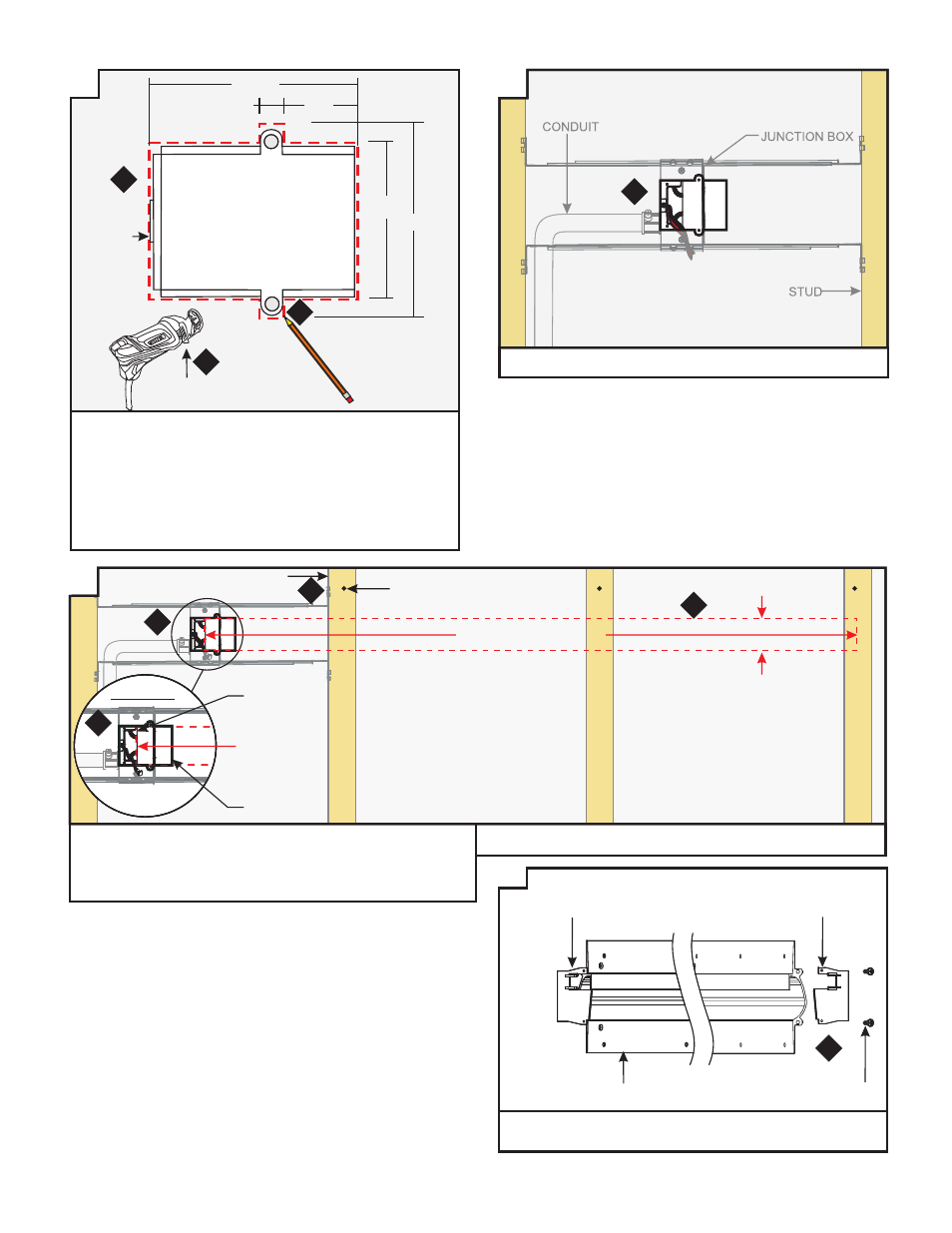

8: Mark a location on the drywall where the junction box will
be located.
9: Trace the drywall cutout template onto the drywall at
the junction box location.
10: Remove drywall cutout template and cut out the
marked area using a "Rotozip” tool.
E
2.80"
2.25"
3.00"
1.06"
0.35"
DRYWALL CUTOUT
TEMPLATE
DRYWALL
8
12: Using the drywall opening as reference, mark 2.25" wide
lines the complete length of the channel along the drywall.
13: Cut out the mark line on the drywall.
G
14: Mark the location to the studs for future reference.
CLOSE UP
DRYWALL
OPENING
JUNCTION
BOX SLOT
CHANNEL
START
STUD
MARKING
LENGTH OF CHANNEL
13
121
12
14
2.25" CUTOUT
ROTOZIP
9
DRYWALL
CUTOUT
TEMPLATE
10
11:Install the drywall.
F
15: Remove one included power feed end cap from the
channel end opposite the junction box.
H
POWER FEED
END CAP
REVEAL
CHANNEL
SCREW
15
POWER FEED
END CAP
CONDUIT
JUNCTION BOX
STUD
11
