4

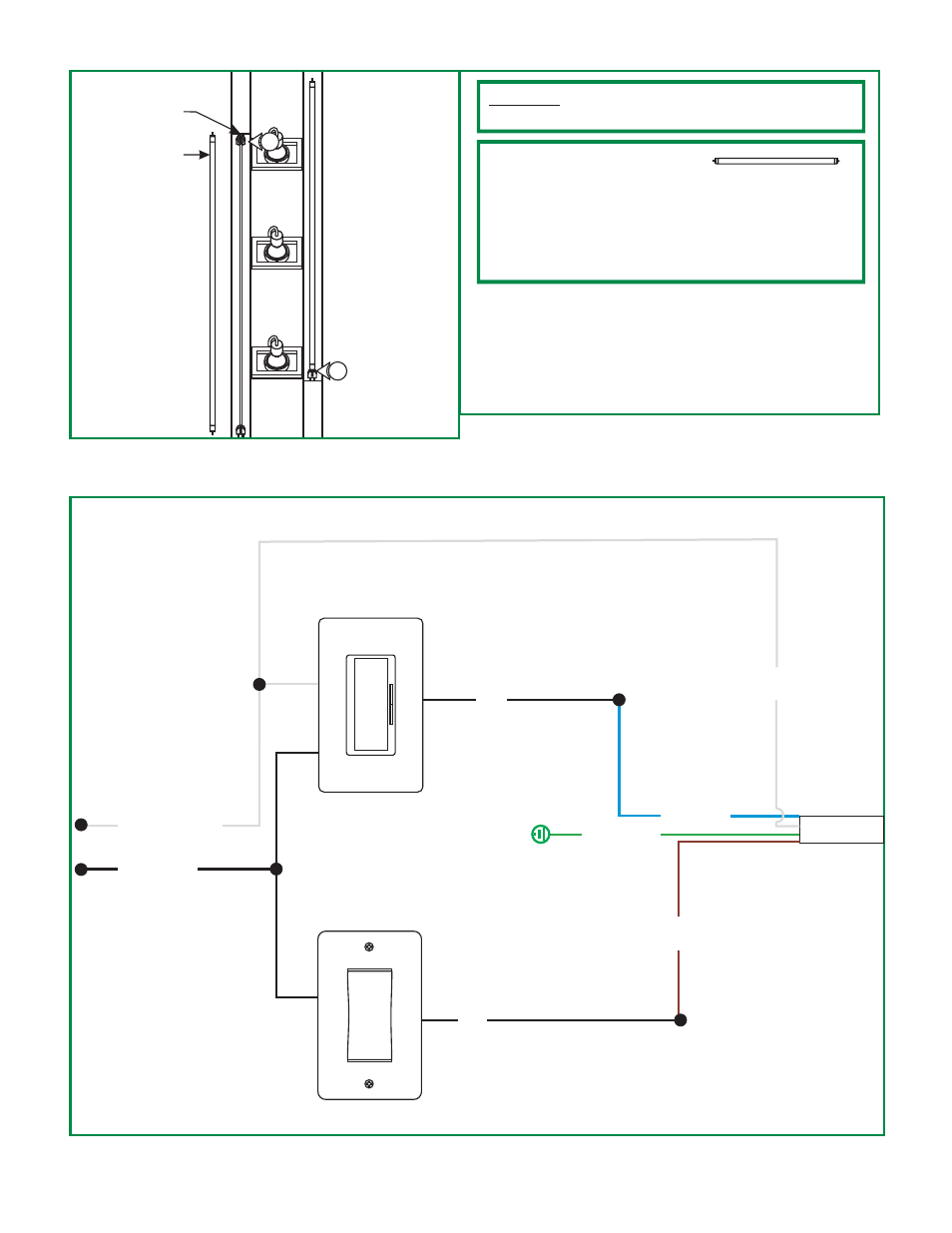

Use MAX 24 Watt Type T5, Linear
Fluorescent Lamp For LYRA-26-SA.
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture. SOCKET
LAMP
Use MAX 39 Watt Type T5, Linear
Fluorescent Lamp For LYRA-48-SA & LYRA-96-SA.
Use MAX 54 Watt Type T5, Linear
Fluorescent Lamp For LYRA-60-XX & LYRA-120-XX.
4: Line up the lamp pins on both socket ends.
5: Insert the lamp pins all the way into the sockets and turn
the lamp to lock it in place. Repeat this step for the other
lamp.
6: Repeats steps 1 & 2 for the remaining lamps.
4
6
Wiring Diagram
ON/OFF SWITCH
300W ELECTRONIC LOW
VOLTAGE DIMMER WITH
NEUTRAL CONNECTION
HOT 120VAC
NEUTRAL 120VAC
FIXTURE WIRES
BLUE WIRE
(HALOGEN)
BROWN WIRE
(FLUORESCENT)
HOT
GROUND GREEN WIRE
CLEAR WIRE
(NEUTRAL)
HOT
