Model 7i Digital Force / Torque Indicator

User’s Guide


2

1 OVERVIEW


1.1 List of included items

Qty. Part

No.

Description

1 12-1049

Carrying

Case

1

08-1022

AC adapter body with US, EU, or UK prong

1

08-1026

Battery (inside the indicator)

1

-

Certificate of conformance

1 09-1165

USB

cable

1

-

Resource CD (USB driver, MESUR

TM

Lite software,

MESUR

TM

gauge DEMO software, User’s Guide)


1.2 General Overview


The 7i is a universal indicator designed for displaying
measurements from interchangeable Mark-10 Plug &
Test

TM

sensors. Sensor capacities are available from

0.25 to 10,000 lbF (1 N to 50 kN) of force, and from
10 ozFin to 5,000 lbFin (7 Ncm to 550 Nm) of torque.
These sensors can be handheld or mounted to a
fixture or test stand for more sophisticated testing
requirements.

Plug & Test

TM

sensors are used with either the 7i, 5i,

or 3i indicators. They may be disconnected from one
indicator and connected to another without the need
for re-calibration or re-configuration. All such data is
saved within a PCB located inside the smart
connector.


The model number, serial number, and capacity of
the sensor are identified in the rectangular label
located on the Plug & Test

TM

connector. The model

and serial numbers are also identified in the Information screen of the indicator.

1.3 Accuracy and Resolution

Indicator accuracy must be combined with sensor accuracy to determine the total accuracy of the system.
Since sensors may be used with either the 7i, 5i or 3i indicator, the accuracy of the indicator being used
must be identified and taken into account, as follows:

Indicator Model

Accuracy

7i / 5i

±0.1% of full scale

3i

±0.2% of full scale


The total system accuracy can be calculated by adding the sensor accuracy and indicator accuracy.
Refer to the following examples:

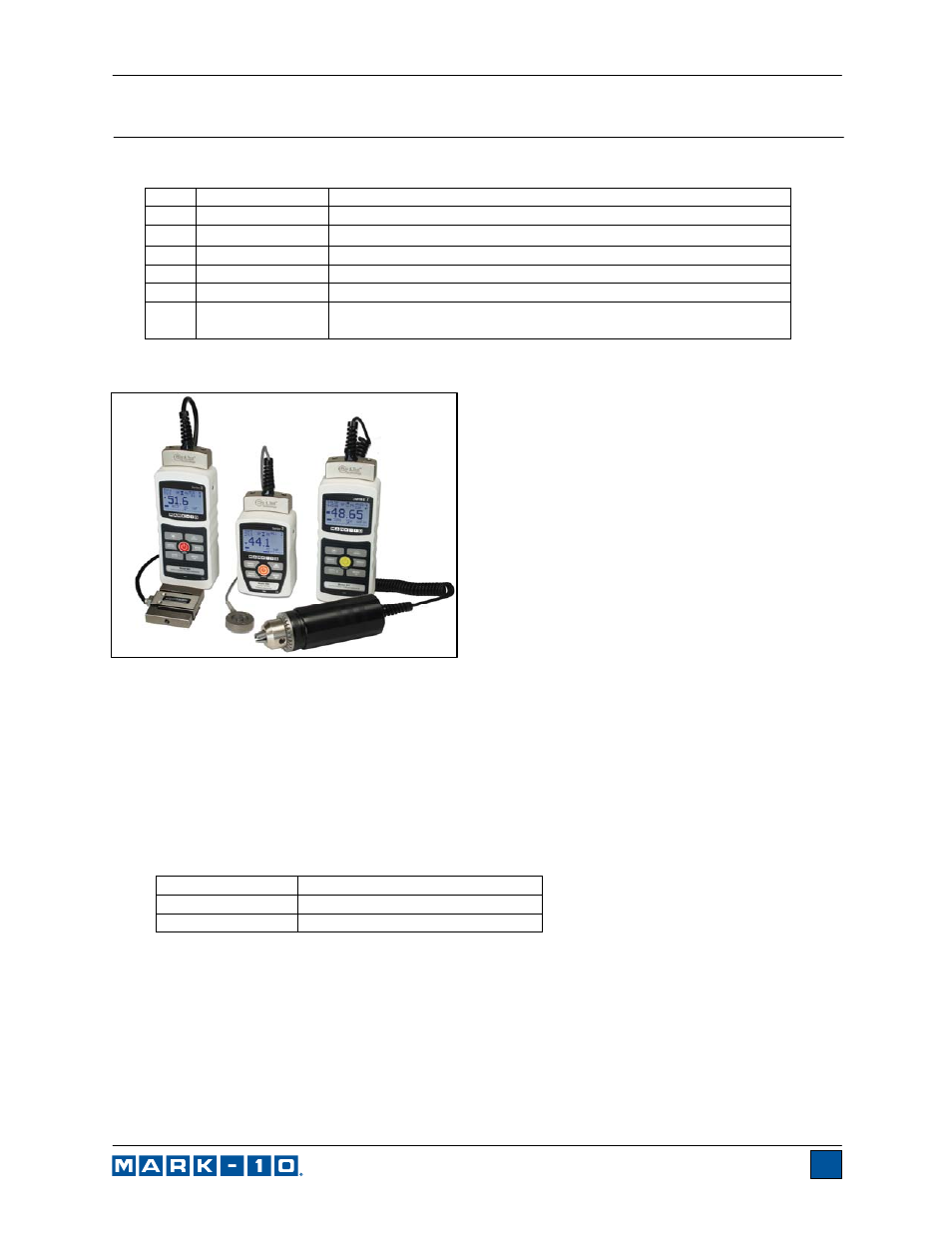

From left to right: Model 5i indicator with Series R01 force
sensor, Model 3i indicator with Series R02 force sensor, and
Model 7i indicator with Series R50 torque sensor
