Model 7i Digital Force / Torque Indicator User’s Guide
14
8.1 Real Time (RT)
The primary reading corresponds to the live measured reading.
8.2 Peak Compression (PC) / Peak Clockwise (PCW)
The primary reading corresponds to the peak compression or peak clockwise reading observed. If the
actual load decreases from the peak value, the peak will still be retained in the primary reading area of
the display. Pressing ZERO will reset the value.
8.3 Peak Tension / Static Coefficient of Friction (PT) / Peak Counter-clockwise (PCCW)
This is the same as Peak Compression, but for tension or counter-clockwise readings. If the COF unit is
selected, the reading in this mode represents the static coefficient of friction.
Note: The static COF is always displayed as the peak tension value in the upper right corner of the
display.

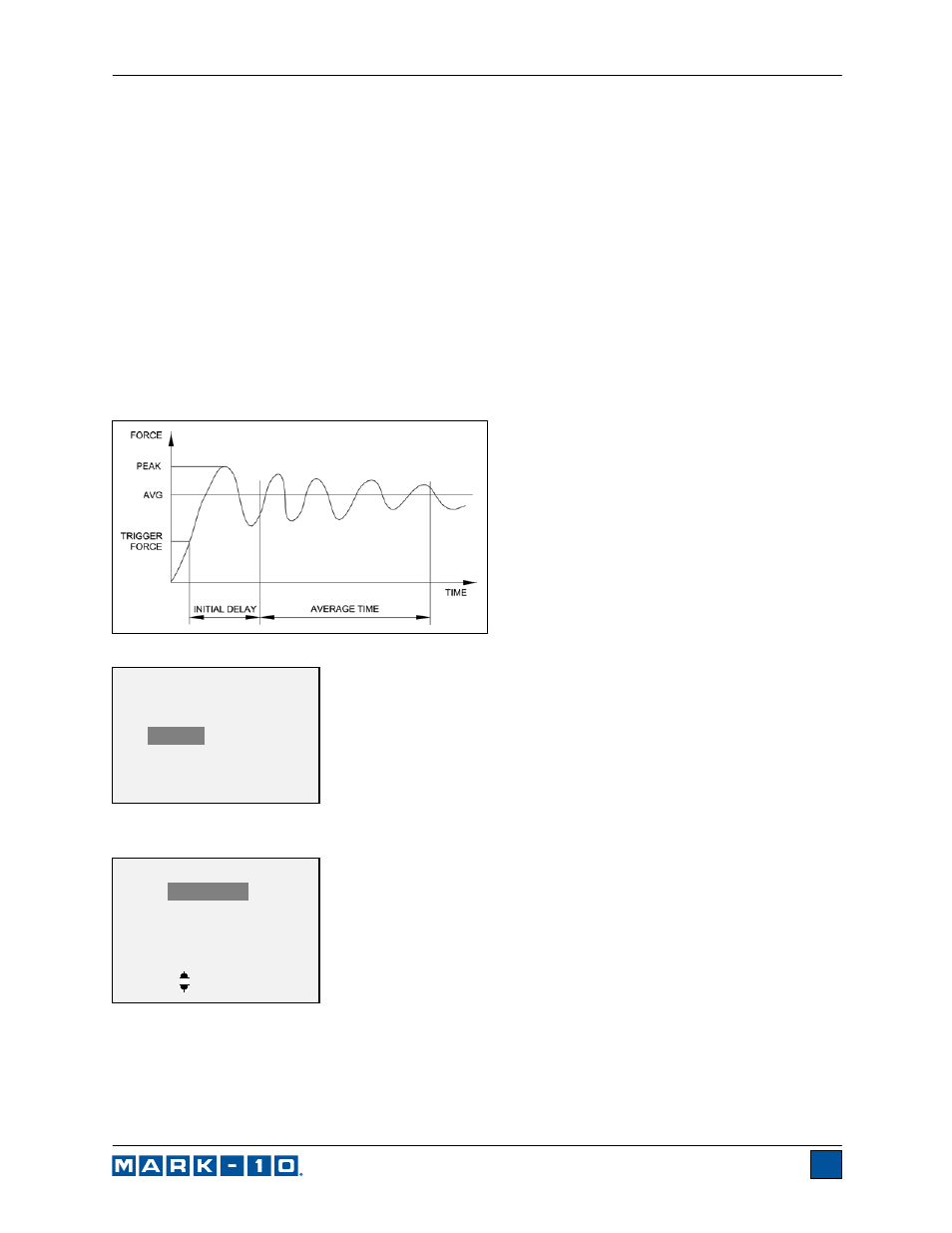

8.4 Average Mode / Kinetic Coefficient of Friction (AVG)
Average mode is used to obtain an average load
over a specified period of time. This reading also
represents the kinetic coefficient of friction, if the
COF unit is selected. Applications include
measurement of peel force, COF, muscle
strength, frictional force or torque, and other
tests requiring time-averaged readings.
Before the parameters of Average Mode can be
configured, it must be enabled. To do so, select
Average Mode from the menu, scroll to
Enabled and press ENTER. The display
appears as follows:
Then, scroll to Settings and press ENTER to configure the parameters. The parameters are as follows:
AVERAGE MODE SETTINGS
Initial Delay
0.0
Averaging Time
5.5
Trigger Load
1.200 lbFin
AVERAGE MODE
Disabled
*
Enabled
+ Settings
+ Auto Settings
Output Pin: NONE
