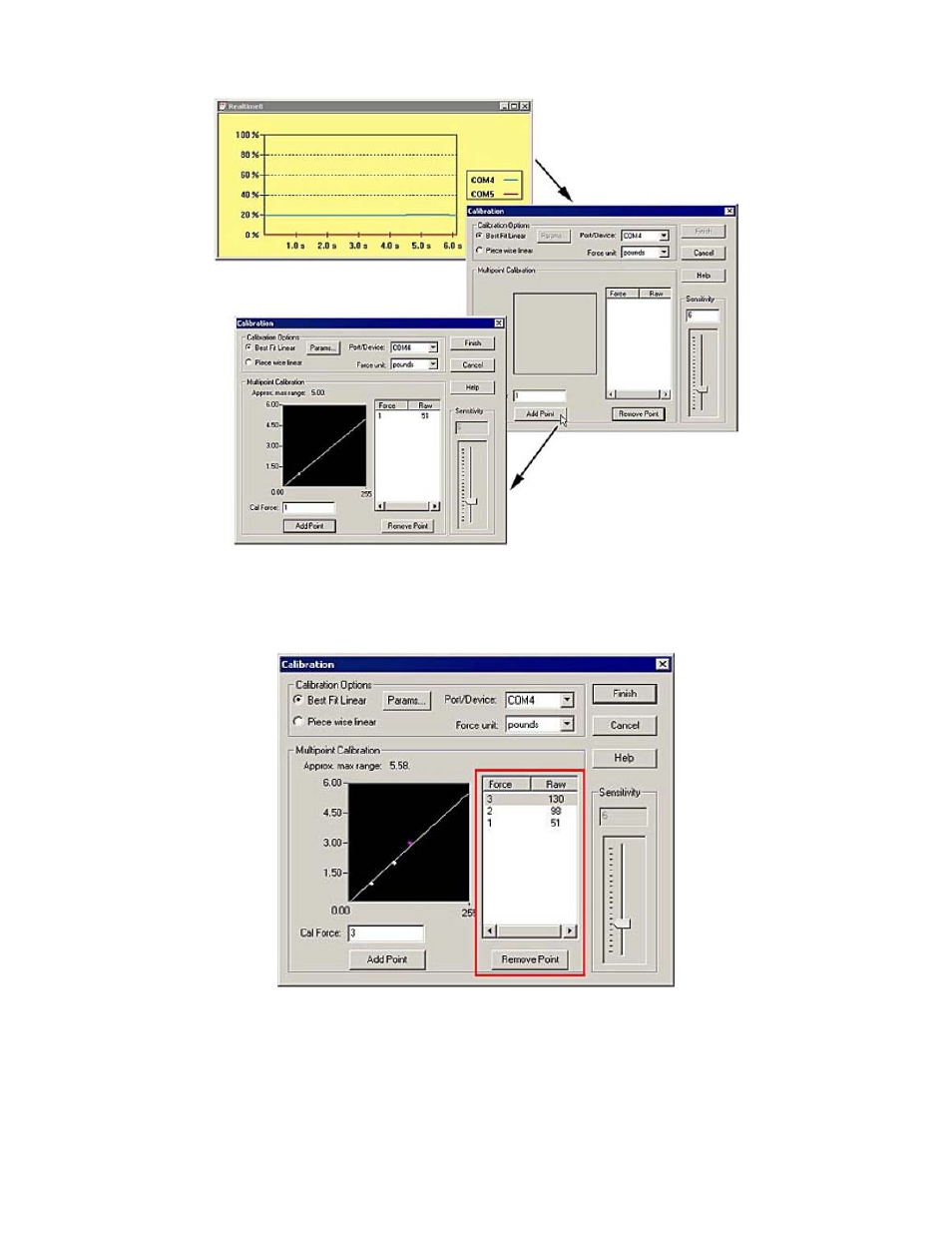

9. Click
Add Point
. A point will appear in the Multipoint Calibration box (shown above).
10. Repeat the steps with as many known loads as you wish.
11. If you wish to discard any points, click to highlight them in the Force/Raw column. Then select Remove Point.
12. If you have the Multi-Handle ELF system, continue selecting Port/Devices and adding as many known loads as
you wish, until at least one calibration point has been added for each sensor.
13. Once all Calibration points have been added for all Ports/Devices, click Finish. The Real-time window will now
display force in units of force rather than raw force.
