CF10 25 6/24/08 Rev. H

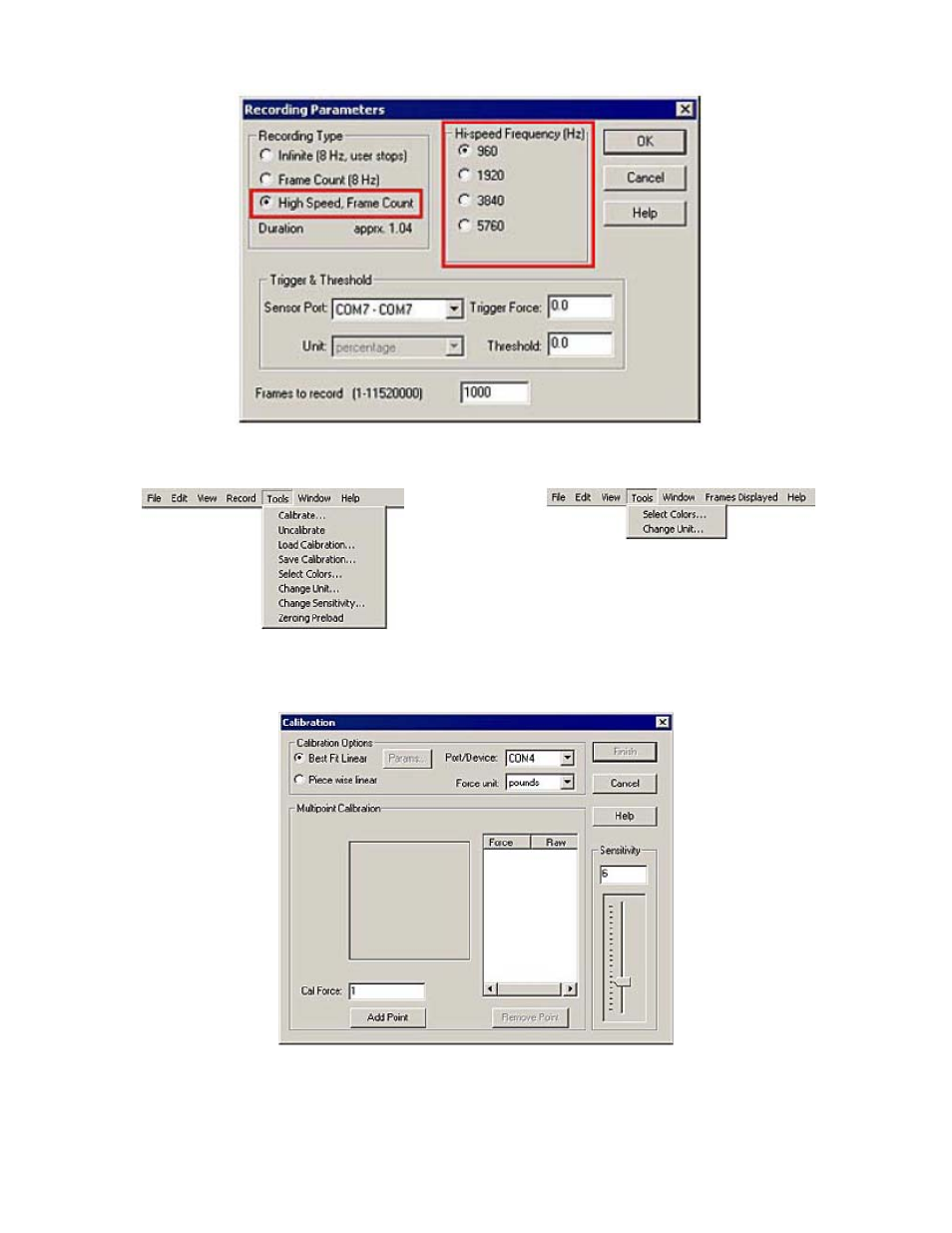

4.4.6 Tools Menu
Tools Menu when focus is on a Real-time Window: Tools Menu when focus is on a Movie Window:
Calibrate:
Opens the ELF Calibration dialog box, which enables you to calibrate the sensor and adjust the system
sensitivity. Refer to the Calibration section for the complete calibration procedure and a thorough description of the
process.
In the Calibration dialog box, the calibration load is entered under Cal Force by typing in the value, and selecting
the appropriate units (Grams, Kilograms, Newtons, Pounds). Clicking the OK button will then begin the calibration
process. The resulting calibration can be saved as a file by selecting Save Calibration under the same Tools
menu.
