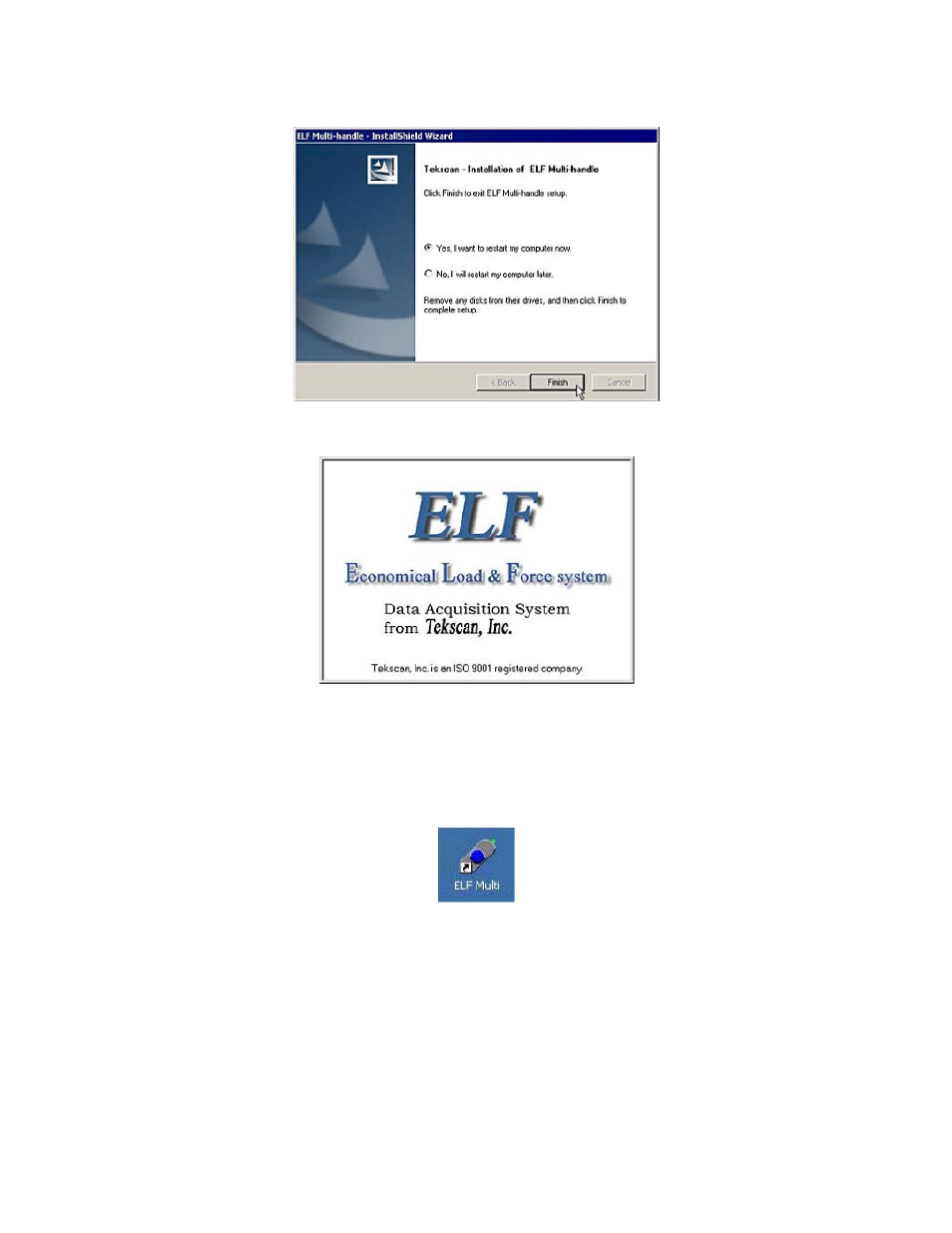

When the installation is completed, you will need to restart your system. Click the Finish button, and your system
will be automatically rebooted. You cannot start the ELF software without first restarting.
The ELF splash screen will be shown (below). This indicates the ELF software is successfully loaded on your
machine.
The installation process is now complete. When your computer is rebooted, the application can then be launched
by clicking on the Start button at the bottom left of the screen, and selecting Programs -> Tekscan -> ELF Multi.
You can also launch the program by double-clicking the ELF Multi icon on your desktop (provided you opted to
place an icon on your desktop during the installation procedure).
3.2 Hardware Installation
The ELF system hardware includes the Sensor Handle(s), ELF software, and the flexiForce sensor(s). If you are
using the Multi-Handle ELF system, refer to the instructions included. Connect one ELF handle to each USB port
you wish to use during testing.
The image below displays the USB connection for the ELF system:
