Toolbar:

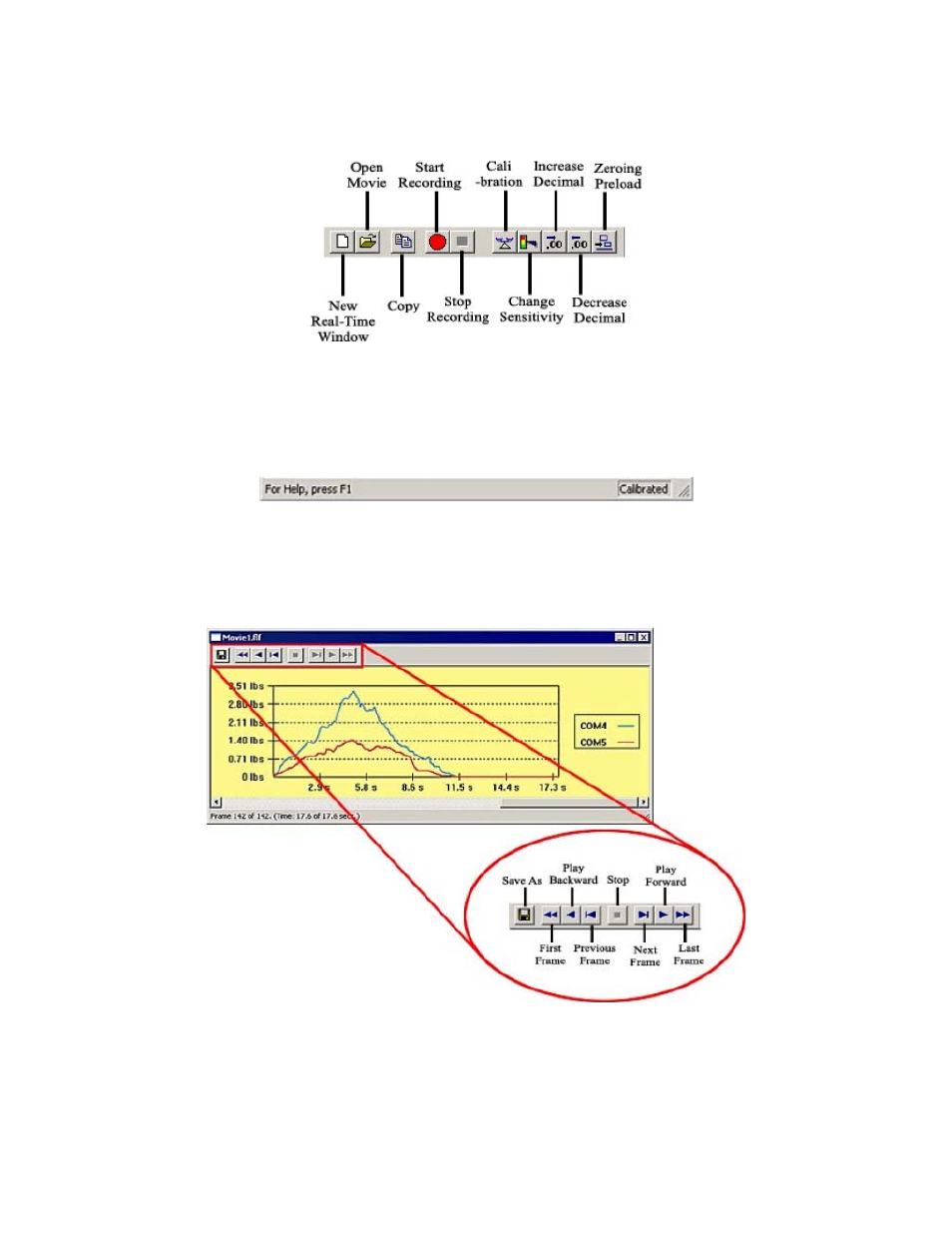

provides some of the same options as the Menu Bar, but with icons replacing drop-down menus. It is
located directly below the Menu Bar, at the top of the Main Window. Note that not all items in the Menu Bar have a
corresponding icon on the Toolbar.
Two icons on the Toolbar do not have corresponding pull-down menus. They are the Increase Decimal and
Decrease Decimal
buttons. When sensors have been calibrated, units of force will be shown. Clicking these
buttons will either increase or decrease the number of decimal places displayed by the software.
Main Status Bar
: will either say "For Help, Press F1," or will give a description of whichever Toolbar icon is under
the cursor. The Main Status Bar is located at the bottom of the Main Window.
Movie Window
The Movie Window displays a previously recorded movie. It consists of the display area, a scroll bar, the Movie
Toolbar
with playback controls, and the Movie Window Status Bar.
Movie Tool Bar:
This bar is located at the top of the Movie Window, and consists of the movie playback icons and
the Save As icon.
• Τhe Save As icon allows you to save the current movie file under a different filename.
The Playback icons control the movie playback functions. They are (from left to right in the Movie Toolbar):
• First Frame: Positions the recording at the beginning (first frame).
• Play Backward: Plays the recording in reverse.
• Previous Frame: Plays the recording in reverse one frame each time it is clicked.
