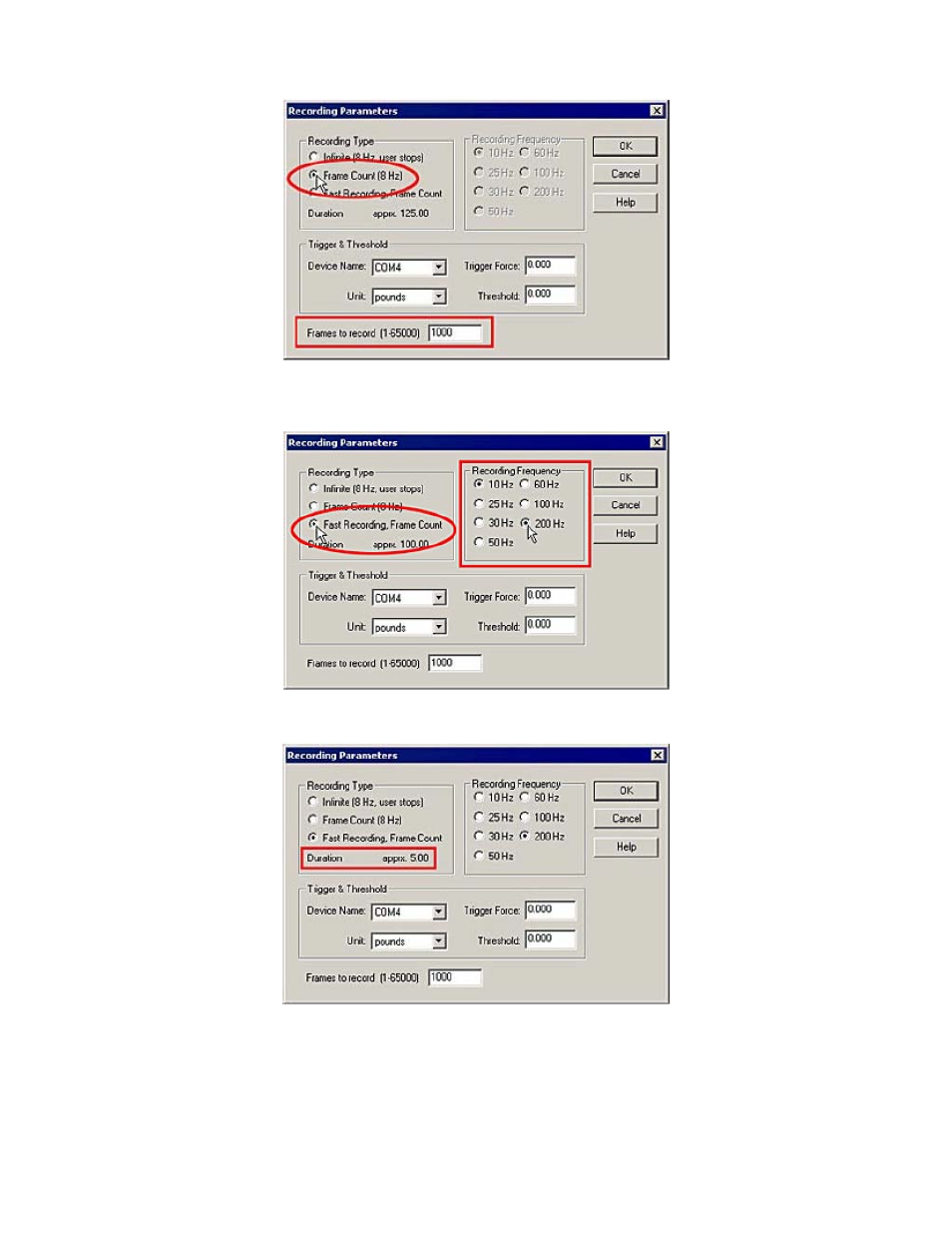

When Fast Recording, is selected, the "Frames to Record" may be entered, and the Recording Frequency (Hz)
may be selected to the right. In "Fast Recording" applications, recordings can be obtained at frequencies of 10, 25,
30, 50, 60, 100, and 200 Hz.
The Duration is listed below the Recording Type; it will either say "Until Stop" if Infinite is selected, or the
approximate duration (in seconds) the recording will take to complete if Frame Count is specified.
The Recording Parameters dialog box also allows you to "trigger" the start of a recording. If you enter a value in the
Trigger Force
field, and select the appropriate measurement units, recording will not begin until that force is
exerted on the sensor. Enter a zero in this field to disable "triggering". Only one Trigger Force value may be
entered, and will apply to all sensors being used for testing.
