CF10 32 6/24/08 Rev. H

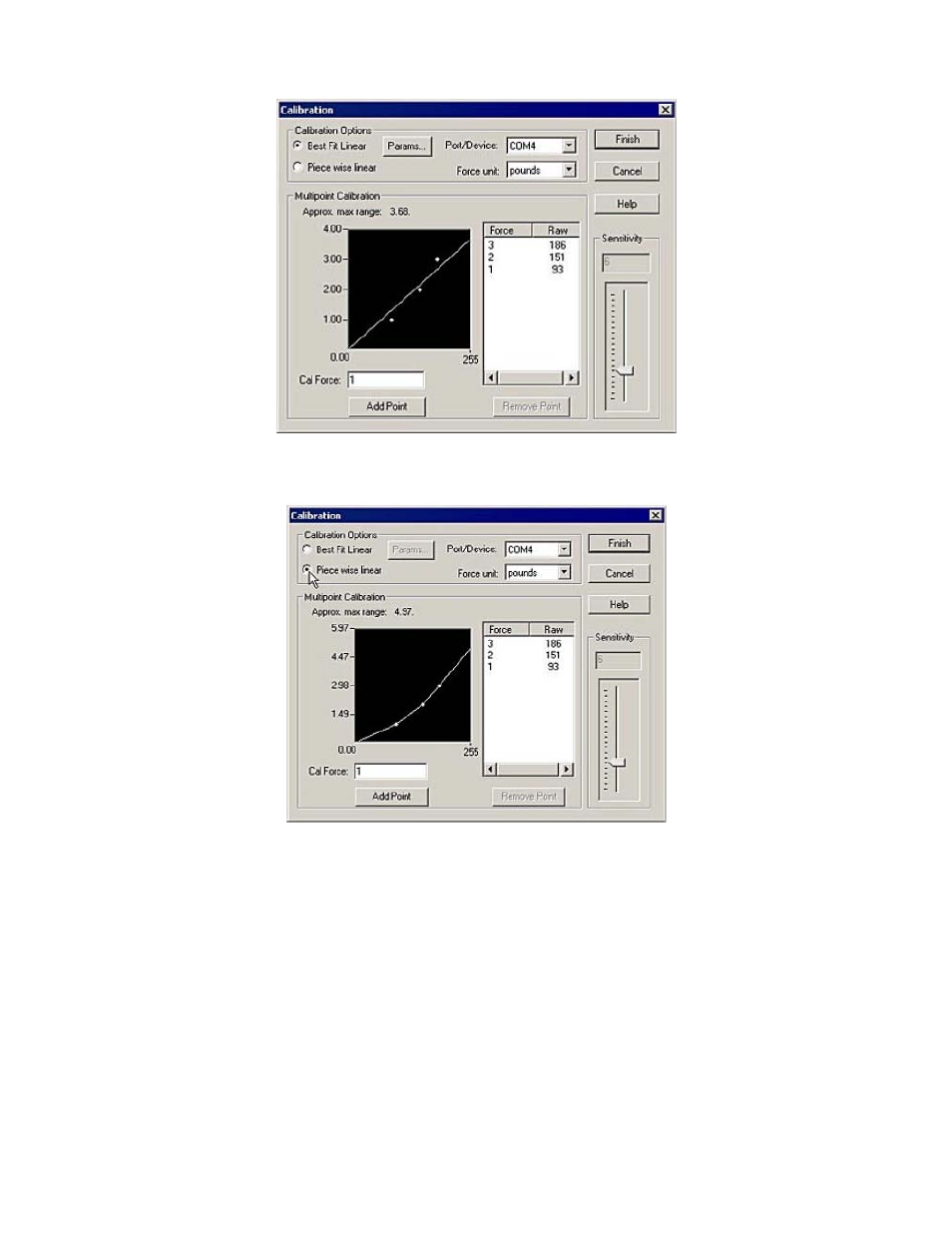

• Piece Wise Linear Calibration: This calibration connects each calibration point directly and interpolates between
the values.
NOTE: if you have a Multi-Handle ELF system, all handles must use the same type of calibration. Linear
and Best Fit cannot be mixed and matched.
The "Sensitivity" (or "Adjustable Gain") is also adjusted in the ELF Calibration dialog box. This adjustment sets the
data output range from the computer (0 to 100%) to the actual force range output from the system handle. In this
way, the usable force range of the sensor can be adjusted (up to the rated maximum force). "Sensitivity" settings
are saved between sessions, and are included with calibration files.
