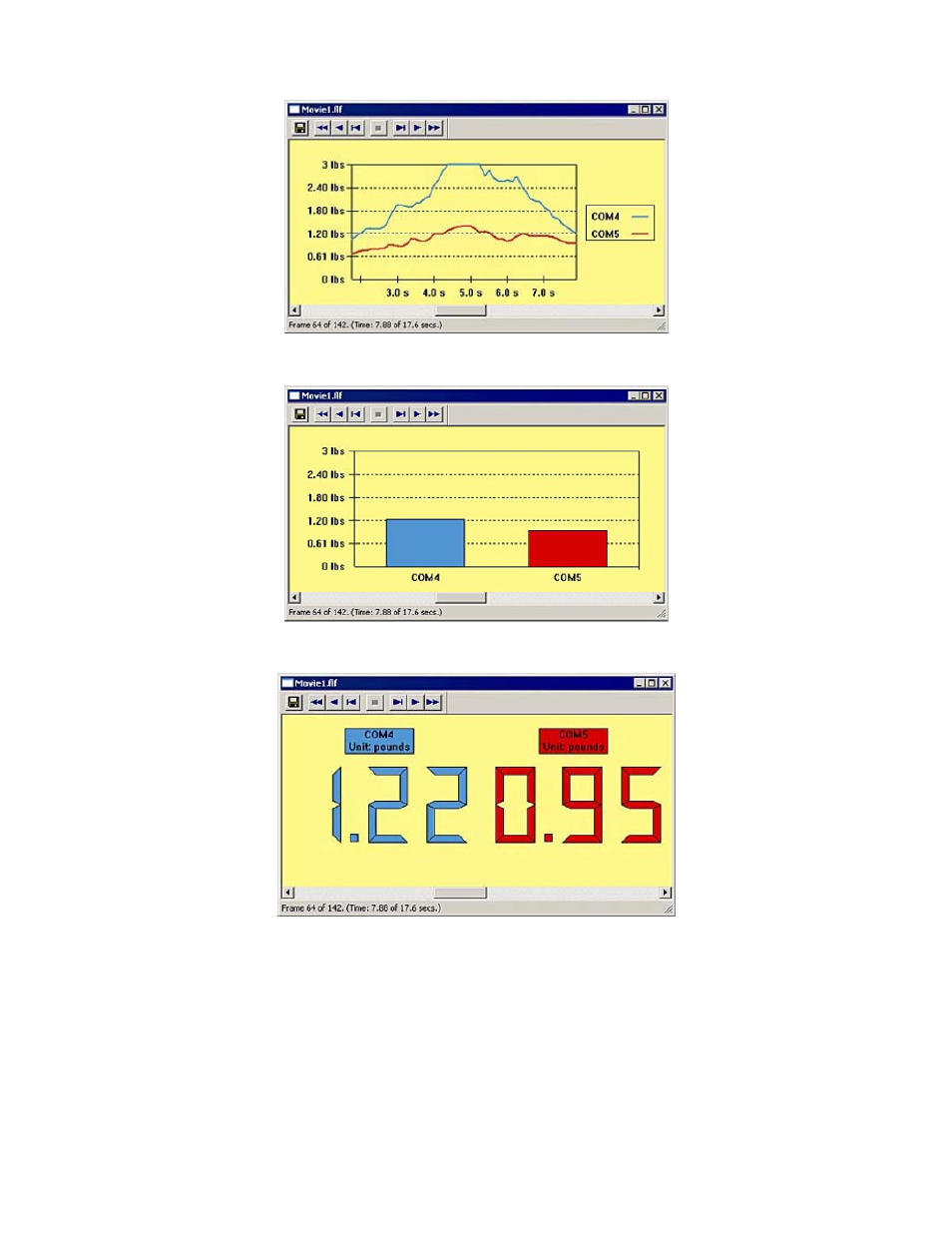

Column:

displays each COM port individually, with force value displayed on the Y-Axis. Each column is color-

coded to indicate the individual COM ports. As time elapses, the columns indicate changes in force.

Number:

displays each COM port as numerical values. Each numerical value is color coded to indicate the

individual COM ports. As time elapses, the numbers change to indicate changes in force.

Toolbar:

This item is used to display or hide the Movie and Main Toolbars. These toolbars can be toggled by

clicking this menu item on and off. If a Real-time Window is active, this menu item affects the Main Toolbar. If a
Movie window is active, this menu item affects the Movie Toolbar.

Status Bar:

This item is used to display or hide the Movie and Main Status Bars. These status bars can be toggled

by clicking this menu item on and off. If a Real-time window is active, this menu item affects the Main Status Bar. If
a Movie window is active, this menu item affects the Movie Status Bar.
